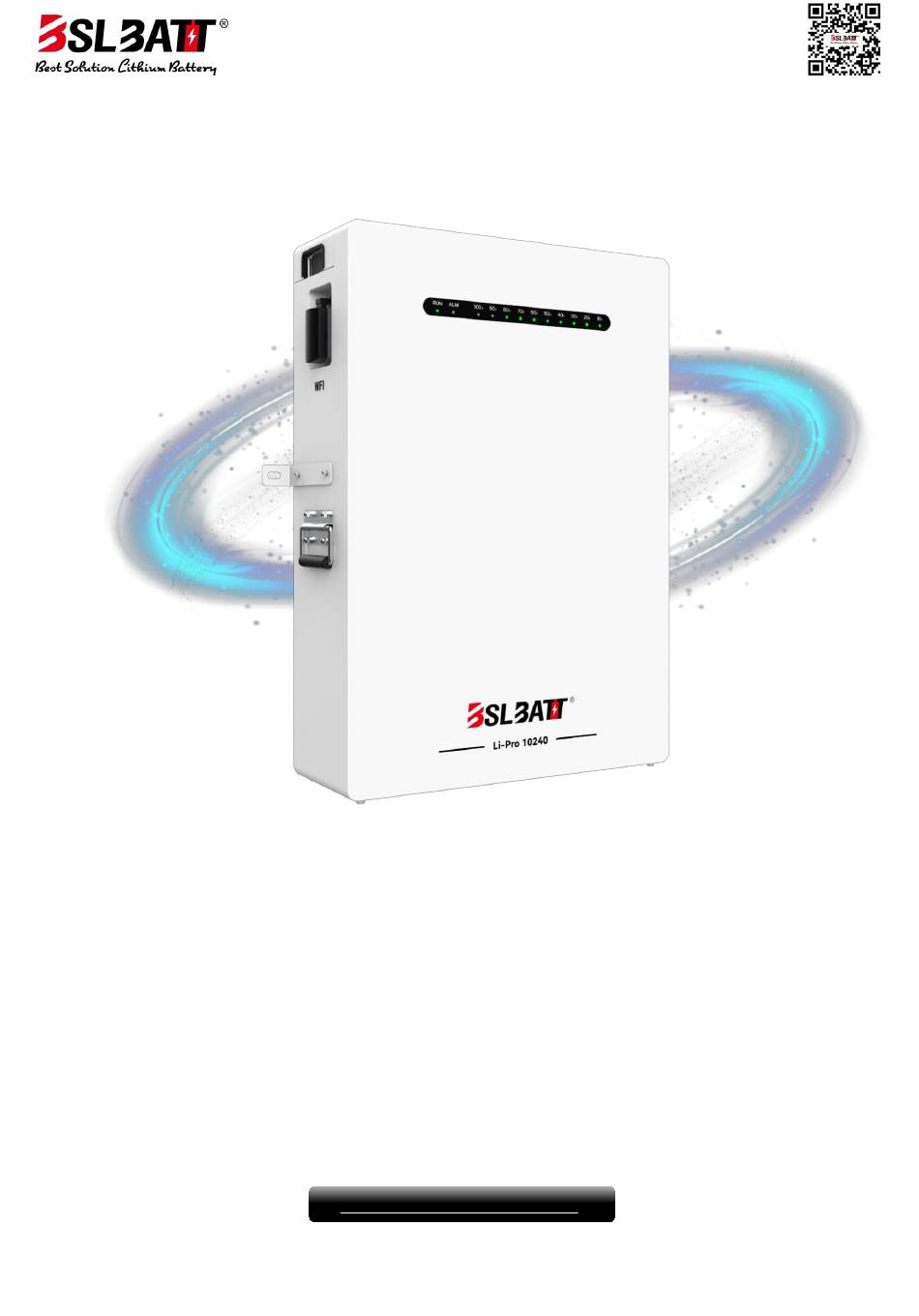

- Page 1 Li-PRO Series User Manual Version 1.0 www.bsl-battery.com...
- Page 2 Document History Date Version Chapter Description Author V1.0 Peng 2024/6/4 First Version.
- Page 3 Safety Precautions ____________________________________________________________ 1 General Safety ___________________________________________________________________ 1 General Safety Precautions _________________________________________________________1 Battery Handling Guide ____________________________________________________________2 System Application Introduction _________________________________________________ 3 PV Self-use Surplus Power to Grid ___________________________________________________ 3 Peak Shaving and Valley Filling ______________________________________________________3 Standby Power Supply ____________________________________________________________ 3 Product Specification __________________________________________________________ 4 System Description _______________________________________________________________ 4 Appearance, Weight and Dimensions ________________________________________________ 4...
- Page 4 1 Safety Precautions 1.1 General Safety The series rechargeable battery is well designed and tested to meet all applicable states and international safety standards. However, like all electrical and electronic equipment, safety precautions must be observed and followed during the installation of the rechargeable battery to reduce the risk of personal injury and to ensure a safe installation.
- Page 5 Battery pack must be serviced by qualified personal. Ensure that the grounding cable is connected before handling the battery pack. 1.3 Battery Handling Guide DO THINGS: DO keep the battery pack away from flammables materials, heat sources, and water sources. DO keep the battery pack out of reach of children and animals.
- Page 6 2 System Application Introduction This product is a household energy storage battery pack. The system is composed of a 5.1kwh/10.5kwh lithium iron phosphate battery pack. This product can be used in conjunction with electricity, so that electricity consumption can be adjusted. This product supports a variety of application modes, such as PV self-use surplus power to grid, peak shaving and valley filling, standby power supply, etc.
- Page 7 will be interrupted. If the energy storage system is installed, the user can still enjoy sufficient power guarantee under this situation. Figure 1．System Connection Diagram 3 Product Specification 3.1 System Description The battery system consists of one or more rechargeable batteries. A battery pack is a type of electrical battery which can charge or discharge loads.
- Page 8 Table 2-1 Description of appearance Item Description Electrical Including BAT+/BAT- ports, communication port, BMS port. Please connection area refer to “Electrical Connection Area” for details. Indicator panel Provide a human-readable indication of an instrument signal. For details, please refer to “Indicator Panel”. DC Circuit Breaker Including an air switch for automatically protection when current over limitation and a metal switch for power on the BMS.
- Page 9 3.3 Battery Parameters Item Li-PRO 5120 Li-PRO 10547 51.2V Nominal Voltage Rated Capacity (Ah) Cell Model (LFP-3.2V) 100Ah 206Ah Pack configuration 16S1P 16S1P 5120 10547 Rate power (Wh) Charging Voltage 54/54.6V Float charge Voltage 54.5V recommend/max 0.2C/0.5C Discharge Cut-off Voltage Recommended Charge Current 100A 10 Recommended Discharge Current...
- Page 10 3.5 System Drawing Li-PRO 5120 Li-PR0 10240...
- Page 11 Product size :450*171.5*660mm Product size :530*215.5*760mm 3.6 Interface Description Figure 2 Table1.Battery Pack Front Panel Port Definition...
- Page 12 Illustration Silk-screen Remark Battery positive post positive output RS485 communication with PCS RS485 Port RS485 equipment CAN bus port CAN bus and inverter connection ports communication port for computer RS232 port RS232 monitoring RS485A port RS485A battery paralleling communication port RS485B port RS485B battery paralleling communication port...
- Page 13 Flash Flash ● Alarm According to the electricity indicator ● (Flashing once every 2 seconds) Flash Flash ● ● Protection Invalid Normal Bright off off off off ● 4 Preparation before Installation 4.1 Selection of Installation Location The installation location selected for the rechargeable battery is quite critical in the aspect of the guarantee of machine safety, service life and performance.
- Page 14 4.3 Installation Carrier Requirement The mounting location must be suitable for the weight and dimensions of the product and the support surface for installation must be made of a non-flammable material: Solid brick/concrete. Either floor mounting or wall mounting, the bearing capacity of the area to place or install a battery pack must be over 200 kg.
- Page 15 Figure: Clearance requirement about floor mounting Figure: Clearance requirement about wall mounting 4.5 Tools Requirement Installation tools include but are not limited to the following recommended ones. If...
- Page 16 necessary, use other auxiliary tools on site. 4.6 Installation steps Unpacking: The rechargeable battery undergoes 100% testing and inspection before shipping from the manufacturing facility. However, transport damage may still occur. Before unpacking the rechargeable battery, please verify that the model and outer packing materials for damage, such as holes and cracks.
- Page 17 Figure: Unpacking the battery pack Be careful when dealing with all package materials which may be reused for storage and relocation of the rechargeable battery in the future. Upon opening the package, check whether the appearance of the rechargeable battery is damaged or lack of accessories.
- Page 18 Figure: Installation options...
- Page 19 4.8 Installation Procedure Note: when a single unit is used, the inverter uses the battery as the main machine to communicate; when multiple batteries are used in parallel, the batteries inside are connected in parallel through the RS485B hardware interface, RS485A/CANBUS communicates with the inverter.
- Page 20 Figure 8 6 Appendix2 Multi Inverter protocol support: Protocol Type Inverter Pylon PYLON CAN LV V1.3-2019.03.01 DEYE/Sunsynk PYLON CAN LV V1.3-2019.03.01 Growatt Growatt CAN LV V1.09-2020.10.22 Victron Victron CAN 2021.01.07 Luxpower Luxpowertek CAN V1.0-2020.02.11 SMA CAN V2.0 GoodWe Inverter Goodwe V1.7-2020.02.28...
- Page 21 Studer STUDER CAN V1.02-2018.06.14 Sofar SofarSolar CAN inverter V6 Ginlong/Solis GINLONG CAN LV V1.0-2019.12.28 TBB CAN V1.05-2021.04.20 TBB_LITHIUM TBB CAN V1.1-2021.10.21 Daneng DANENG CAN V10-2022.10.10 Aiswei AISWEI CAN V1.0 SAJ CAN V1.9-2022.06.30 MUST MUST CAN V2.0.2-2021.06.02 Megarevo PYLON CAN LV V1.3-2019.03.01 Afore Hybrid Inverter...
- Page 22 WOW RS485 Modbus V1.3-2017.06.27 Sorotec Sorotec RS485 Inverter V1.22-2017.11.28 HYPONTECH RS485 Modbus Hypon V2.0-2023.06.29 Afore RS485 Hybrid Inverter Afore V1.02-2022.03.07 Default setting: CANBUS - Victron, RS485-DEYE. Remark: - Please ask your sales team to provide password for host computer software administration enter. - Different inverters the pin assignment is not the same, please contact inverter supplier for detailed RJ45 cables of pin assignment.
- Page 24 7 Appendix3 7.1 Abnormal Situation Addressing 1.What if the battery pack does not work properly after power on? A: The most direct way is to connect to the upper computer, through the upper computer to find the fault phenomenon, causes can be roughly analyzed from the upper computer interface prompt alarm, protection, fault, and other information, it can also provide necessary reference for further testing.
- Page 25 alarm can be automatically cleared. After the battery is connected to the system and shows over-current protection or short circuit protection. This is not a problem with the battery pack, but the capacity load of the electrical equipment is too large. Charging can remove the alarm or extend the battery pack pre-charge circuit delay time.
- Page 26 2003, BSLBATT provides electric energy more efficiently and reliably as best solution. Powerwall charges by day and powers at night for residential solar system with compact, affordable, and easy installation features. BSLBATT Battery - Solar inquiry@bsl-battery.com +86-752 2819 469...
