Abicor Binzel xFUME PRO Original Operating Instructions
Mig/mag fume extraction torch
Hide thumbs
Also See for xFUME PRO:
- Original operating instructions (32 pages) ,
- Original operating instructions (188 pages)
Subscribe to Our Youtube Channel
Related Manuals for Abicor Binzel xFUME PRO
Summary of Contents for Abicor Binzel xFUME PRO

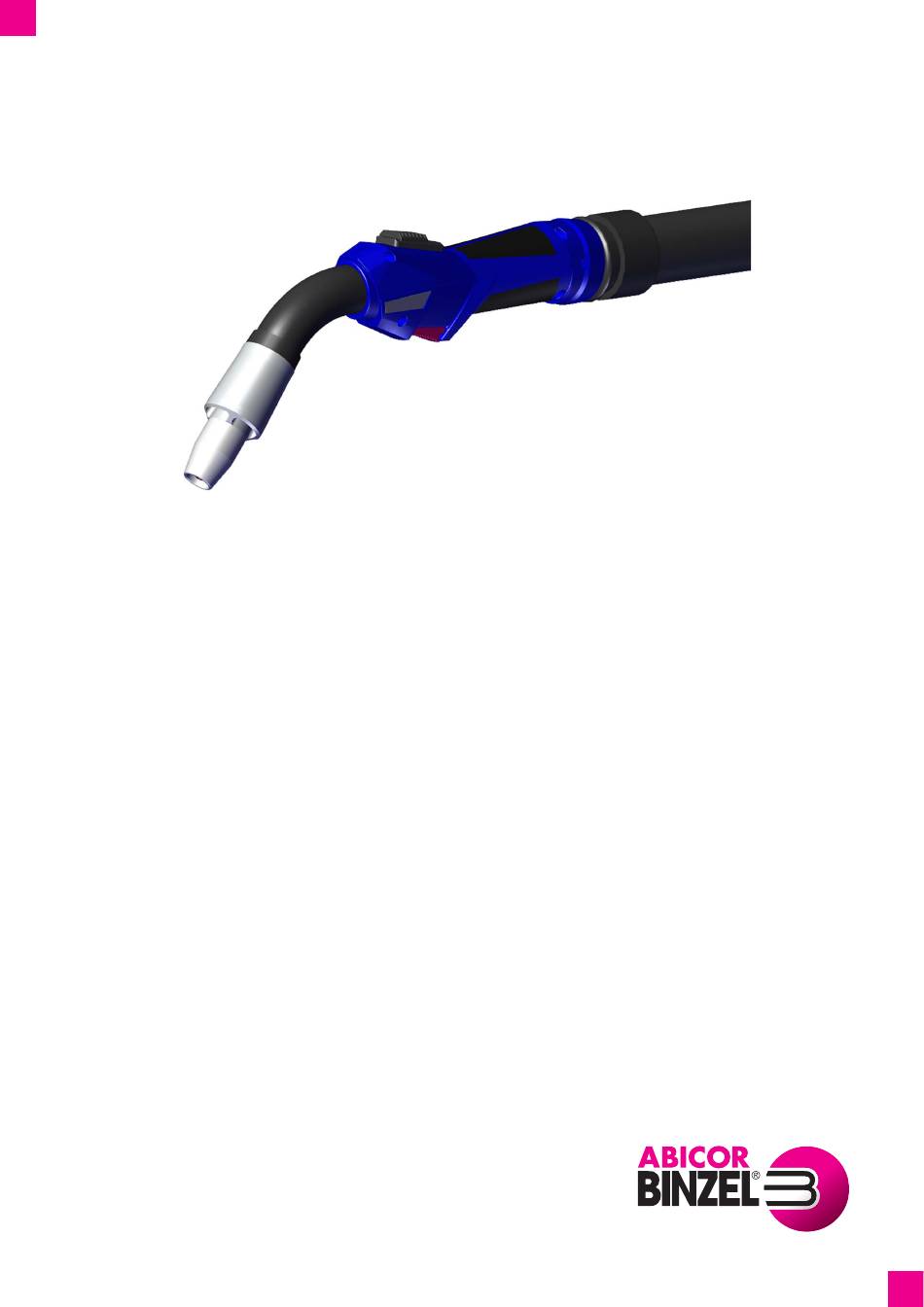

- Page 1 T E C H N O L O G Y F O R T H E W E L D E R ´ S W O R L D . Original operating instructions ® xFUME EN MIG/MAG fume extraction torch www.binzel-abicor.com...
- Page 2 ® xFUME 40°...
- Page 3 ® xFUME 40° EN Wear parts Gas nozzle Suction nozzle Tip adaptor Torch neck Contact tip Spatter protector...
- Page 4 PRO devices only. They may be operated using original MIG/MAG welding torches for arc welding equipment used in metal inert ABICOR BINZEL spare parts only. The figures show the xFUME PRO 501 gas welding. The devices comply with EN 60974-7 and are not devices that version of the fume extraction torch.
- Page 5 ® xFUME 2 Safety Safety instructions for electrical components ► Check electric tools for damage and ensure that they function properly ► Protect yourself from electric shock by using insulating mats and wearing and in accordance with their designated use. dry clothing.
- Page 6 ® 3 Product description xFUME Emergency information ► In the event of an emergency, immediately disconnect the following ► Consult the documentation for the welding components. supplies: electrical power supply, compressed air supply, coolant supply and shielding gas supply. Product description Technical data Tab.
- Page 7 ► Clean soiled components immediately. ► Replace damaged components immediately. ► Damaged, deformed or worn components must only be replaced by an electrician who has been trained by ABICOR BINZEL. Preparing the welding torch for cable assembly installation 1 Switch off the power source and unplug the power plug.
- Page 8 ► Use only original ABICOR BINZEL wear parts. ► Use the ABICOR BINZEL wrench for attaching and disconnecting wear parts. ► Ensure that wear parts specific to the welding torch are correctly assigned. ► Ensure that the parts are installed in the correct order.
- Page 9 7 Use the ABICOR BINZEL cutter to cut off the PA liner at the marking and 3 At the central plug: unscrew the nut. Remove the PA liner, replace it with deburr the edge.
- Page 10 ® Notes xFUME Notes EN - 10...
- Page 11 ® xFUME Notes Notes EN - 11...
- Page 12 T E C H N O L O G Y F O R T H E W E L D E R ´ S W O R L D . Alexander Binzel Schweisstechnik GmbH & Co. KG Kiesacker • 35418 Buseck • GERMANY T +49 64 08 / 59–0 F +49 64 08 / 59–191 info@binzel-abicor.com...
