Kiwi Camping Takahe 6 Pitching Instructions

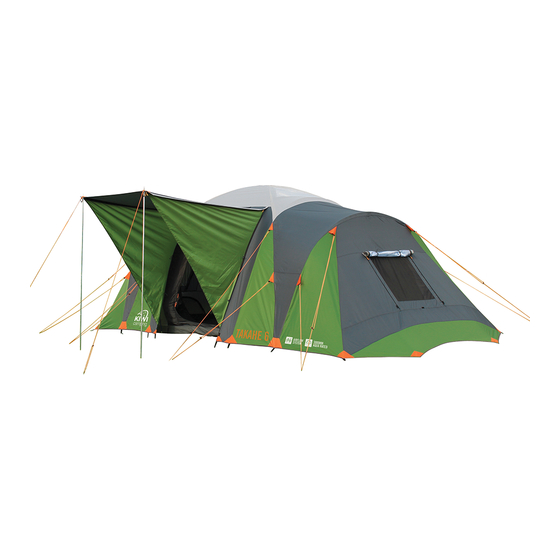

Takahe 6 Family Tent
Model No. KC072-106

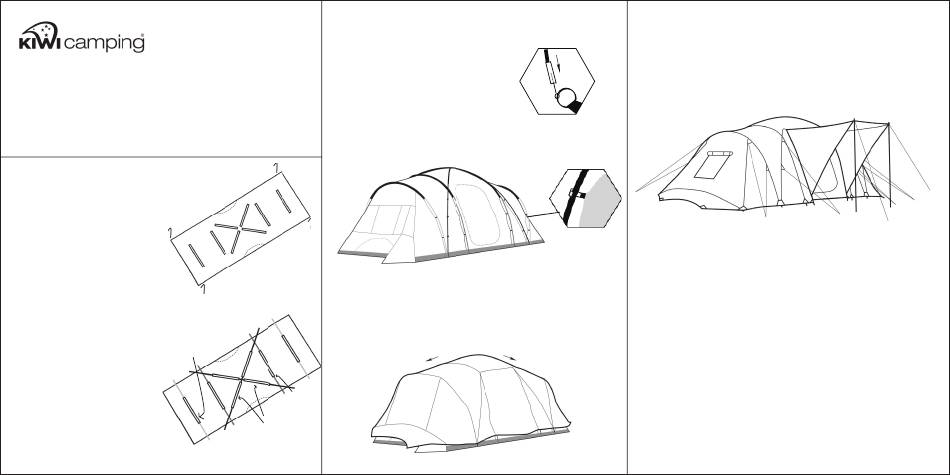

PITCHING INSTRUCTIONS
Your tent includes:
46 x steel pegs
18 x ropes
2 x BLACK fibreglass poles (6550mm x 12.7mm)
2 x GREEN fibreglass poles (5100mm x 11mm)
2 x GREY fibreglass poles (4820mm x 11mm)
2 x silver PORCH poles (2000mm x 16mm)
1. Select a dry, level site and
clear the ground of any sharp
objects. Remove the tent from
its carry bag, untie fabric ties
and unroll the tent.
2. Open pole bag and remove
the pegs and two GREEN,
two GREY and two BLACK
fibreglass poles. Assemble
these poles now.
3. Spread out the floor of the inner
tent and peg out the four main
corners first, ensuring that the
tent is pulled taut and square.
Unzip and open the doors to
Grey
Pole
make erecting the tent easier.
Pitch the inner so it is in line
with the wind, never side on.
4. Lay out the poles to match the
coloured trim on the power
mesh pole sleeves. Thread
the BLACK poles through the
sleeves in the middle room.
Fit into the pin and rings fitting on the floor and assemble the
room (this will take 2 people). The centre room is now up.
5. Moving towards the bedroom,
repeat this for the two GREEN
poles followed by the GREY poles.
Your inner is now erected.
6. Making sure the tent is sitting
evenly, attach the speed-clips onto
the corresponding poles and peg
out the remaining pegging points
on the inner.
- To make sure the
tent stays in place,
insert the pegs into
the ground at a 45° 7. Carefully pull the fly over the inner and peg out the 4 corners.
angle.
Opening both side doors reach under the fly and attach any
Velcro or fabric ties to centralize the fly. This also helps the
tent's performance in the wind. Once this is done, zip the doors
up and finish pegging out the fly.
Green
Pole
Black
Poles
8. Finally, rope out the guy ropes and fine tune the fly so it remains
taut and positioned correctly over the tent.
9. When pegging out the silver PORCH poles, make sure the ropes
are at a 45° angle to pull the flap evenly. In light rain you can
remove the middle section to allow any water build up to run off.
In heavy rain you may have to pull the flap down to stop water
build up.
REVERSE THE PROCEDURE TO LOWER THE TENT
PACKING INSTRUCTIONS
Pack the poles and pegs into their bags, place into their separate
frame bag. Evenly layout the fly inside the tent inner (this is best
done when the inner is still pitched) leaving all doors and windows
open. Fold the inner tent floor from each end to the centre and fold
the front room over the inner from front to back. Fold again to the
width of the tent bag. Roll from front to back, forcing all of the air
out the back door. Roll into the tent bag provided.
