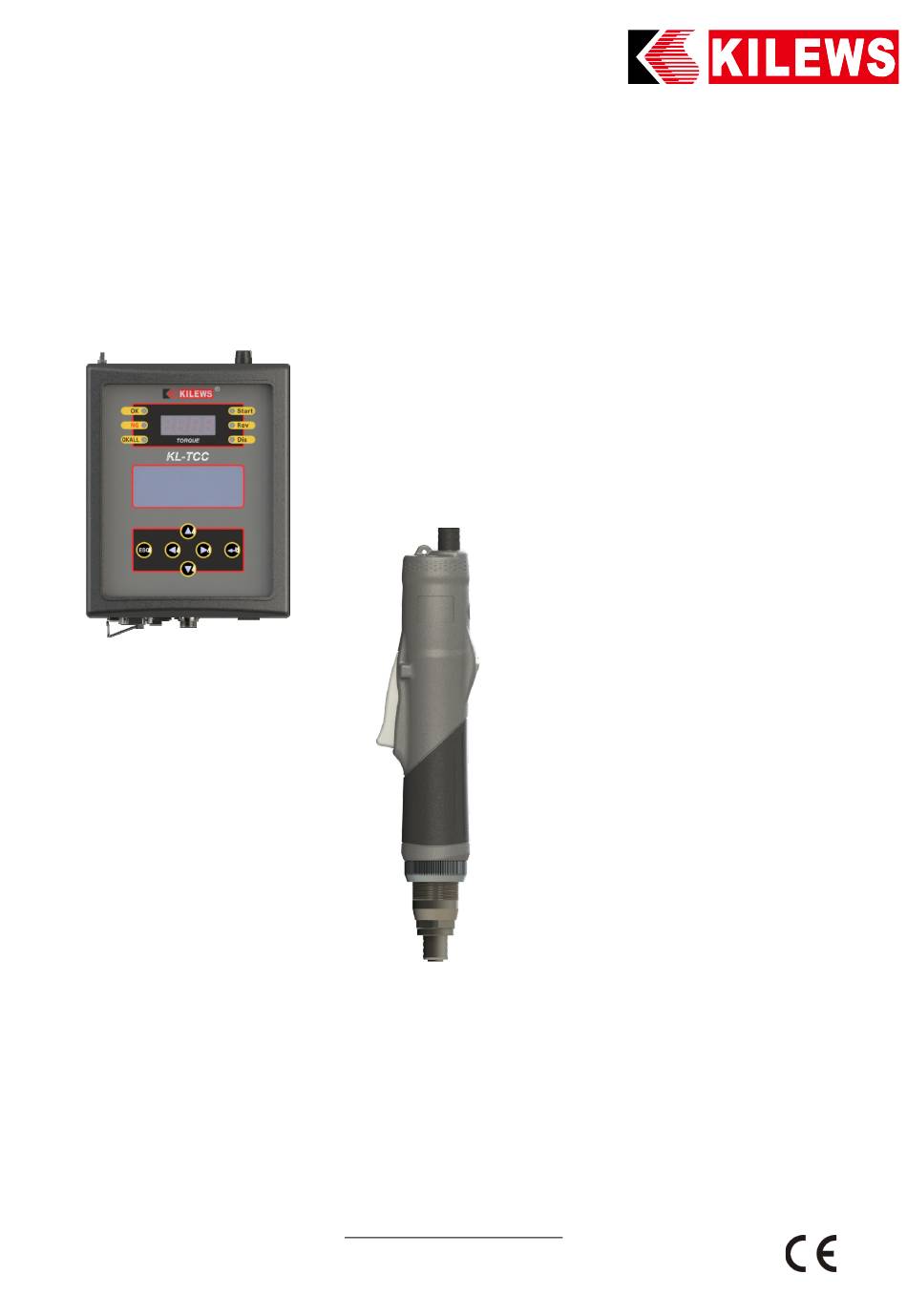

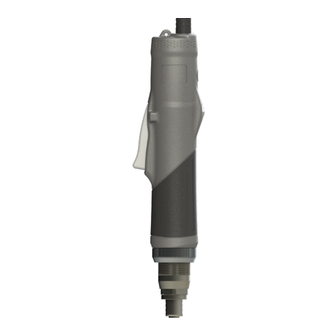

- Page 1 OPERATION AND MAINTENANCE MANUAL SGT-CC612 SGT-CC620 SGT-CC630F SGT-CC650 SGT-CC670 Automatic Non-Carbon-Brush Series KILEWS INDUSTRIAL CO., LTD. https://www.kilews.com.tw Y2F231A-E-007...
- Page 2 NOTICE Metal Assembly sensor screwdriver is designed for installing threaded fasteners in light industrial and appliance manufacturing applications. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. WARNING Important safety information enclosed.
- Page 3 Important Safety Rules WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injury. The term “power tool” in all of the warning listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool.
- Page 4 d) Store idle power tools out of reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Do not let visitors touch the tool or extension cord. All visitors should be kept away from work area. e) Maintain power tools.
- Page 5 Grounding Instructions 1、This tool should be grounded while in use to protect the operator from electric shock. NOTICE! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. This tool is equipped with grounding conductors.
- Page 6 Operations Cautions 1) Do not allow chemicals such as acetone, benzene, thinner, trichloroethylene ketone, or other similar chemicals to come in contact with the current control screwdriver housing as damage will result. 2) Use the current control screwdriver carefully, do not drop or be impacted, it is best to use a balancer to lift it, and set it on the auxiliary arm for operation.
- Page 7 Proceed as follows: Stop the driver first and adjust it with the KL-TCC controller. CAUTION 1. The use of other than genuine KILEWS replacement parts may Result in decreased tool performance and increased maintenance and may invalidate all warranties. 2. All repairs and maintenance of this tool and its word must be performed by an authorized service center.
- Page 8 Specifications MODEL SGT-CC612 SGT-CC620 SGT-CC630F SGT-CC650 SGT-CC670 Input voltage (DC) DC40V Power Consumption (N.m) 0.3-1.2 0.6-2 1.5-5 Torque (kgf.cm) 3.06-12.24 6.12-20.40 10.2-30.60 15.30-51.00 20.40-71.40 (Lbf.in) 2.66-10.62 5.31-17.70 8.85-26.55 13.28-44.25 17.70-61.96 Repeatable Torque Accuracy ±5% Unloaded Rotation Speed ±3% 100-1000 100-1000...
