Introduction
Features

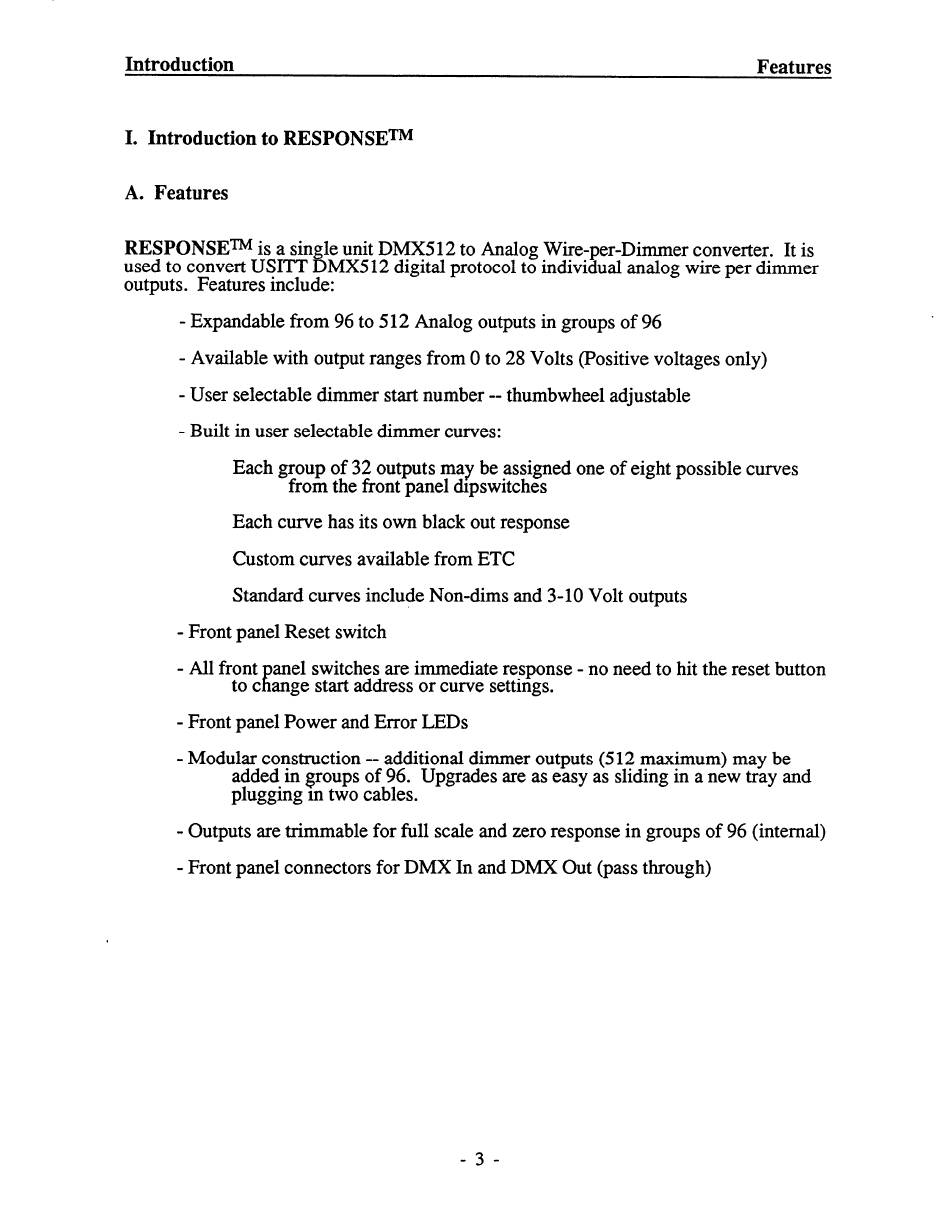

I. Introduction to RESPONSE~
A. Features
RESPONSE~ is a single unit DMX51 2 to Analog Wire-per-Dimmer converter. It is
used to convertUSITTDMX512 digital protocol to individual analog wire per dimmer
outputs. Features include:
- Expandable from 96 to 512 Analog outputs in groups of 96
- Available with output ranges from Oto 28 Volts (Positive voltages only)
- User selectable dimmer start number -- thumbwheel adjustable
- Built in user selectable dimmer curves:
Each group of 32 outputs maybe assigned one of eight possible curves
from the front panel chpswitches
Each curve has its own black out response
Custom curves available from ETC
Standard curves include Non-dims and 3-10 Volt outputs
- Front panel Reset switch
- All front anel switches are immediate response -no need to hit the reset button
i
to c ange start address or curve settings.
- Front panel Power and Enor LEDs
- Modular construction -- additional dimmer outputs (512 maximum) may be
added in ~oups of 96. Upgrades are as easy as sliding in anew tray and
plugging m two cables.
- Outputs are trimmable for fill scale and zero response in groups of 96 (internal)
- Front panel connectors for DMX In and DMX Out (pass through)
-3-
