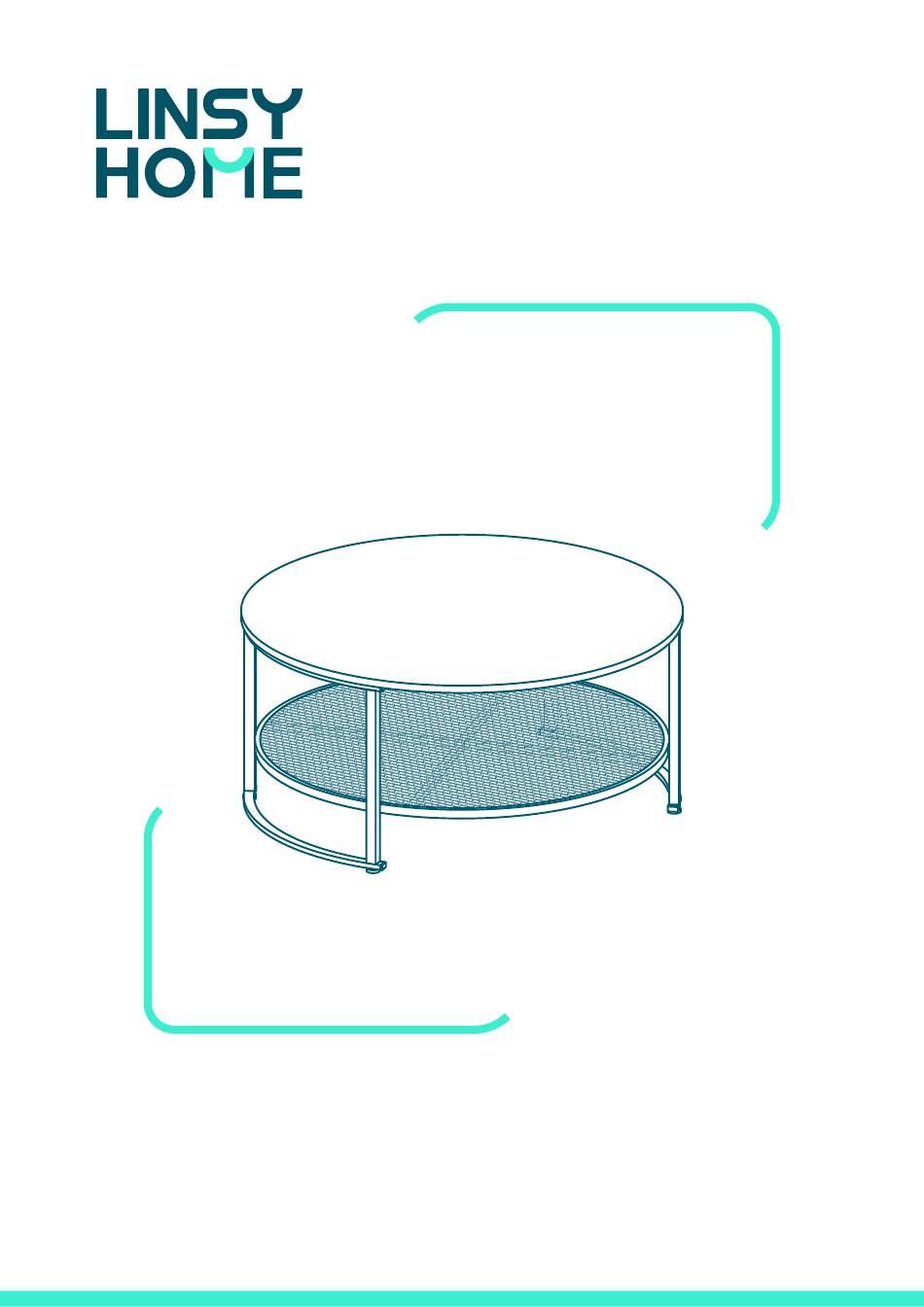

- Page 1 LH022L6 PRODUCT SPECIFICATION：33.86*15.87inch...
- Page 3 Safety And Care Advice Important – Please read these instructions fully before starting assembly. Please check if all the components and tools listed Please assemble the product as close toits on pages 3 - 4 are received. final position as possible. Please remove all fittings from the plastic bags and Do not place furniture directly in front of separate them into homologous groups.
-
Page 4: Parts List
Components Please check if all the pieces listed below are received. Parts list Number Description Specifications Quantity Material Arc bottom tube 529*108*10 Iron tube Arc top tube 529*108*10 Iron tube Stand tube 360*20*20 Iron tube Round panel 860*15 board Laminate board 806*18 Iron tube+mesh M6 Adjusting feet x4pcs... - Page 5 Assembly Instructions Please use the screws correctly, otherwise the product will be seriously damaged! Step 1 The arc bottom tube and the Stand tube shallbe connected with the feet (A), the arc top tube and the stand tube shall be connected with the screw (B). Note: the concave surface of arc top tube 2 is upward.
- Page 6 Assembly Instructions Please use the screws correctly, otherwise the product will be seriously damaged! Step 2 Connect the iron tube installed in the first step with the round panel with screw (C).
- Page 7 Assembly Instructions Please use the screws correctly, otherwise the product will be seriously damaged! Step 3 Connect the laminate board with the iron tube with screw (D).
- Page 8 Assembly Instructions Please use the screws correctly, otherwise the product will be seriously damaged! Step 4 Installation complete.
