EN - INSTRUCTIONS FOR USE
E-ACTV500
Last update: V1 - 13/11/2023
+
+
<120kg
>1,50m/
+14
4ft 11in
<2m/
<264.5lbs
6ft 6in
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the E-ACTV500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Decathlon E-ACTV500

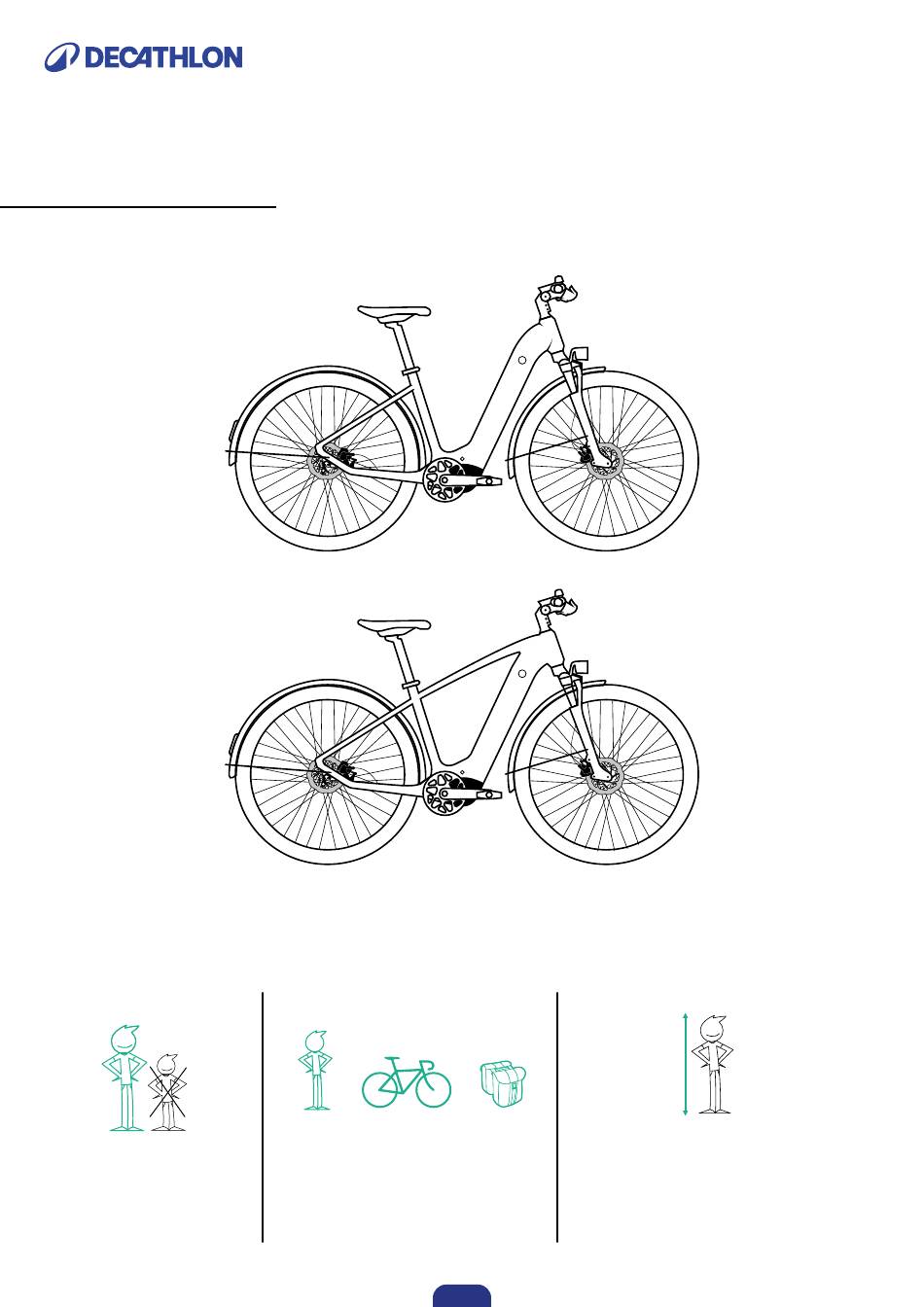

  • Page 1 EN - INSTRUCTIONS FOR USE E-ACTV500 Last update: V1 - 13/11/2023 <120kg >1,50m/ 4ft 11in <2m/ <264.5lbs 6ft 6in...
  • Page 2 CONTENTS INTRODUCTION ..........................3 SAFETY INFORMATION ........................3 HOW TO GET THE MOST FROM YOUR E-BIKE ................4 YOUR PRODUCT ..........................4 ASSEMBLY ............................5 BEFORE EACH USE .......................... 9 GENERAL OPERATION ........................10 ELECTRIC OPERATION ........................10 CHARGING ............................13 ERROR CODES ..........................
  • Page 3 Seek medical assistance. If the battery leaks, put on gloves and place the battery in a plastic bag. Return the battery to your Decathlon store immediately. Chemicals can irritate your skin and stain your belongings.
  • Page 4 HOW TO GET THE MOST FROM YOUR E-BIKE < 2 bar > 2- 5 bars The bike will operate better and more Under-inflated tyres are more prone to efficiently with tyres inflated between punctures. 2 and 5 bar. +/- 20° +/- 5°...
  • Page 5 To ensure the handlebars, stem, seat, seat post and wheels are correctly attached, it’s best to use the appropriate tools and tighten each component to its specific torque value (in Nm). Please follow the bicycle assembly instructions to avoid any safety risks. If you have a problem, contact a Decathlon workshop to have your bike checked. BOX CONTENTS...
  • Page 6 FITTING THE FRONT WHEEL: 1. Remove the disc shim. 4. Place the wheel in the fork, keeping it straight. 2. Get the wheel out of the box. 5. Screw the axle clockwise while holding the other end. 3. Place the axle in the wheel. 6.
  • Page 7 10. Unscrew the side screw of the stem. 13. Loosen the 4 screws at the front of the stem. 11. Gradually turn the hanger up and down to release and straighten it. 14. Straighten the handlebars so that they are horizontal, with the brakes fa- cing forward.
  • Page 8 PEDAL ASSEMBLY: The bike is equipped with a right pedal (marked R or Right) and a left pedal (marked L or Left). Before installing the pedals on the bike, put some grease on the threads of the pedals. Screw the right pedal clockwise onto the right crank (chain side). The left pedal is screwed anti-clockwise onto the left crank. TORQUE SETTINGS : Component Tightening torques...
  • Page 9 For your safety, check the front and rear brakes before each use of your bike. They must be in perfect condition. Check all brake mounting components regularly. Disc brakes should be checked regularly. In the event of a brake fluid leak, action is required. Get in touch with a Decathlon workshop.
  • Page 10 ELECTRIC OPERATION CONTROLS General controls 17:30 km/h speed trip Assistance mode : «1» mode is the default assistance mode when the screen is switched on. The motor power adapts according to the selected mode . The motor power according to the modes is defined below: Mode + 70%...
  • Page 11 NAVIGATING THE ASSISTANCE MODES 1’’ 1’’ 17:30 17:30 km/h km/h speed speed trip trip 1234 1234 1’’ 1’’ +70% +100% 1’’ 17:30 17:30 km/h km/h speed speed trip trip 1234 1234 1’’ +150% +280% LIGHTING ACTIVATION/DEACTIVATION 17:30 17:30 00:00 17:30 LIGHTS LIGHTS km/h...
  • Page 12 INFORMATION SELECTION 00:00 00:00 00:00 km/h km/h km/h speed speed speed U03 FAILED 1’’ 1’’ 1’’ trip time cadence remaining range 00:00:00 00:00 00:00 00:00 electric power km/h km/h speed speed U03 FAILED U03 FAILED U03 FAILED 1’’ 1’’ 1’’ electric power user power user power...
  • Page 13 ADJUSTMENTS AND DIAGNOSTICS 00:00 SETTINGS km/h speed U03 FAILED 3’ ’ trip 00000 LANGUAGES SETTINGS SLEEP MODE DUTCH LANGUAGES ENGLISH 1’ ’ TIME FRENCH TIME SETTINGS LANGUAGES TIME 1’ ’ DATE DATE SETTINGS TIME DATE 1’ ’ UNITS UNITS SETTINGS DONE! DATE METRIC...
  • Page 14 Output: 42 V Capacity : 504Wh Do not use a different charger from the ones authorized by DECATHLON for this bike model. Using another charger may damage the battery or cause serious inci- dents (sparks, fire). PRECAUTIONS FOR USING THE BATTERY AND CHARGER Battery to be handled with care.
  • Page 15 BATTERY LEVEL 00:00 km/h speed U03 FAILED trip 00000 AUTONOMY : The battery life of the electric bike depends on numerous factors: • The weight on the bike: Overloading the bicycle will reduce the battery life (panniers, baby carrier etc). •...
  • Page 16 Removal: Turn the key. The battery should move so the handle can be grabbed (pull the pull tab if it does not move). RECHARGING THE BATTERY : Start of charging red LED. Green LED when charging is complete. LED flashing red, problem during charging, contact customer services.
  • Page 17 BATTERY SELF-ASSESSMENT : < 10% charge Recharge your battery as soon as possible Temperature protection Do not put your battery back into the bike. Short-circuit protection Return your battery to the After-Sales Department. Other protection ERROR CODES ERROR km/h ENGINE vitesse distance parcourue Error code...
  • Page 18 Temperature sensor error (-20°C) Switch off and restart the bicycle. > If the problem persists on a resting engine > Change the motor Temperature sensor error (125°C) Charge the battery. > Battery diagnosis Abnormal current or voltage If OK > Change the motor >...
  • Page 19 For more information on use, maintenance, after-sales services or if you have any questions, visit DECATHLON’s support website (www.support.decathlon.com) or visit a DECATHLON store. ACCESSORIES • The kickstand does not guarantee the stability of the bicycle if used on unstable or sloping ground. Make sure to use it on stable, level ground. Do not leave your child in the baby seat or on the luggage rack when the bike is parked on its kickstand.
  • Page 20 https://www.decathlon.com.tr/...
