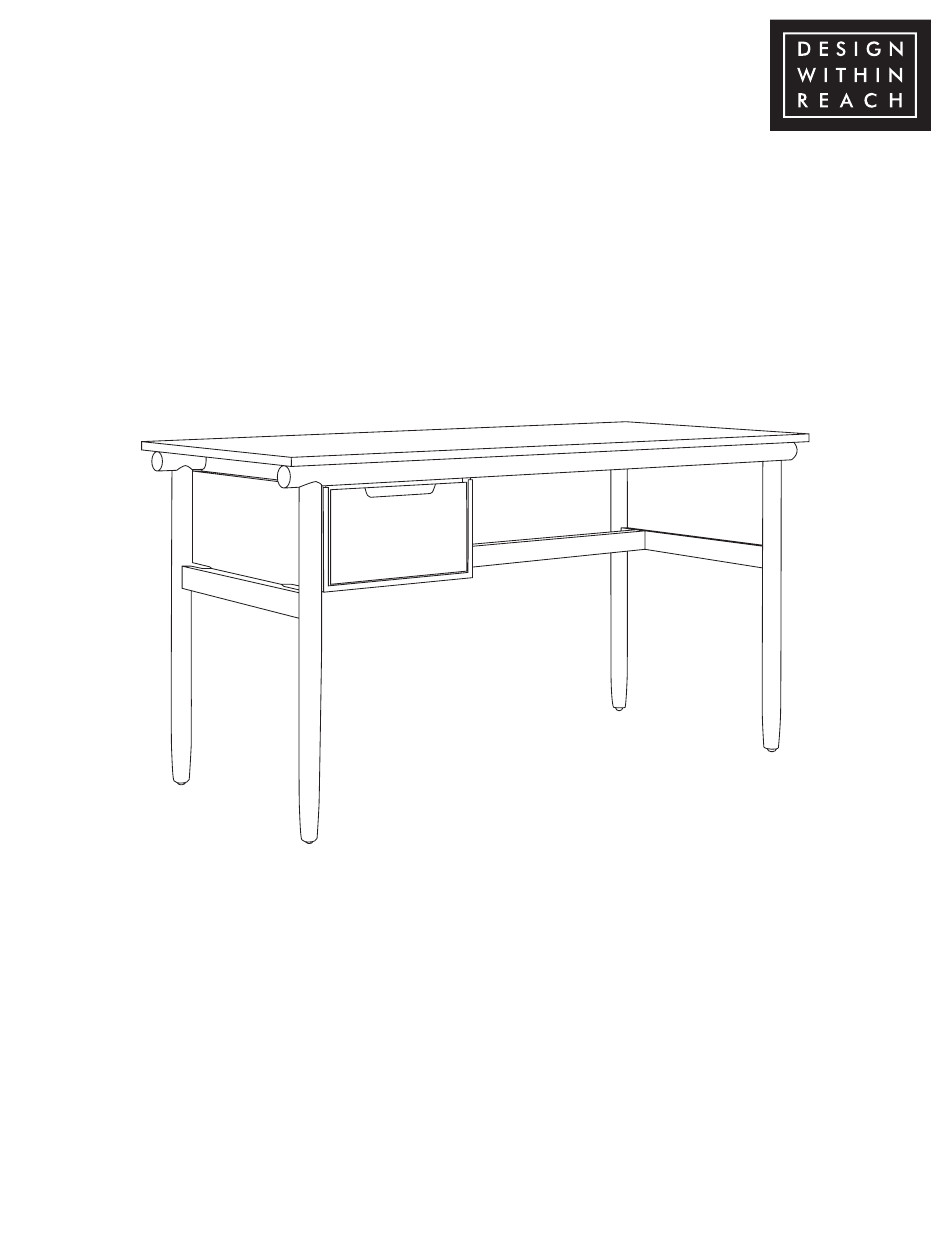

- Page 1 Raleigh Desk Customer Service: 1.800.944.2233 inside the U.S. 1.203.614.0600 outside the U.S. 1 | W W W. D W R . C O M | 1. 8 0 0 . 9 4 4 . 2 2 3 3 | D E S I G N W I T H I N R E A C H S T U D I O S...
- Page 2 Raleigh Desk Parts List Storage Case Desktop Stretcher Top Frame Leg Frame x 2 READ BEFORE BEGINNING ASSEMBLY: Hardware List Please identify all parts and have the required hardware before you begin. Read all instructions before assembly. Carefully remove all of the components from the packaging and set aside for assembly.
- Page 3 Raleigh Desk Turn leg frames upside down and place on a flat surface. Turn stretcher upside down, with rectangular cutouts facing upward. For left side storage case installation, round hole in stretcher should be aligned on right side. For right side installation, hole should be aligned on left side.
- Page 4 Raleigh Desk Flip base assembly over, and lightly place top frame on base assembly. Install storage case on side with hole in stretcher, being mindful to hold front of drawer shut so it doesn’t slide open. Once installed, press top frame down, ensuring it’s snug.
- Page 5 Raleigh Desk Insert 4 bolts through top frame into storage case, 4 bolts through top frame into tops of legs, and 1 bolt through underside of stretcher into storage case, using Allen wrench to tighten. Place desktop on frame assembly. Insert 6 bolts (3 per rail), using Allen wrench to tighten (red indicates back rail placement).
