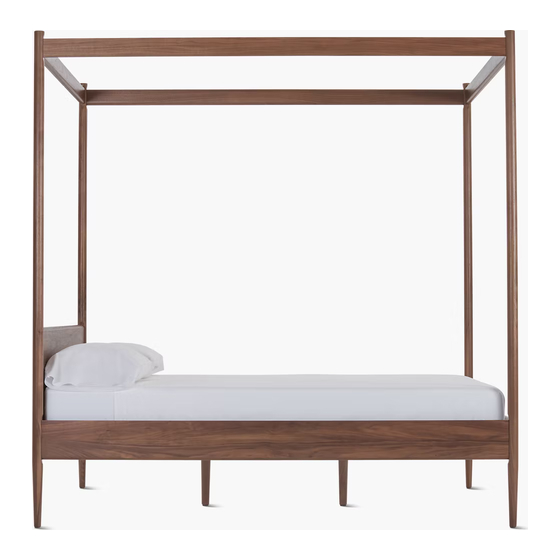

Cove Canopy Bed
Designed by Nathan Yong for Design Within Reach
Customer Service:
1.800.944.2233 inside the U.S.
1.203.614.0600 outside the U.S.
1 | W W W. D W R . C O M | 1. 8 0 0 . 9 4 4 . 2 2 3 3 | D E S I G N W I T H I N R E A C H S T U D I O S
Wood Care
Dust with a slightly damp, soft,
lint-free cloth. Wipe dry with a
dry, soft cloth in the direction of
the wood grain. Do not use aerosol
cleaners or polishes. Also, do not
use polishes containing waxes
or abrasives, or polishes that are
oil-based.
Advertisement
Table of Contents
Related Manuals for Design Within Reach Cove 100168796
Summary of Contents for Design Within Reach Cove 100168796

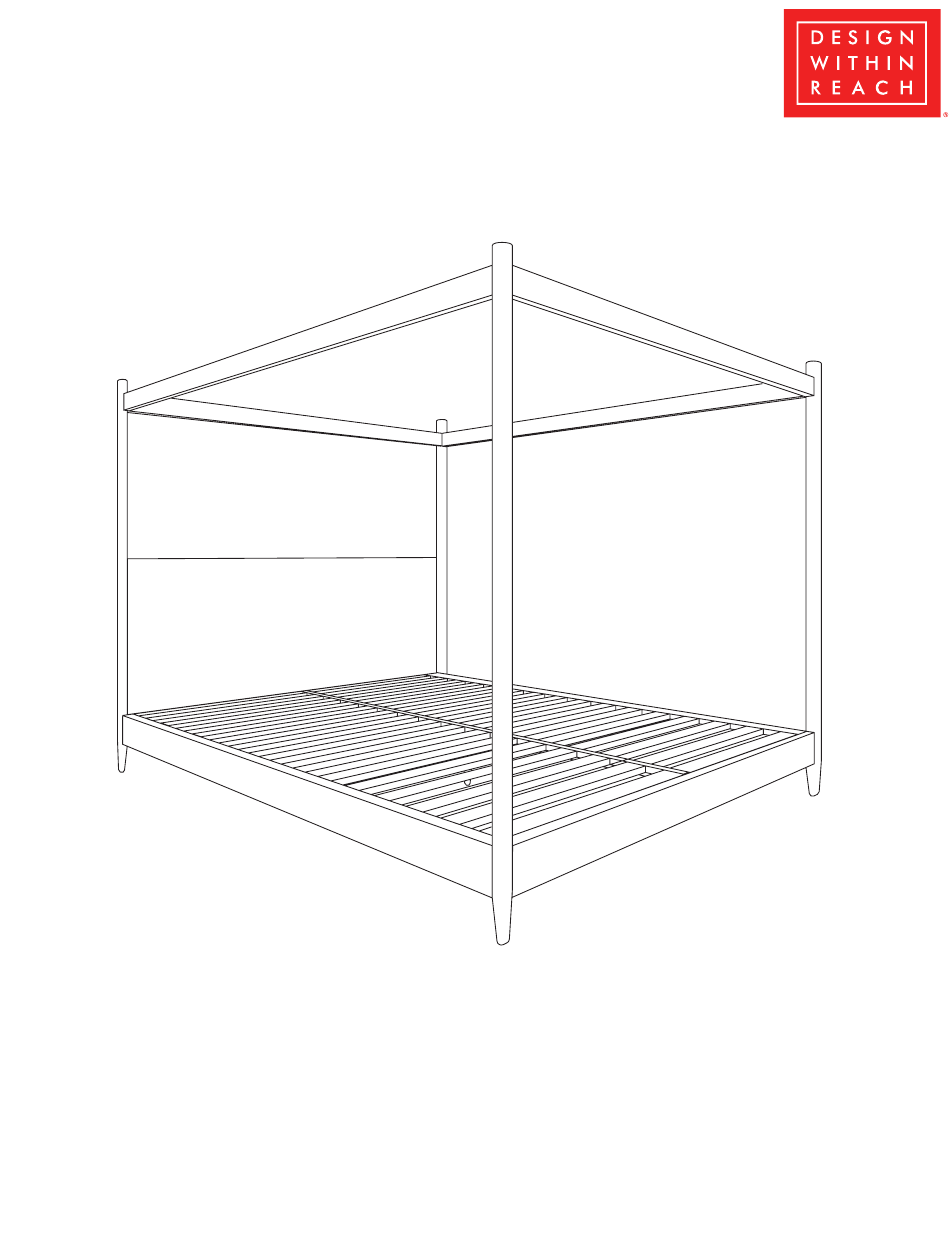

- Page 1 Cove Canopy Bed Designed by Nathan Yong for Design Within Reach Wood Care Dust with a slightly damp, soft, lint-free cloth. Wipe dry with a dry, soft cloth in the direction of the wood grain. Do not use aerosol cleaners or polishes. Also, do not...
- Page 2 Cove Canopy Bed Hardware Checklist MEDIUM BOLT X 84 LONG BOLT X 2 (M6 X 30MM) (M6 X 55MM) MACHINE SCREW X 8 L-BRACKET X 2 PUNCH BLOCK X 1 MALLET (REQUIRED TOOL) ELECTRIC DRILL (OPTIONAL TOOL) ALLEN WRENCH STEP STOOL (OPTIONAL) 2 | W W W.
- Page 3 Cove Canopy Bed Parts Checklist HEADBOARD PANEL X 1 FOOTBOARD PANEL X 1 HEADBOARD LEG X 2 FOOTBOARD LEG X 2 SIDE RAIL X 2 SHORT TOP RAIL X 2 3 | W W W. D W R . C O M | 1. 8 0 0 . 9 4 4 . 2 2 3 3 | D E S I G N W I T H I N R E A C H S T U D I O S...
- Page 4 Cove Canopy Bed Parts Checklist LONG TOP RAIL X 2 CENTER RAIL X 1 SLAT X 42 CENTER LEG X 2 4 | W W W. D W R . C O M | 1. 8 0 0 . 9 4 4 . 2 2 3 3 | D E S I G N W I T H I N R E A C H S T U D I O S...
- Page 5 Cove Canopy Bed Stand headboard leg upright and attach headboard panel, making sure its rounded top edge faces eventual mattress area. Repeat with other headboard leg. Attach short top rail to headboard legs using labels to ensure that rounded edge of rail faces toward eventual mattress area. Firmly seat joints with punch block and rubber mallet.
- Page 6 Cove Canopy Bed Position headboard and footboard assembly as near as possible to final location of bed. Install first side rail, connecting side-rail hooks into corresponding slots in legs, making sure rounded top edge faces inward. Repeat with other side rail. Use punch block to seat all joints. Using a step ladder as necessary, connect either long top rail to legs, as shown, making sure rounded edge of rail faces inward as indicated on parts labels.
- Page 7 Cove Canopy Bed Attach L-brackets to headboard and footboard using machine screws, threading all loosely before tightening with Allen wrench. Connect center legs to center rail using long bolts, then attach center rail to L-brackets on headboard and footboard using machine screws. Use adjustable feet on center legs to level center rail. 7 | W W W.
- Page 8 Cove Canopy Bed Before proceeding to next step, ensure bed frame is square by measuring from a headboard leg kitty-corner across bed to opposite footboard leg, as shown by dotted line. Then measure the distance to other set of legs and compare. Adjust bed frame until two X measurements are equal or nearly equal.
