All manuals and user guides at all-guides.com r.LiNK Video-Inserter RL2-MBN51 for Mercedes Benz vehicles with Comand Online NTG5/NTG5.1 Audio20 CD NTG5/NTG5.1 Audio20 USB NTG5/NTG5.1 with 4pin HSD LVDS connector to monitor Video-inserter for front- and rear-view camera input and additional video source Product Features ...
Page 2
After Market Front Camera 2.6.3 After Market Video Source 2.6.4 Audio insertion Connecting Video-Interface and Keypad Picture settings and guide lines 3. Interface Operation By Comand-buttons By keypad 4. Specifications 5. Frequently asked questions 6. Technical support Version 14.04.2016 RL2-MBN51...
Page 3

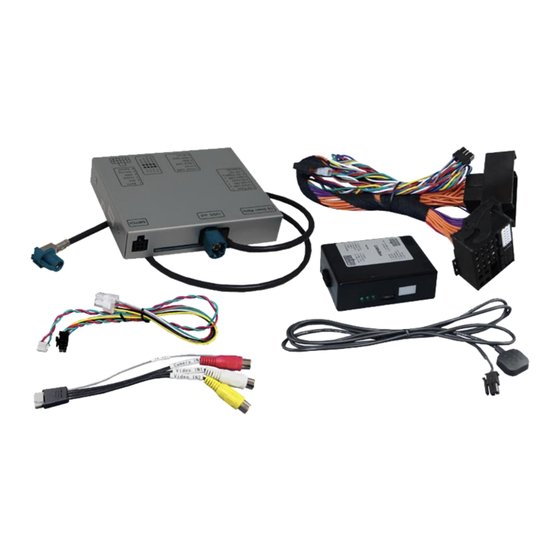

Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 14.04.2016 RL2-MBN51...
Page 4
Factory rear-view camera Automatic switch-back from inserted video to factory rear-view camera only while reverse gear is engaged. To delay the switch- back time, additional electronics is required. Version 14.04.2016 RL2-MBN51...
Page 5
1.4.1. Enabling the interface’s video inputs (dip 2-3) Only the enabled video inputs can be accessed when switching through the interface’s video sources. It is recommended to enable only the required inputs for the disabled will be skipped when switching through the video-interfaces inputs. Version 14.04.2016 RL2-MBN51...
Page 6
If power source is not taken directly from the battery, the connection has to be checked for being start-up proven and permanent. 2.1. Place of installation The interface is installed on the backside of the head-unit. Version 14.04.2016 RL2-MBN51...
Page 7
All manuals and user guides at all-guides.com 2.2. Connection Scheme Version 14.04.2016 RL2-MBN51...
Page 8
Note: The CAN-box is not compatible with all vehicles. If the CAN-Box does not deliver ACC to pin2 of the video-interface or blocks the vehicle CAN, it is possible to install without CAN- Box. In this case see also note in chapter after-market rear-view camera if one is supposed to be connected. Version 14.04.2016 RL2-MBN51...
Page 9
Remove blue female 4pin HSD LVDS connector from the rear of the factory monitor and connect it to the male 4pin HSD LVDS connector of the 4pin HSD LVDS cable. Connect female 4pin connector of the 4pin HSD LVDS cable to the male 4pin HSD LVDS connector of Head-Unit. Version 14.04.2016 RL2-MBN51...
Page 10
It is possible to connect an after-market rear-view camera, an after-market front camera and an after-market AV-source to the video-interface. Before final installation of the peripheral devices, we recommend a test-run of the interface. Due to changes in the production of the vehicle manufacturer is always the possibility of incompatibility. Version 14.04.2016 RL2-MBN51...
Page 11
Interface switches automatically to CAM input. In addition power supply of +12V (500mA max.) of the After-Market Rear View Camera can be realised by the green wire of of 6Pin to 8pin cable Version 14.04.2016 RL2-MBN51...
Page 12
Connect continuous battery current to relay input (87) 2.6.1.3 Video Signal Connection to Rear View Camera Connect the video-RCA of the after-market rear-view camera to the female RCA port of the video-interface which is labeled as CAM. Version 14.04.2016 RL2-MBN51...
Page 13
Connect 6pin male connector of video cable to 6pin female connector of video interface Connect male RCA of front camera to the white female RCA “Front Cam” of video Cable Note: There is no automatic switch to front camera. Only manual swiching by keypad or Comand button. Version 14.04.2016 RL2-MBN51...
Page 14
This interface can only insert video signals into the factory infotainment. If an AV-source is connected, audio insertion must be done by factory audio AUX input with A2DP Audio Streaming by Bluetooth (Art. Nr. AUX-A2DP) or FM-modulator. The inserted video-signal can be activated simultaneously to each audio-mode of the factory infotainment. Version 14.04.2016 RL2-MBN51...
Page 15
All manuals and user guides at all-guides.com Connection Video Interface and External Keypad Connect 4pin female Microfit connector of external keypad to male 4pin Microfit connector of video interface Version 14.04.2016 RL2-MBN51...
Page 16
Position H (horizontal) Position V (vertical) Guide lines (ON/OFF) Note: If the CAN-box does not support the very vehicle, the guide-lines cannot be used. If supported and activated, the guide-line also show the steering wheel position dependant driving path. Version 14.04.2016 RL2-MBN51...
Page 17
Stand-by power drain <10mA Power consumption 4,8W Video input formats PAL/NTSC RGB-video amplitude 0.7V with 75 Ohm impedance Temperature range -40°C to +85°C Weight 313g Dimensions (box only) B x H x T 113 x 22 x 92 mm Version 14.04.2016 RL2-MBN51...
Page 18
Camera is being tested under Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker. bluish. removed from camera lens. Version 14.04.2016 RL2-MBN51...
Page 19
Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH distribution/tech dealer-support Eurotec-Ring 45 D-47445 Moers +49 2841 949970 Email mail@navlinkz.de 10R-03 5384 Made in China Version 14.04.2016 RL2-MBN51...
