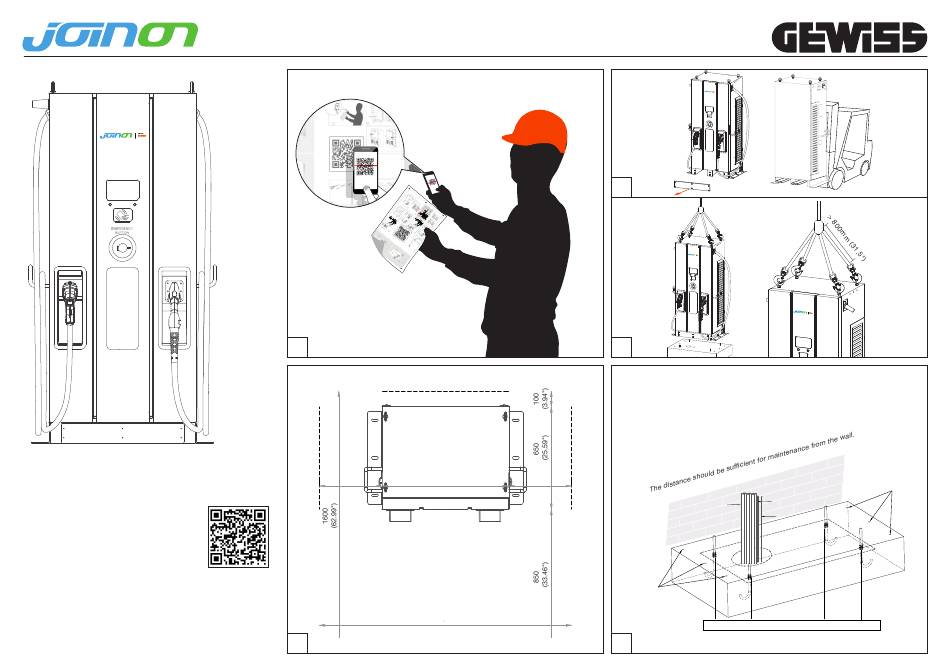

Quick installation guide

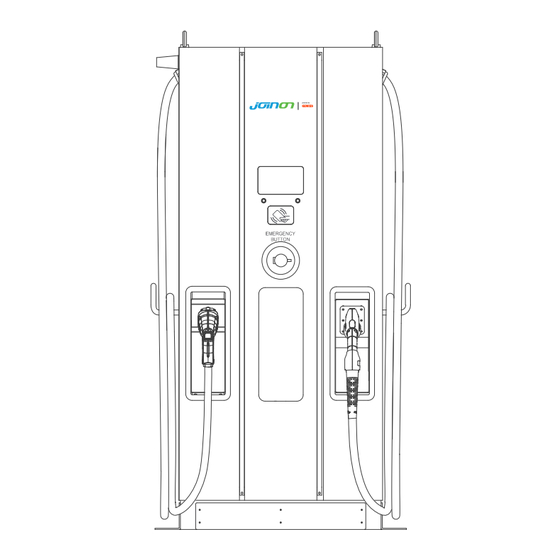

I-FAST 90-180 KW
(Floor Version)
EVSE DC
1
Left
400
(15.75")
3
Back
Right
800
400
(31.5")
(15.75")
Front
1600
(62.99")
2a
2b
90kW: 95mm
for L1, L2, L3, N, and 50mm
for PE. Recommended using 600V, 75°C, XLPE power cable.
2
2
120kW: 120mm
for L1, L2, L3, N, and 70mm
for PE. Recommended using 600V, 75°C, XLPE power cable.
2
2
150kW: 185mm
for L1, L2, L3, N, and 95mm
for PE. Recommended using 600V, 75°C, XLPE power cable.
2
2
180kW: 240mm
for L1, L2, L3, N, and 120mm
for PE. Recommended using 600V, 75°C, XLPE power cable.
2
2
Ethernet Cable
at least 1800mm(71 inch)
AC Cable
Tilt sensor
Cable
at least 400mm
(15.7 inch)
(Optional)
L Bracket Orifice
4XM12 Screw stick
4
L Bracket Orifice
