Electric vehicle charging unit JOINON WALLBOX I-CON DLM CONTENTS INFORMATION ABOUT THIS MANUAL 1.1. Field of application 1.2. Intended users 1.3. Symbols REGULATORY ASPECTS Fulfilment of regulations 2.2. Degree of protection 2.3. Degree of pollution 2.4. Current socket-outlets SAFETY 3.1. Safety conditions 3.2. - Page 2 APP AND CHARGING STATION CONNECTION 8.1. Download “I-CON MANAGER” app 8.2. Pairing OPERATION AND CHARACTERISTICS ECO operating mode DLM operating mode STATUS INDICATORS CHARGING PROCESS 11.1. Vehicle charging in ECO mode 11.2. Vehicle charging in DLM mode CLEAN CONTACT CONNECTION 12.1 Default setting 12.1.1 Operating logic 12.2 Additional setting...
-
Page 3: Information About This Manual

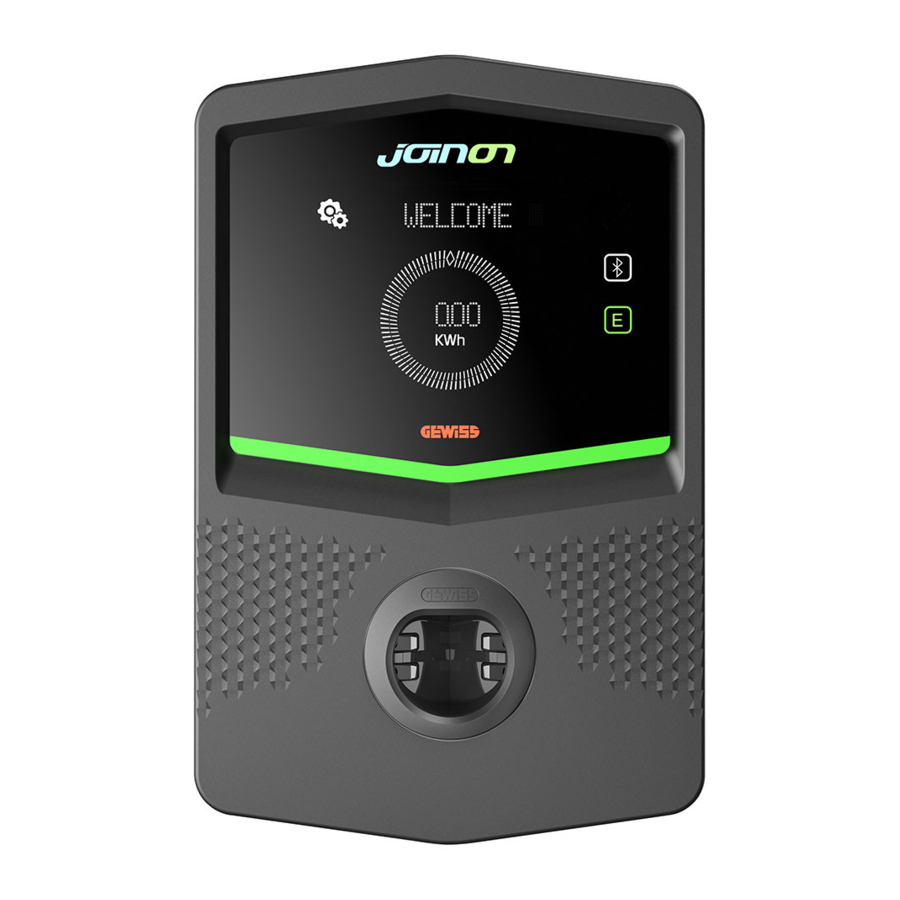

Electric vehicle charging unit JOINON WALLBOX I-CON DLM INFORMATION ABOUT THIS MANUAL This manual describes the JOINON I-CON electrical vehicle recharging station and provides the necessary infor- mation for correct delivery, installation, start-up, maintenance and operation. FIELD OF APPLICATION This manual applies for the following charging stations: - GWJ3101A –... -
Page 4: Regulatory Aspects
REGULATORY ASPECTS FULFILMENT OF REGULATIONS CE marking CE marking is essential for marketing the products in question within the European Union and the European Eco- nomic Area. The charging stations have CE marking as they comply with the following directives: •... -
Page 5: Safety
Gewiss disclaims all liability for any damage caused by inappropriate use of the charging stations. Any operation carried out on these charging stations that involves a change to the original electrical settings must be authorised by Gewiss beforehand. All such proposals must be examined and approved by Gewiss. -
Page 6: Personal Protective Equipment (Ppe)
Potential hazards for the device In order to protect the device, observe the following warnings. Before reconnecting the voltage supply after any duly authorised operation, make sure the device is ready to start working. Then, connect it following the instructions in the manual. Do not touch the boards or the electronic components;... -
Page 7: Device Delivery And Storage
Keep the device packaged until installation. 4.3. DEVICE IDENTIFICATION The serial number of the device identifies it in an unequivocal manner. In any communication with Gewiss, refer- ence must be made to this number. The device serial number is indicated with a data matrix on the technical data label (on the side of the front panel). -
Page 8: Device Handling
• Avoid striking or dropping the mechanical stations as this could deteriorate the mechanical properties. • Avoid, as far as possible, the vibrations that could cause subsequent abnormal operation. If a fault is discovered, contact Gewiss immediately. Packaging disposal The packaging can be sent to an authorised non-hazardous waste agent. -
Page 9: Preparation For Device Installation
Electric vehicle charging unit JOINON WALLBOX I-CON DLM PREPARATION FOR DEVICE INSTALLATION To decide the location of the device and prepare for its installation, a series of instructions connected to the prop- erties of the device must be followed. 6.1. ENVIRONMENT •... -
Page 10: Opening The Casing
6.4. OPENING THE CASING To open the casing from the main access, proceed as shown in the following figures. -
Page 11: Closing The Casing
Electric vehicle charging unit JOINON WALLBOX I-CON DLM 6.5. CLOSING THE CASING xxxx. Xxxxxxxxxx... -
Page 12: Requirements For The Use Of The Dynamic Management Functionality Of The Charging Power
6.6. REQUIREMENTS FOR THE USE OF THE DYNAMIC MANAGEMENT FUNCTIONALITY OF THE CHARGING POWER The charging station can be set to dynamically manage the charging power to the electric vehicle. To be able to implement this logic, the electrical system must be prepared accordingly. An energy meter (code GWD6812 or GWD6817) must be installed upstream of the electrical system that is able to measure all domestic consumptions. -
Page 13: Joinon Wallbox I-Con Dlm
Electric vehicle charging unit JOINON WALLBOX I-CON DLM 7.2. JOINON WALLBOX I-CON DLM 7.2.1. DEVICE INSTALLATION 1. For device assembly, one of the two following solutions can be selected: • Fixing on the wall... - Page 14 • Fixing with the aid of support brackets on pole GW46551...
- Page 15 Electric vehicle charging unit JOINON WALLBOX I-CON DLM • Fixing to the support on the ground: after attaching the support to the ground, fix the column to the plate on the support (using the protruding screw, already installed), then use screws to fix the WB to the plate that includes the threaded rivets Cable inlet on the back of the circled area.
- Page 16 • Surface-mounting of the Wallbox Eliminate the relevant knockouts on the basis of the cable inlet chosen (A from below, B from the rear), then fix the box in the wall Insert the WallBox in the box...
- Page 17 Electric vehicle charging unit JOINON WALLBOX I-CON DLM Fix it to the columns of the flush-mounting box using self-threading screws Ø4 For the cable inlet from the bottom (A), use the cable glands supplied...
-
Page 18: Connection Of The Device Power Supply
For the cable inlet from the rear (B), prepare the back plate of the WallBox on the basis of your requirements 7.2.2. CONNECTION OF THE DEVICE POWER SUPPLY Protection devices Each charging station must be protected upstream by circuit breaker protection and residual current devices required by the low voltage electrical system standard. - Page 19 Electric vehicle charging unit JOINON WALLBOX I-CON DLM Connection procedure 1. Open the casing as shown in the figure. 2. Power supply inlet...
-
Page 20: Installation And Configuration Of The Energy Meter
3. Connect the power supply and signal cables according to the different models L1 L2 L3 N PE L1 N PE ALIMENTAZIONE ALIMENTAZIONE COLLEGAMENTO COLLEGAMENTO ALIMENTAZIONE ALIMENTAZIONE COLLEGAMENTO COLLEGAMENTO ELECTRONIC POWER MAIN REMOTE CONTROL ELECTRONIC MAIN POWER REMOTE CONTROL ELETTRONICA PRINCIPALE REMOTE CONTROL ELETTRONICA... -
Page 21: Connection Of The Rs485 Data Line
Electric vehicle charging unit JOINON WALLBOX I-CON DLM Once it is installed and powered, it is necessary to set 2 energy meter parameters so it can communicate correctly with the charging station. The parameters available are: - NODE SERIAL ADDRESS → parameter P-20 → must be set to 2 - SERIAL SPEED →... -
Page 22: Clean Contact Connection
In order to make the connection correctly, it is necessary to comply with the following recommendations: - Use a BELDEN 3105A cable. - It is recommended to maintain a distance of approx. 100 m between the charging station and the external energy meter. - Page 23 Electric vehicle charging unit JOINON WALLBOX I-CON DLM APP AND CHARGING STATION CONNECTION The charging station has Bluetooth Low Energy connectivity (hereafter BLE) which makes it possible to use the mobile “I-CON MANAGER” APP, which is needed to perform the phases of setting the station, updating the firm- ware and displaying the charge log.
- Page 24 5. Once the charging station is identified, it must be selected and confirm the association by entering the PAIRING code 6. It is possible to scan the QRcode located inside the station and on the warning sheet to easily identify the charging station to which you want to connect 7.
- Page 25 Electric vehicle charging unit JOINON WALLBOX I-CON DLM OPERATION AND CHARACTERISTICS The DLM AUTOSTART charging stations are able to manage 2 different charging modes. The first is called ECO and the second DLM. One mode excludes the other, but it is possible to vary the configuration as needed. Remember that for the DLM operating mode, there must be a specific energy meter connected to the station as indicated in chapters 6, 7.2.3...
- Page 26 STATUS INDICATORS The charging station uses RGB LEDs to inform the client about the status and indicate which actions need to be carried out. The status indication (READY, CHARGING, ERROR) is also provided in the "I-CON MANAGER" APP (if it is near the charging station and the devices are connected with each other).
- Page 27 Electric vehicle charging unit JOINON WALLBOX I-CON DLM CHARGING PROCESS The steps needed to perform charging and manage it based on the selected operating mode. 11.1. VEHICLE CHARGING IN ECO MODE The recharging station is always accessible and ready to begin a charging session as soon as a vehicle is con- nected.
- Page 28 SETTABLE FACTORY SELECTED VALUE IN THE APP VERSION POWER SUPPLY VALUE OPERATING MODE (Amperes - Power) (Amperes - Power) 20 A – 4.6 kW 18 A – 4.1 kW 15 A – 3.5 kW 20 A– 4.6 kW 13 A – 3 kW 10 A –...
- Page 29 Electric vehicle charging unit JOINON WALLBOX I-CON DLM CLEAN CONTACT CONNECTION The charging station has a clean contact that can be used by external devices to check the charging station, intervening in the current charging process. COLLEGAMENTO USER CONNECTION UTENTE The operating logic is combined with the position of selector number 4 of the DIPSWITCH on the electronic board.
- Page 30 In the case of products connected to the JOINON platform, or if the maintenance package has been purchased, call the FreePhone number 800 123 325 when necessary. In all other cases where technical support is required, call GEWISS SAT customer service.
- Page 31 Electric vehicle charging unit JOINON WALLBOX I-CON DLM DISCONNECTING FROM THE MAINS SUPPLY This section describes the procedure for disconnecting the device from the mains network. If you want to work inside the device (qualified personnel only), interventions must first be made on the protection elements upstream of the line (both for the power level part and the power supply to the electronic board).
