Table of Contents

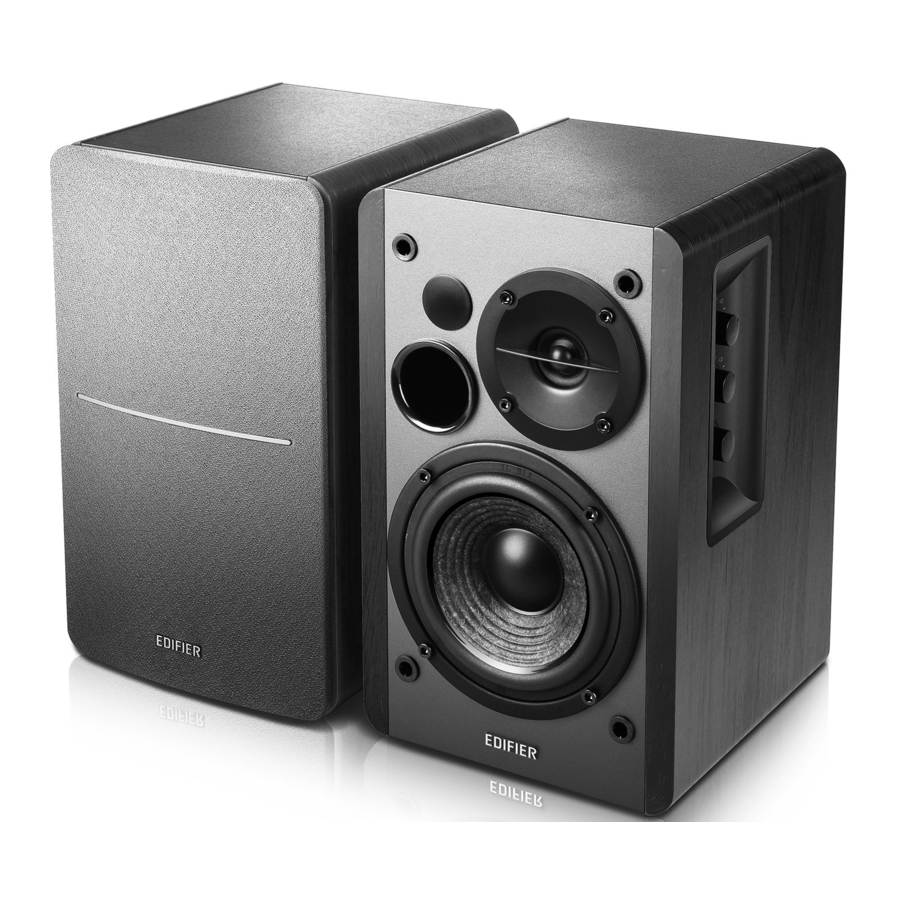

Box Contents

warning Note: Images are for illustrative purposes only and may differ from the actual product.

Infrared receiver
Treble dial
Bass dial
Master volume control/ input selection Press in to navigate between audio sources: LINE1→ LINE2→Optical→Coaxial→Bluetooth.
Note: Press and hold the master volume control to enter into standby mode.
Power indicator
Red: optical/coaxial inputs
Blue: Bluetooth input
Green: Line in1/Line in2 inputs
Speaker output
Power switch
Power cord
Line in1 input port
Line in2 input port
Optical input port
Coaxial input port

Battery loading:
Please refer to the illustration to open the battery compartment, insert the CR2025 battery and close the compartment.

Don't swallow the battery; danger of chemical burn.
The product includes a wafer battery. Swallowing this battery may lead to injury or death. Do not place the new or old battery in where children can get to it.
Don't use the product if the battery cover is missing or not closed, and keep the remote inaccessible to children.
Please go to the hospital immediately if the battery is swallowed.

warning Note:

Do not place the remote control in places that are hot and humid.
Do not charge the batteries.
Remove the batteries when unused for a long period of time.
The battery should not be exposed to excessive heat such as direct sun, fire or similar.
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Press the master volume control on the active speaker or press the "LINE1"/"LINE2" button on the remote control to select LINE IN input. The indicator turns to green.
Using audio cable to connect audio source to the speaker.
Play from your device and adjust the volume accordingly.

Press the master volume control on the active speaker or press the "OPT"/"COX" button on the remote control to select the optical/coaxial input. The indicator turns to red.
Using optical or coaxial cable (optical cable included) to connect audio sources to your speaker.
Play from your devices and adjust the volume accordingly.

warning Note:

In optical and coaxial modes, only PCM signal with 44.1KHz/48KHz can be decoded.

Turn on speaker and switch to Bluetooth mode by pressing the Bluetooth button on the remote control or press the master volume control on back panel of the active speaker. The indicator turns to blue.
Go to setup section on your source devices (mobile phones, tablets, etc.) and search for nearby Bluetooth devices, you will find "EDIFIER R1280DB" in the list.
Pair your device with "EDIFIER R1280DB".
Play audio tracks on your device and adjust the volume to a desired level.
To disconnect from the current Bluetooth device, press and hold the " " button for 2 seconds.

warning Note:

Bluetooth connectivity and compatibility may be different among different source devices, depending on the software versions of source devices.
To enjoy the full Bluetooth functions of this product, please ensure your mobile device supports A2DP and AVRCP profile.
PIN code for connection is "0000" if needed.

Power output: L/R: 21W+21W

Frequency response: 55Hz-20KHz

Bass unit: 4 inch (116mm)

Tweeter unit: Φ13mm silk dome tweeter

Declaration for EU

Frequency Band: 2.402GHz ~ 2.480GHz

RF Power output: ≤20 dBm (EIRP)

There is no restriction of use.

Problem	Solution
No sound	Check if the power indicator light is ON
	Try to turn up the volume using either the master volume control or remote control.
	Ensure the audio cables are firmly connected and the input is set correctly on the speakers.
	Check if there is signal output from the audio source.
Cannot connect via Bluetooth	Make sure the speaker is switched to Bluetooth input, in other audio input mode Bluetooth can not be paired or connected. Disconnect from any Bluetooth device by press and hold the volume dial in Bluetooth mode, then try again.
	Effective Bluetooth transmission range is 10 meters, please make sure operation is within the range.
	Try another Bluetooth device for connection.
The R1280DB does not turn on	Check if mains power is connected. or if the wall outlet is switched on.
