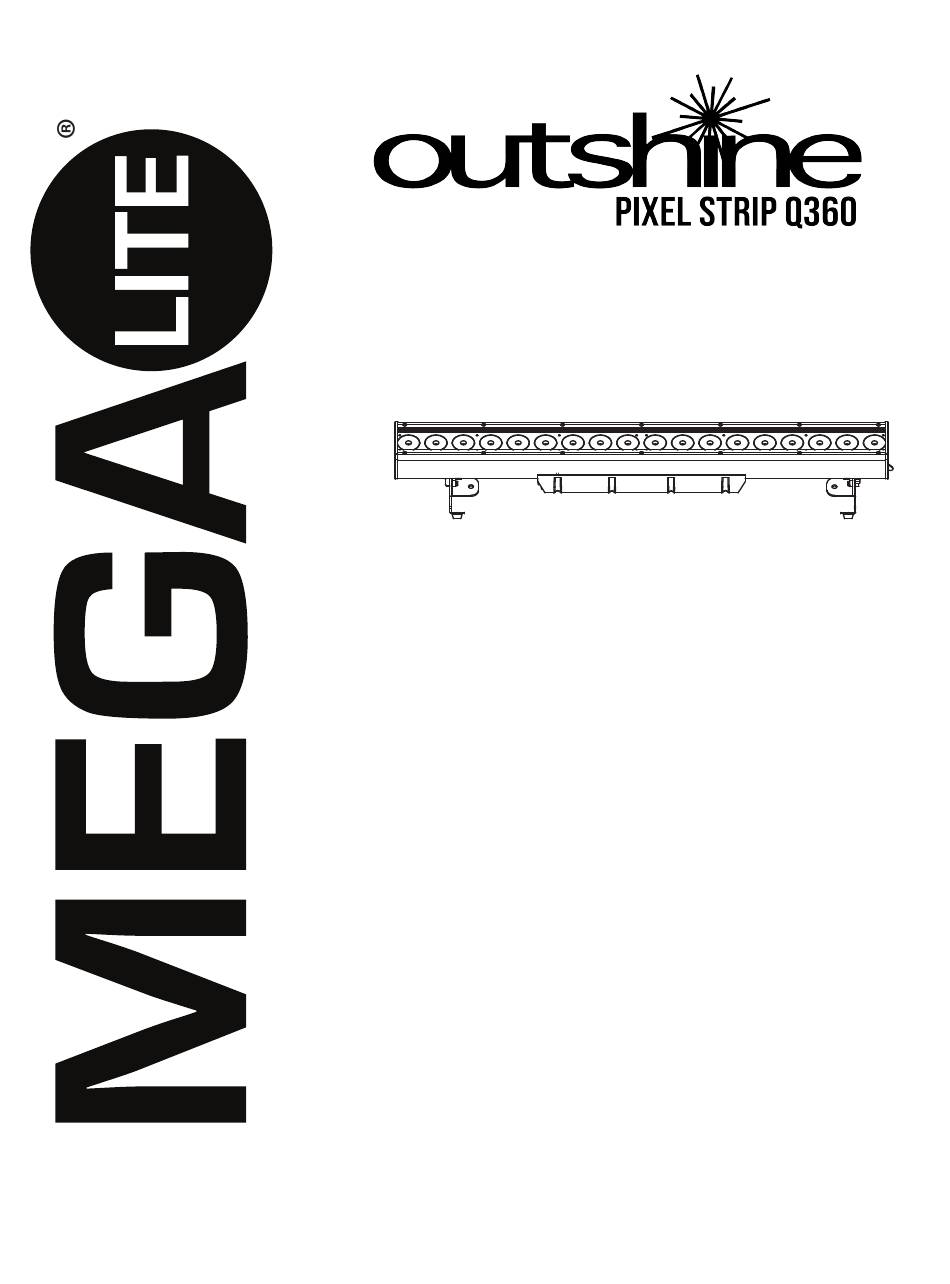

- Page 1 USER MANUAL Table of Contents Safety Information What’s Included Specifications Main Power Connection DMX Connection Menu Settings Size and Weight DMX Profiles Installation Parts and Accessories Warranty Customer Service...
- Page 2 Protection Against Fire Maintain a minimum of 2 foot distance from any type of flame. Fixture is designed for indoor and outdoor use. Do not install the unit too close to a heat source. Make sure cables are properly secured. Maximum surface operating temperature: 130º.
- Page 3 Specifications Part Numbers Fixture(s): 7228 - Outshine Pixel Strip Q360 Mechanical Specifications Housing: Extruded and Cast Aluminum Mounting System: Slide Adjusting Mounting Stands and Clamp Mounts Power Connection: Seetronics SAC3MPX Input (Nema 5-15 to SAC3FX-65 cable included) Signal Connection: 5 Pin XLR In and Out Lens Angle: Nominal Beam Angle 17°...
- Page 4 Main Power Connection Caution! Do not connect to a dimmer system. This unit has auto switching power supply. It will respond to 90-264VAC 50/60Hz automatically This unit must be earthed. (electronically grounded) Cable USA Cable EU 110V 220V Black Brown Live Live White...
- Page 5 Menu Settings Reset 180 37° C DMX The control board on the fixture base is your interface to access and control all the functions on the unit. It’s LCD display gives you a code view of the options and functions. The following will explain each function. Menu Advan Menu...
- Page 6 Manual: Gives you operational control over the fixture via display 37° C DMX Reset 180 Menu Advan Manual: Select the Channel you wish to adjust. Us the up/down button to Menu select the function setting from 0-255 1 Dimmer 2 Red 3 Green 4 Blue 5 White...
- Page 7 Reset 180 Reset: Resets to factory setting Menu Advan Size and Weight 39.37” / 1Meter Closed 30.5” Open 33.75” 3.70” 4.60” 7.87” Fixture Size: 39.37” X 5.19” X 7.87” Fixture Weight: 19lb 12oz Packaged Size: 41.5” X 6.75” X 8.5” Packaged Weight: 20lb 5.19”...
- Page 8 DMX Profile Outshine Pixel Strip Q360 Channel Channel Channel Channel Channel Function Description Value Init Value Mode Mode Mode Mode Mode Dimmer Dimmer Off to Full (front leds) 0-255 LED Intensity Red LED Intensity 0-255 LED Intensity Green LED Intensity...
- Page 9 Installation Caution! 1. The Installation must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injures, if you have doubts concerning the safety do not install. 3. Unit is to be 24 inches away from flammable materials. 4.
- Page 11 Customer Support MEGA Lite has a customer support line to provide set-up help and to answer any questions should you encounter a problem. Please visit our website for any other related technical documents. For service related issues, please contact our service dept. Monday - Friday 9am to 6pm CST (210) 684-2600 service@mega.lighting...
