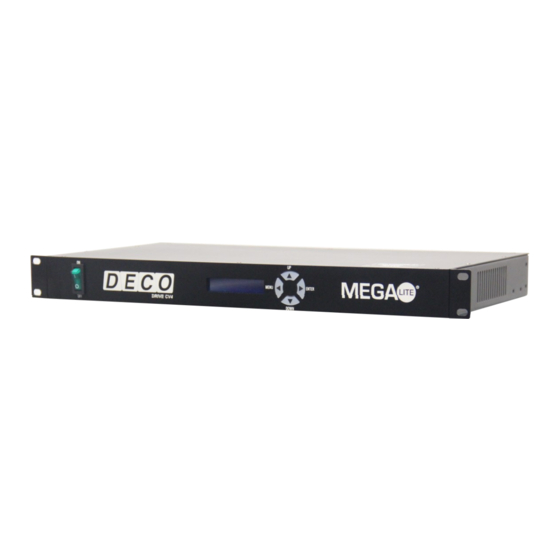

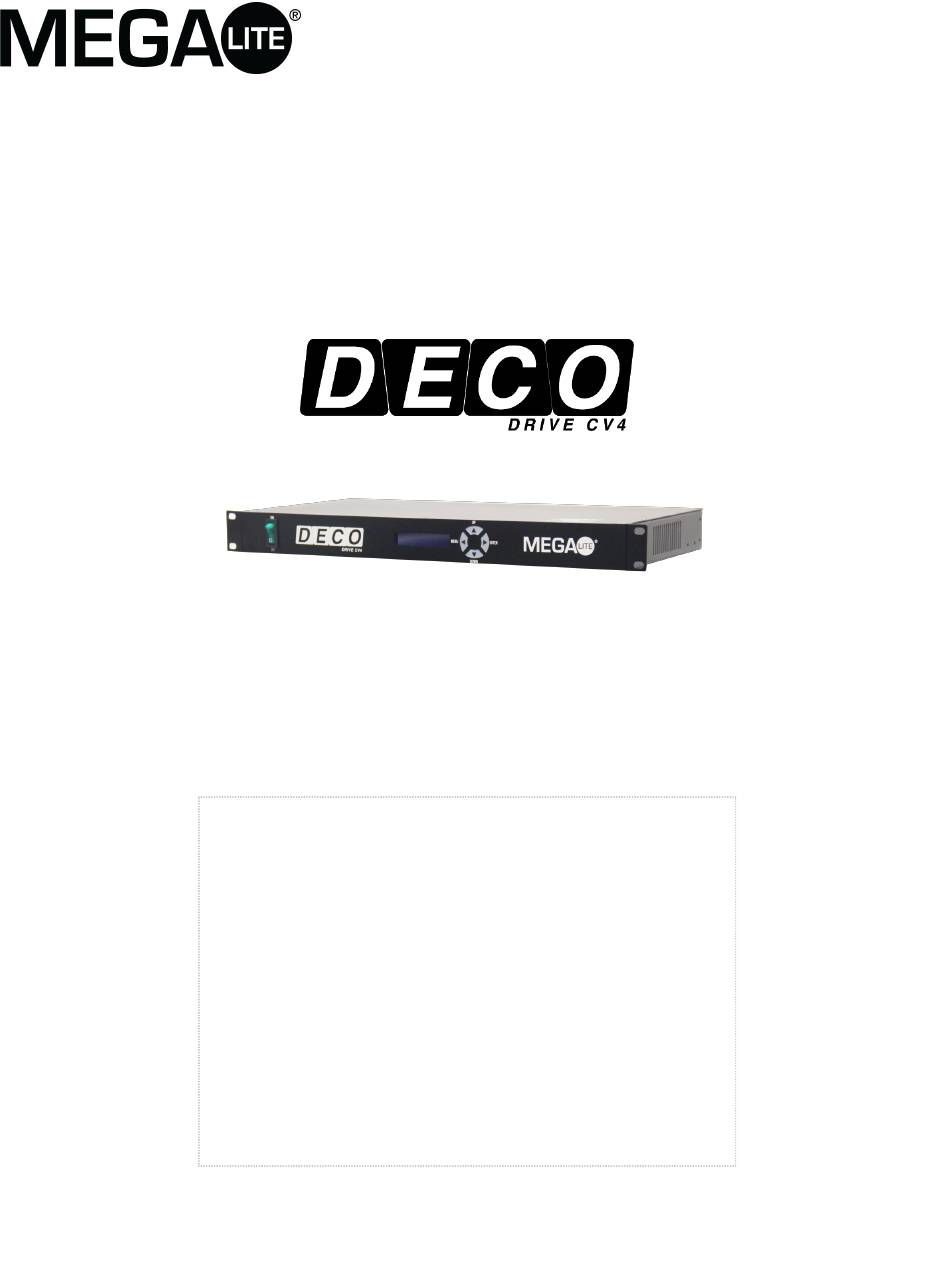

Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information What Is Included Specifications Main Power Connection DMX-512 Connection Output Connection Control Board DMX Profile Size & Weight Cleaning & Maintenance Parts List Warranty Customer Support... -
Page 3: Safety Information
1. Unit surface may reach high temperature. Allow about 5 minutes after powering the unit before moving. 2. When repositioning rack ears make sure they are securely attached. What is Included 1pc Deco Driver CV4 1pc Power Con Cable 4pc 5 Pin Screw Terminal Blocks 1pc User Manual... -
Page 4: Specifications
Specifications Part Numbers Fixture 5060– Deco Driver CV4 Mechanical Specifications Fastening System: Removable rack ears for Wall Mounting , Rack mounting and Rear rack mount- Display: Digital Power Connection: PowerCon (type) Cable Mounted to Edison head. Housing: Black painted DMX Connection: 5 Pin XLR &... -
Page 5: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit has Auto switching power supply. It will respond to 110V or 220V automatically This unit must be earthed. (electronically grounded) Replace fuse only with the specified type and rating. The occupation of the connection-cable is as follows: This fixture is equipped with an electronic power supply that will let the unit operate from 100V to 240V from 50Hz to 60Hz Cable (USA) -
Page 6: Output Connection
Output Connection Deco Driver CV4 is designed to be used as a driver for Constant Voltage lighting fixtures. There are many fixtures a Deco Driver can control . Each of the 4 output can be individually controlled and addressed to use the same or different fixture per each output. -
Page 7: Control Board
Control Board Lock Display: The display for the Deco Driver factory setting is lock screen function to unlock the display press and hold the Menu & Enter for 3 seconds DMX: System Mode Port Mode DMX Address DMX mode allows you to set the DMX ( DMX) (01) (01) -
Page 8: Dmx Profile
DMX Profile Deco CV4 1 Channel Mode Init DMX Channel Function Description Value Dimmer LED Intensity 0-255 Deco CV4 2 Channel Mode Init DMX Channel Function Description Value LED Color Warm White LED Intensity 0-255 LED Color Cool White LED Intensity 0-255 Deco CV4 3 Channel Mode Init... -
Page 9: Size & Weight
Size & Weight 17.37” 8.25” 1.75” 19” Fixture Size 19" X 8.25" X 1.75" Fixture Packaged 21.5" X 9.5" X 3.5" Net Weight 8.5lb Gross Weight 10.5lb... -
Page 10: Cleaning & Maintenance
Cleaning and Maintenance Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and electronics checked by an expert every 2 years. The following points have to be considered during the inspection: 1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded. -
Page 11: Warranty
Warranty Information Warranty Conditions -Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty. -LED’s and LAMPS are not guaranteed to match in color temperature or output. -It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor. If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
