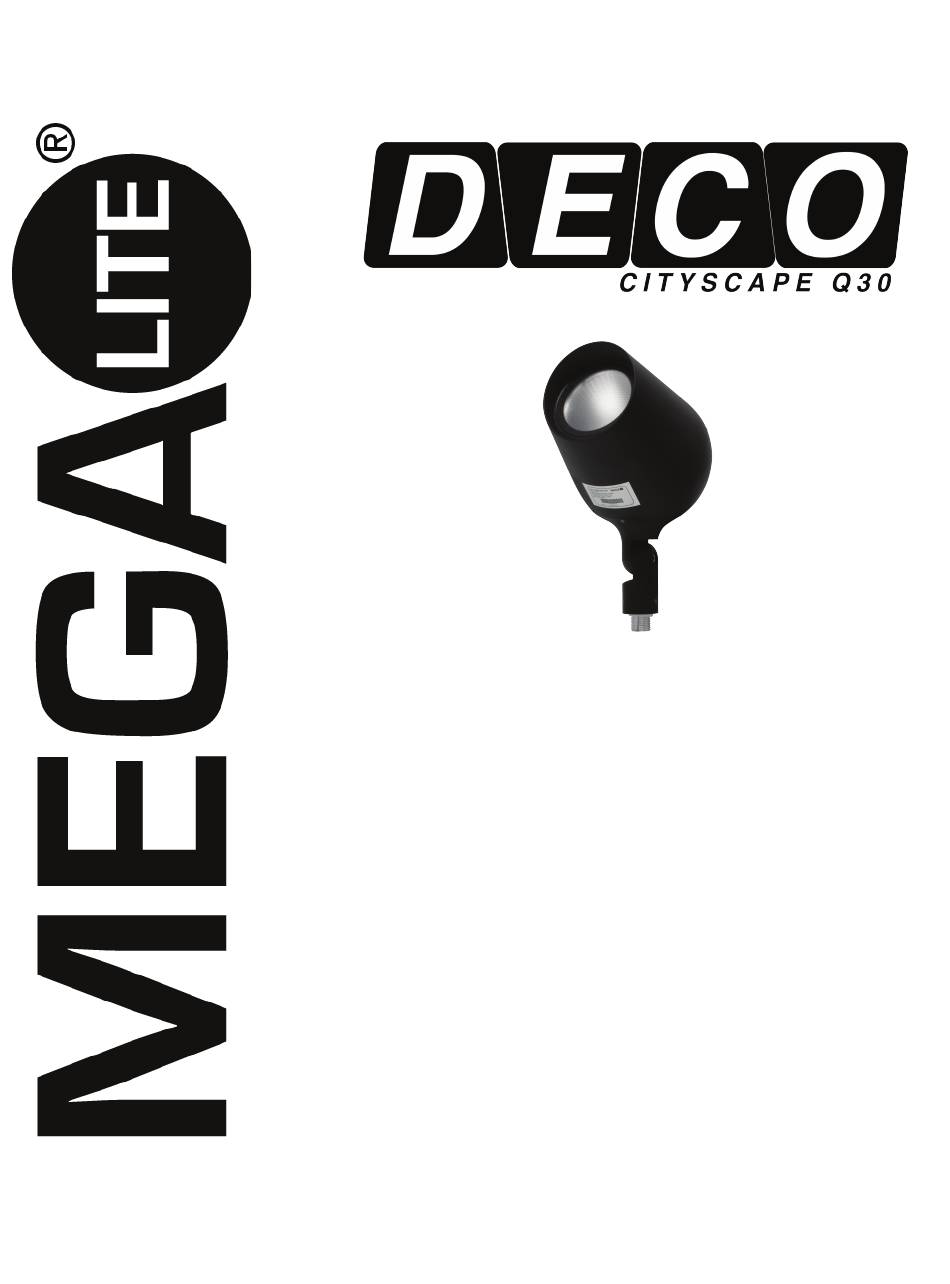

USER MANUAL
Table of Contents
Safety Information.........................2
What's Included.............................2
Specifications................................3
Main Power Connection................4
DMX Driver....................................4
Accessories...................................5
Size & Weight................................6
Installation......................................7
Cleaning & Maintenance...............7
Warranty........................................8
Customer Service..........................9
Advertisement
Table of Contents
Related Manuals for MegaLite DECO CITYSCAPE Q30
Summary of Contents for MegaLite DECO CITYSCAPE Q30
-
Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information......2 What’s Included......2 Specifications........3 Main Power Connection....4 DMX Driver........4 Accessories........5 Size & Weight........6 Installation........7 Cleaning & Maintenance....7 Warranty........8 Customer Service......9... -
Page 2: Safety Information
And there is protection against high pressure water from entering the fixture from any direction when used with a Junction Box. What is Included 1pc Deco Cityscape Q30 1pc User Manual... -
Page 3: Specifications

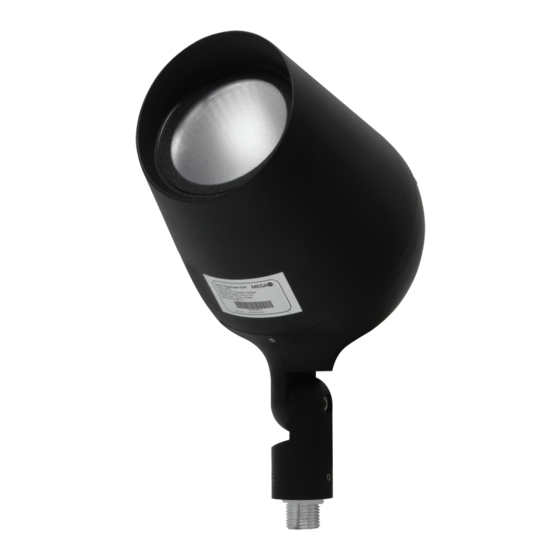

Specifications Part Numbers Fixture 5073 - Deco Cityscape Q30 Mechanical Specifications Housing: Die-Cast Aluminum, AB47100 Fastening System: Threaded 1/2” NPT Power Connection: 5 Conductor Cable 20AWG Cable Length: 48 inch Lens Angle: 29° IP Rating: IP66 Size: 7.25” x 5.5” x 10”... -
Page 4: Main Power Connection
DMX-512 Control When using the Deco Cityscape Q30 with Deco Drivers the fixture is intended to be used in Ch4 or Ch7 modes. The Deco Driver will be required to be set in Ch4 or Ch7 DMX operating modes. -
Page 5: Accessories
Accessories Part Number Description Image Assembled 5073ACCMJB JUNCTION BOX MOUNT (2 STRAIN RELIEF) 5073ACCMJW WALL MOUNT JUNCTION BOX (2 STRAIN RELIEF) 5073ACCMSP GROUND SPIKE MOUNT 5073ACCMSX EXTENSION 5073ACCMST TREE STRAP 5073ACCMTB TREE MOUNT JUNCTION BOX 5073ACCPOL1024ME 102MM POLE 4 METER TALL 5073ACCPOLCLA DUAL 102MM POLE CLAMP WITH JUNCTION BOX CONCOLDC5... -
Page 6: Size & Weight
Size and Weight 5.5” 7.25” 10” 0.5” NPT Fixture Size: 7.25” X 5.5” X 10” Fixture Weight: 3.4 lb Packaged Size: 6.5” X 7” X 11.5” Packaged Weight: 4.5 lb... -
Page 7: Installation
Installation Caution! 1. The Installation must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injures, if you have doubts concerning the safety do not install. 3 Unit is to be 24 inches away from flammable materials. 4. -
Page 8: Warranty
General Terms & Conditions 1. All resellers must have approved and signed Reseller Application on file, including their respective state tax information and W-9. Applications are re-evaluated on a fiscal calendar year basis to assure business integrity and tax status. 2. -
Page 9: Customer Service
Customer Support MEGA-Lite has a customer support line to provide set-up help and to answer any questions should you encounter a problem. Please visit our website for any other related technical documents. For service related issues, please contact our service dept. Monday - Friday 9am to 6pm CST (210)684-2600 Service@mega.lighting...
