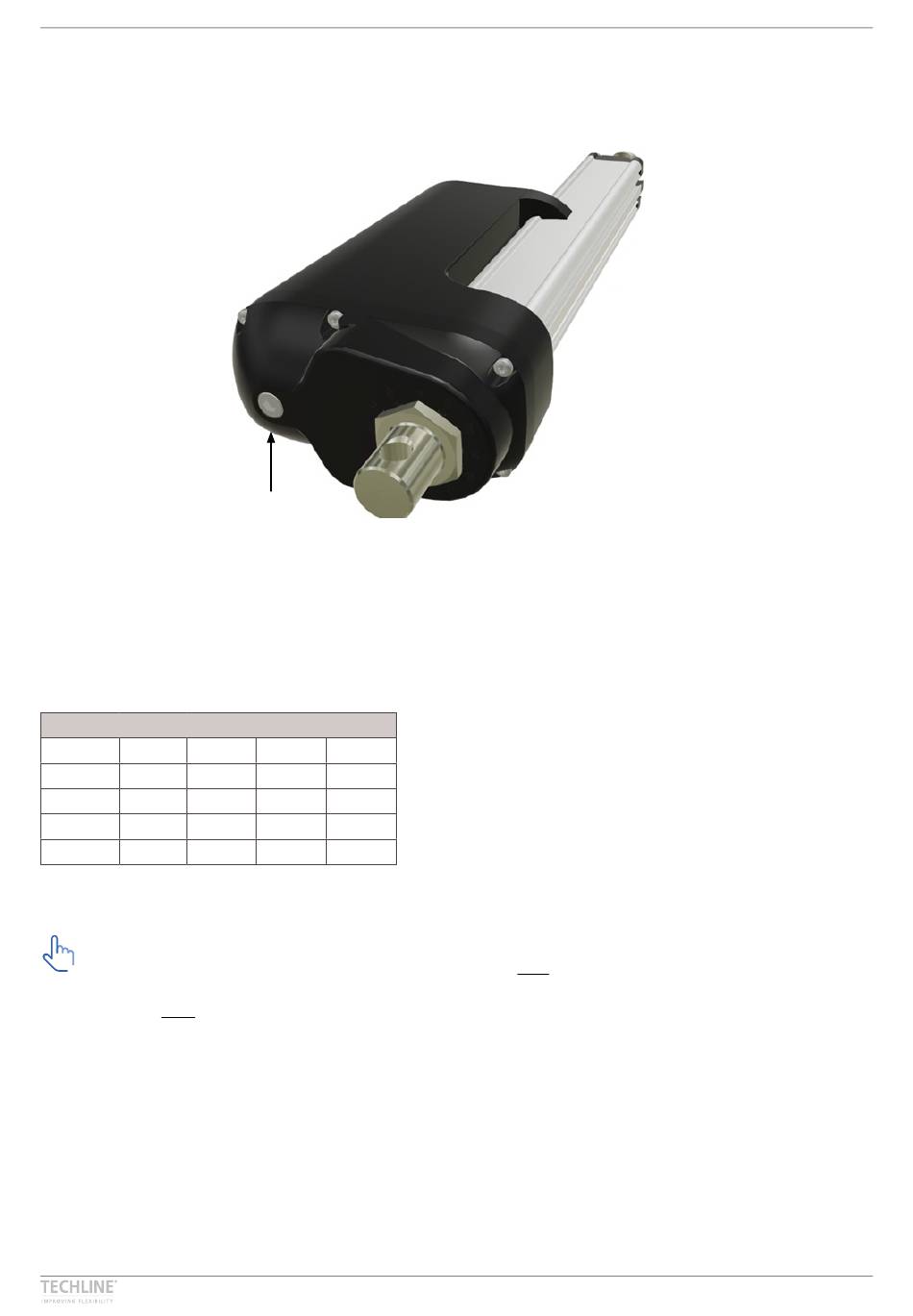

Manual hand crank:
The manual Hand Crank can be used in the case of a power failure
6 mm Allen key
The cover over the allen key socket must be unscrewed before the allen key can be inserted and the hand
crank operated�
Hand crank torque: 6-8 Nm
Hand crank rpm: Max� 65
Piston rod movement per turn:
8 mm 12 mm
Gear F - 11 mm
Gear G - 6 mm
Gear H 3 mm 4 mm
Gear E - -
• The power supply has to be disconnected during manual operation
• If the actuator is operated as a hand crank, it must only be operated by hand,
otherwise there is a potential risk of overloading and thereby damaging the actuator
- do NOT use power tools for the hand crank!
• After using the hand crank, the ingress protection will be less than IP66 once the
plug is removed
• After using the hand crank, always return the actuator to the most inward position�
Failing to do so can damage the actuator and/or the application it is used for
The manual hand crank must never be used in an IECEx/ATEX environment, as it is not possible to verify
that the actuator is proper sealed when the hand crank has been used�
The actuator must not be used in an IECEx/ATEX environment, if the warning sticker is missing or shows
sign of having been removed from the bottom of the actuator�
16 mm 20 mm
14 mm 18 mm
8 mm 10 mm
5 mm 7 mm
- 27 mm
and is only intended for emergency use.
