Mounting of cables

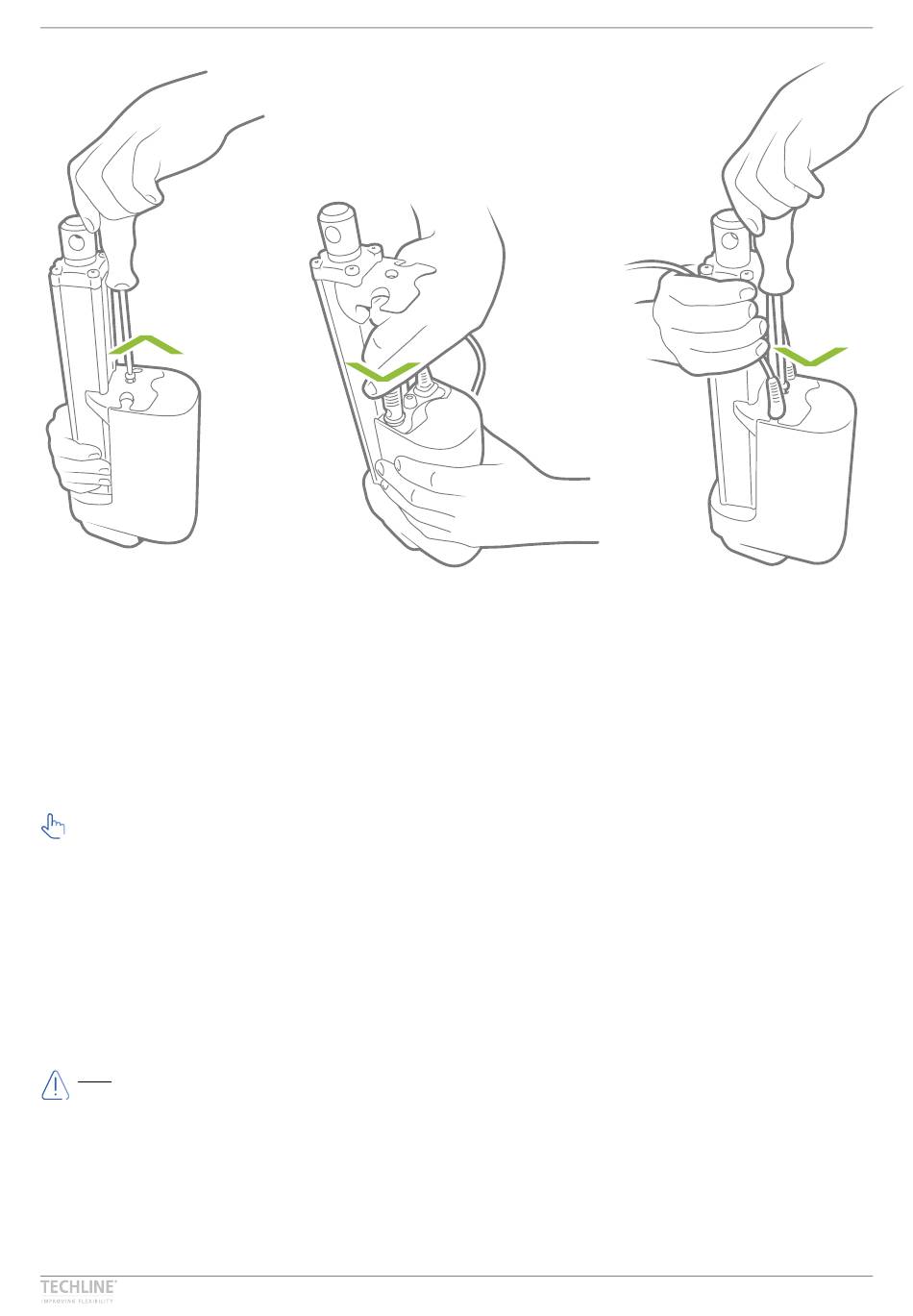

1� Unscrew the cover

and remove the two

blind plugs�

When changing the cables on a LINAK

protect the plugs and pins� Before the new cable is mounted, we recommend that the socket is greased

with vaseline, to keep the high IP protection and ensure an easy mounting� Please be sure that the plug

is in the right location and fully pressed in before the cable lid is mounted�

Please note that if the cables are mounted and dismounted more than 3 times the plugs can be

damaged� Therefore, we recommend that such cables are discarded and replaced�

Also note that the cables should not be used for carrying the actuator�

We recommend to take some precaution and design the wire connection in a way, where the cable end

is kept inside a closed, protected area to guarantee the high IP protection�

NOT valid for ATEX cables, please refere to the ATEX section for correct cable mounting on ATEX

actuators�

2� Plug in the

power cable and/or

the signal cable�

actuator, it is important that this is done carefully, in order to

Produktnavn | 21

3� Slide the cover onto the

actuator�

The torque of the cover screw

is approx� 3�5 ± 0�3 Nm

TORX 25IP
