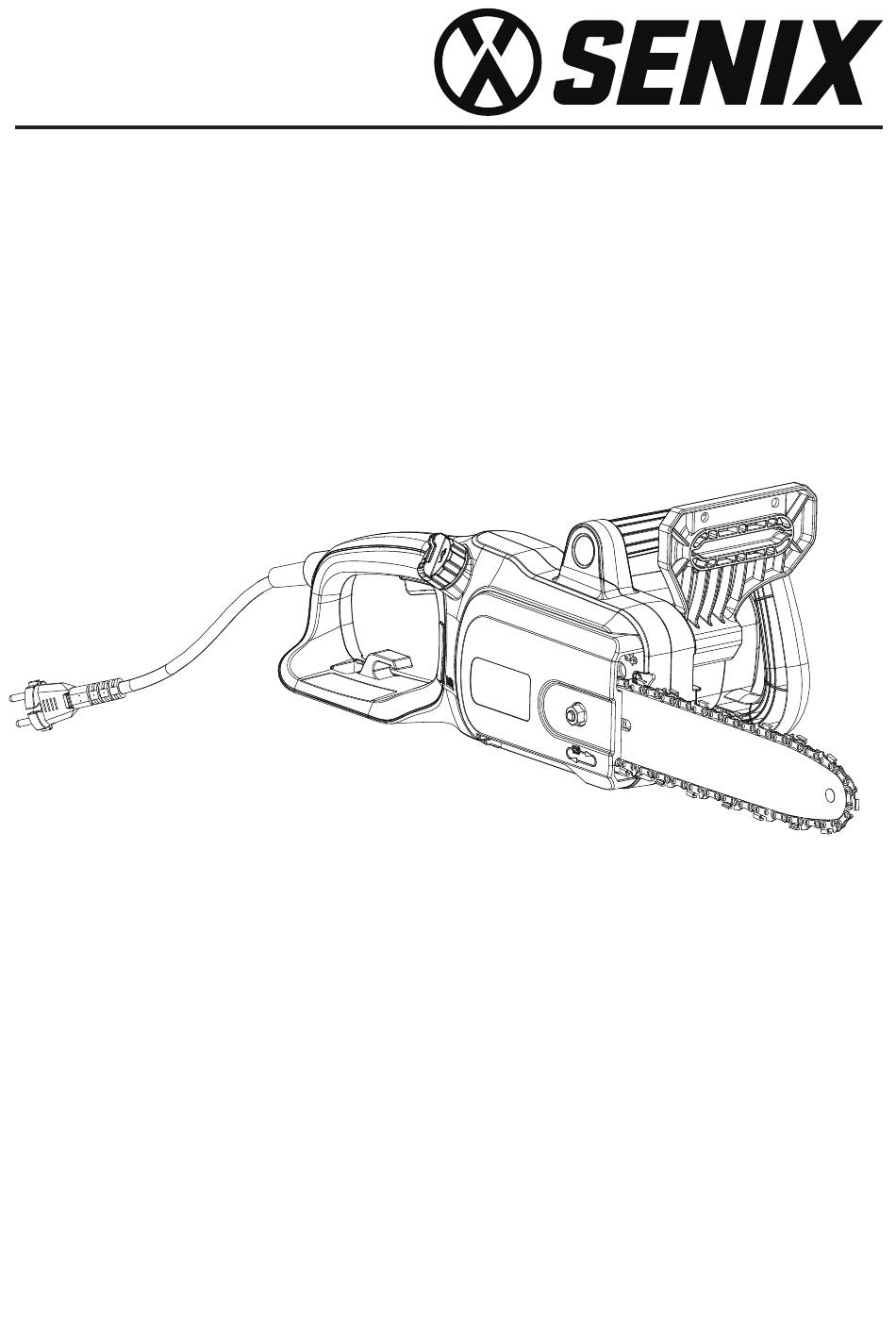

Operator's manual

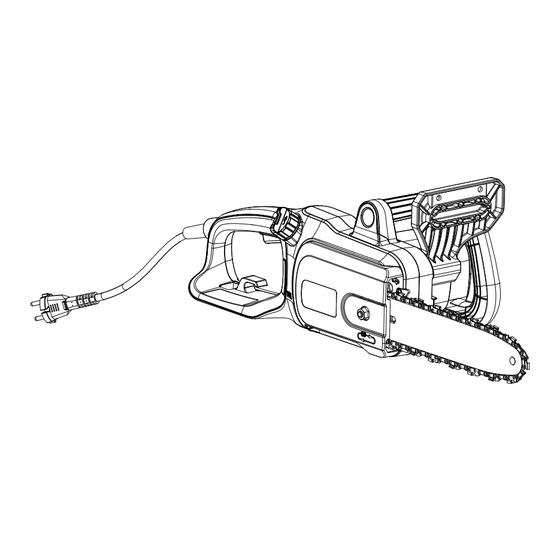

220V-240V Electric Chain Saw
EN
For customer service please find all information on www.senixtools.com.
CAUTION:BEFORE USING THIS PRODUCT,READ THIS MANUAL AND FOLLOW ALL ITS
SAFETY RULES AND OPERATING NSTRUCTIONS.
ORIGINAL INSTRUCTIONS
Model: CSE18-L-EU
Advertisement
Related Manuals for Senix CSE18-L-EU
Summary of Contents for Senix CSE18-L-EU
- Page 1 Operator’s manual Model: CSE18-L-EU 220V-240V Electric Chain Saw For customer service please find all information on www.senixtools.com. CAUTION:BEFORE USING THIS PRODUCT,READ THIS MANUAL AND FOLLOW ALL ITS SAFETY RULES AND OPERATING NSTRUCTIONS. ORIGINAL INSTRUCTIONS...
- Page 2 SAFETY & INTERNATIONAL SYMBOLS This operator’s manual describes safety and international symbols and pictographs that may appear on this product. Read the operator’s manual for complete safety, assembly, operating and maintenance and repair information. Objects thrown by the product could hit the Caution / Warning.
- Page 3 TABLE OF CONTENTS SAFETY WARNINGS..............3 KNOW YOUR UNIT..............8 SPECIFICATIONS*..............9 CHAIN SAW PREPARATION............10 OPERATION................12 SAWING TECHNIQUES............14 MAINTENANCE AND ADJUSTMENTS........16 PARTS..................19 EC DECLARATION OF CONFORMITY........21 SAFETY WARNINGS General power tool safety warnings outlets will reduce risk of electric shock. 2. Avoid body contact with earthed or grounded surfaces, such as pipes, WARNING: radiators, ranges and refrigerators.
- Page 4 alcohol or medication. A moment of off. Any power tool that cannot be inattention while operating power tools controlled with the switch is dangerous may result in serious personal injury. and must be repaired. 2. Use personal protective equipment. 3. Disconnect the plug from the power Always wear eye protection.
- Page 5 CHAIN SAW SAFETY WARNINGS brush and saplings. The slender material may catch the saw chain and 1. Keep all parts of the body away from be whipped toward you or pull you off the saw chain when the chain saw is balance.
- Page 6 you should take several steps to keep your VIBRATION AND NOISE REDUCTION cutting jobs free from accident or injury. To reduce the impact of noise and vibration Kickback is the result of tool misuse and/ emission, limit the time of operation, use or incorrect operating procedures or low-vibration and low-noise operating conditions and can be avoided by taking...
- Page 7 remove buttress roots. All of the wooden and the medical implant manufacturer before operating this product! objects intended to be cut with this chain saw should be no thicker than the guide bar's maximum cutting capabilities. Do not Attention! use it for cutting metals,plastic and other Through poor conditions of the electrical commercial use.
- Page 8 KNOW YOUR UNIT Model: CSE18-L-EU For basic limbing,felling, woodcutting,and remove buttress roots. Front Handle On/off switch Front hand guard (Chain brake lever) Lock-off button Saw chain Rear handle Guide bar Power cord with plug Retaining nut Cable strain relief Cover...
- Page 9 SPECIFICATIONS* Model CSE18-L-EU Rated Voltage 220V-240V/50Hz Motor type Universal Motor Rated input power 1800W No-Load speed 7500RPM Maximum chain speed 14 m/s Oil tank capacity 120 ml 292mm/11.5" Cutting length Sound pressure level =96.3 dB(A) (EN 60745-1, EN 60745-2-13) =3.0 dB(A) Measured sound power level =107.3 dB(A)
- Page 10 CHAIN SAW PREPARATION UNPACKING NOTE: The saw chain must be tensioned properly in order to ensure safe operation. The chain tension is optimal if the saw chain can be lifted WARNING: 1/8 inch (3 mm) from the center of the chain bar. Since the saw chain heats up during operation, If any part of the Chain Saw is missing or damaged, its length can therefore fluctuate.
- Page 11 FILLING THE AUTO OIL SYSTEM ASSEMBLE THE GUIDE BAR AND SAW CHAIN CAUTION! 1. Place the unit on a suitable flat surface with the front handle facing upward. The chain saw is NOT supplied filled with oil. It is 2. Loosen the retaining nut with the spanner and essential to fill with oil before use.Never operate the remove it together with the cover (Fig.
- Page 12 OPERATION PREPARATION PREVENTING KICKBACK Before each use, check the following items to ensure The term kickback refers to when the saw suddenly safe working conditions. jumps up and back. This is usually caused by the work piece coming into contact with the chain bar tip or the CHAIN SAW: Before beginning work, inspect the chain clamping of the saw chain.
- Page 13 KICKBACK BRAKE The kickback brake is a safety mechanism activated by the front hand guard. When kickback occurs, the saw chain stops immediately (Fig. 7). The following function check should be carried out before each use. The purpose of the chain brake testing is to reduce the possibility of injury due to kickback: 1.
- Page 14 SAWING TECHNIQUES IMPORTANT: It is recommended that first-time user Description of felling: escape routes should, as a minimum practice, cutting logs on a saw-horse or cradle. Felling direction • Saw off the lower branches on the tree first. By doing so, it is easier for the cut branches to fall to the ground.
- Page 15 FELLING BACK A CUT Log supported one end Make the felling back cut at least 50 mm higher than the horizontal notching cut (Fig. 9). Keep the felling back 2nd cut overbuck (2/3 diameter) cut parallel to the horizontal notching cut. Make the to meet 1st cut (to avoid pinching) felling back cut so enough wood is left to act as a hinge.
- Page 16 MAINTENANCE AND ADJUSTMENTS CLEANING/STORAGE • Clean the moulded plastic housing of the chain saw using a soft brush and clean cloth. • DO NOT use water, solvents or polishes. • Remove all debris, especially from the motor cooling vents. • Remove and brush clean the cover, chain and chain bar after 1 to 3 hours of use.
- Page 17 To sharpen the chain: 1. Using protective gloves, ensure the chain is correctly tensioned on the guide bar. 2. Use a round file with a diameter 1.1 times the cutting tooth depth. Make sure 20% of the file diameter is above the cutter’s top plate (Fig.
- Page 18 REPLACING THE SAW CHAIN AND CHAIN WARNING: Do not connect the chain saw to extension cord and power source before it is completely assembled. Always use gloves when handling the chain. WARNING: When handling saw chains, always wear protective gloves. APPROVED SAW BAR/SAW CHAIN: Replace chain when cutters are too worn to sharpen or when chain breaks.
