Wellbeing
- Jumper Valve
Installation and Maintenance Instructions
WLJV150PLTC
WLJV150PRTC
technical data
Working Pressure Range
Maximum Static Pressure
Maximum Working
Temperature
Inlet Connection
Flow Rate
Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.
Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
Reference should also be made to the Australasian Health Facility Guidelines (AHFG), ABCB and Local Government
regulations when considering the choice of, and the installation of these products.
This product must be installed and commissioned by a qualified plumber.
For use with potable water only.
NOTE: Enware Australia advises:
1. Due to ongoing Research and Development, specifications may change without notice.
2. Component specifications may change on some export models.
I00483_19 Jun 2024
1300 369 273 | info@enware.com.au | enware.com.au

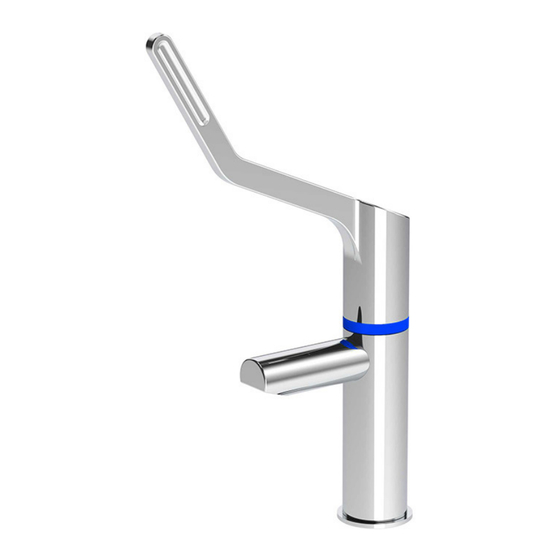

Leva 150mm Pillar Tap
®
Min 50 kPa
Max 500 kPa
1200 kPa
95°C (Jumper Valve)
1/2" BSP
5.5 L/min (WELS 5 Star)
4 L/min (WELS 6 Star)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Watts ENWARE Wellbeing Leva WLJV150PLTC
Summary of Contents for Watts ENWARE Wellbeing Leva WLJV150PLTC

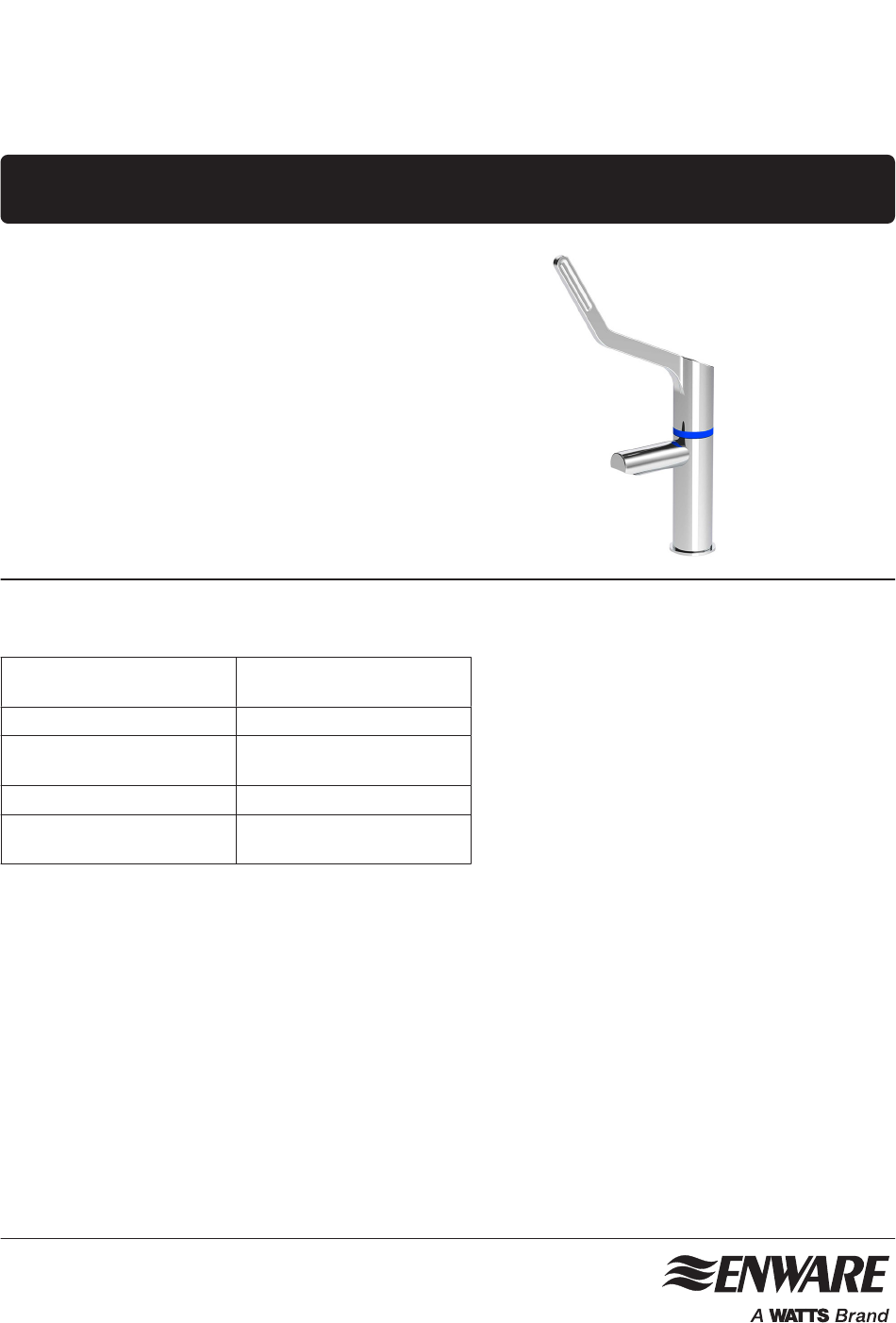

- Page 1 Wellbeing Leva 150mm Pillar Tap ® - Jumper Valve Installation and Maintenance Instructions WLJV150PLTC WLJV150PRTC technical data Working Pressure Range Min 50 kPa Max 500 kPa Maximum Static Pressure 1200 kPa Maximum Working 95°C (Jumper Valve) Temperature Inlet Connection 1/2” BSP Flow Rate 5.5 L/min (WELS 5 Star) 4 L/min (WELS 6 Star)
- Page 2 BENCH Handle plug 10 Jumper valve Grub screw M5 11 Frame Lever handle 150mm 12 Aerator Laminar 5.5lpm Cache TT Colour indicator ring (red/ yellow/ blue) 13 Aerator key Cache TT Screw M5x20 14 Dress ring Washer (Nylon) 15 Plastic washer Tooth washer M5 16 Fibre washer Spline adaptor...
- Page 3 installation • All supply lines must be flushed thoroughly to remove debris 22 - 25 prior to the installation of this product. Strainers (40 mesh) are recommended if debris is an ongoing problem. • A pressure reduction valve may be required to comply with the recommended maximum supply pressure and/or balanced pressure requirements.
- Page 4 5. Fit spline adaptor [8] onto spindle. Fit tooth washer [7] and washer [6], and fix in place using screw [5]. SEE IMAGE 04 6. Fit colour indicator ring [4] onto lever handle [3]. To do this, place an indicator ring on flat surface with the rebated edge facing up.
- Page 5 maintenance CLEAN AERATOR Clean aerator [12] periodically. Unscrew the aerator using aerator key [13], and rinse it under running water. CLEANING Enware products should be cleaned with a soft damp cloth using only mild liquid detergent or soap and water. Do not use cleaning agents containing a corrosive acid, scouring agent or solvent chemicals.
- Page 6 spare parts BENCH DESCRIPTION PART CODE Lever handle 150mm Parts: [1] [2] [3] [4-red,yellow,blue] [5] [6] [7] [8] WLJS-150378 Colour indicators Parts: [4-red,yellow,blue] WLJS398 SBA cold - RTC (Clockwise to close) Parts: [5] [6] [7] [9] [10] WLJS380RTC SBA hot - LTC (Anti-clockwise to close) Parts: [5] [6] [7] [9] [10] WLJS380LTC Spline adaptor Parts: [8] 890079...
- Page 7 dimensions 1/2" (BSP) Clockwise to Close Anti-Clockwise to Close All measurements are in millimetres. www.enware.com.au Page 7 © Enware Pty Ltd...
- Page 8 - WATTS AUSTRALIA EFFECTIVE FROM 20 November 2023 3. Our responsibilities This Warranty Statement applies to products supplied by Australian Valve (a) In the event that the Supplier is reasonably satisfied that there is a Group Pty Ltd (ACN 068 227 270) (AVG) or Enware Pty Ltd (ACN 662...
