Installation and Maintenance Instructions
WLJV150WLTC
WLJV150WRTC
technical data
Working Pressure Range
Maximum Static Pressure
Maximum Working
Temperature
Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.
Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
Reference should also be made to the Australasian Health Facility Guidelines (AHFG), ABCB and Local Government
regulations when considering the choice of, and the installation of these products.
This product must be installed and commissioned by a qualified plumber.
For use with potable water only.
NOTE: Enware Australia advises:
1. Due to ongoing Research and Development, specifications may change without notice.
2. Component specifications may change on some export models.
I00460_20 Jun 2024
1300 369 273 | info@enware.com.au | enware.com.au

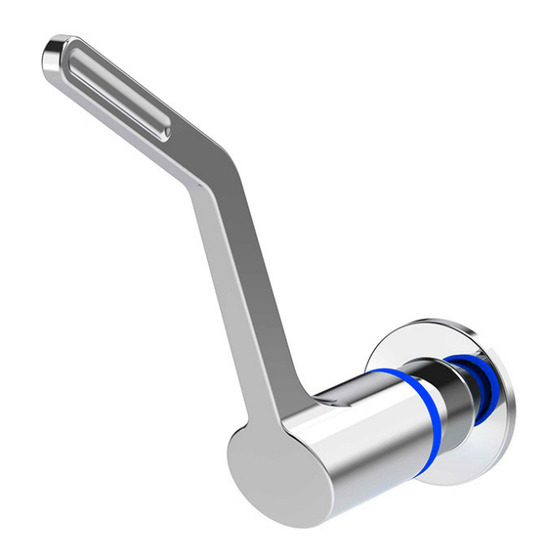

Leva 150mm Recess Adaptor
®
Min 50 kPa
Max 500 kPa
1200 kPa
95°C (Jumper Valve)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Watts ENWARE Wellbeing Leva WLJV150WLTC
Summary of Contents for Watts ENWARE Wellbeing Leva WLJV150WLTC

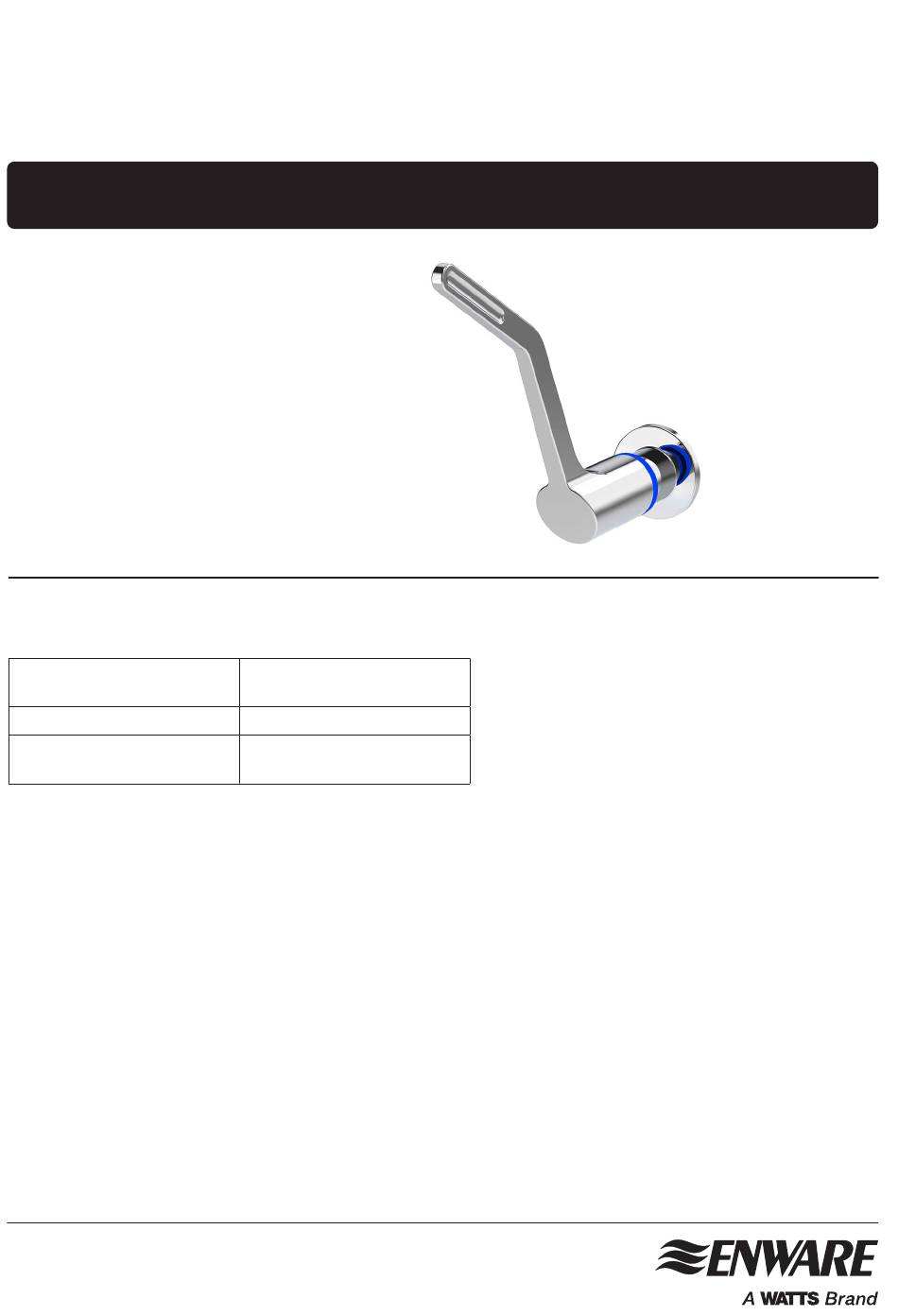

- Page 1 Wellbeing Leva 150mm Recess Adaptor ® - Jumper Valve Installation and Maintenance Instructions WLJV150WLTC WLJV150WRTC technical data Working Pressure Range Min 50 kPa Max 500 kPa Maximum Static Pressure 1200 kPa Maximum Working 95°C (Jumper Valve) Temperature Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500. Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
- Page 2 Handle plug Washer (Nylon) Grub screw M5 Tooth washer M5 Lever handle 150mm 10 Spline adaptor Colour indicator ring 11 SBA spindle (red/ yellow/ blue) 12 Fibre washer Flange 13 Jumper valve O-ring BS032 Screw M5x20 www.enware.com.au Page 2 © Enware Pty Ltd...
- Page 3 installation • All supply lines must be flushed thoroughly to remove debris WALL/TILE SURFACE prior to the installation of this product. Strainers (40 mesh) are recommended if debris is an ongoing problem. • A pressure reduction valve may be required to comply with the recommended maximum supply pressure and/or balanced pressure requirements.
- Page 4 4. Fit spline adaptor [10] onto spindle. Fit tooth washer [9] and washer [8], and fix in place using screw [7]. SEE IMAGE 06 5. Fit colour indicator ring [4] onto lever handle [3]. To do this, place an indicator ring on flat surface with the rebated edge facing up.
- Page 5 maintenance CLEANING Enware products should be cleaned with a soft damp cloth using only mild liquid detergent or soap and water. Do not use cleaning agents containing a corrosive acid, scouring agent or solvent chemicals. Do not use cream cleaners, as they are abrasive. Use of unsuitable cleaning agents may damage the surface.
- Page 6 spare parts DESCRIPTION PART CODE Lever handle 150mm Parts: [1] [2] [3] [4-red,yellow,blue] [7] [8] [9] [10] WLJS-150378 Colour indicators Parts: [4-red,yellow,blue] WLJS398 SBA hot - RTC (Clockwise to close) Parts: [7] [8] [9] [11] [12] [13] WLJS382RTC SBA cold - LTC (Anti-clockwise to close) Parts: [7] [8] [9] [11] [12] [13] WLJS382LTC Spline adaptor Parts: [10] 890079...
- Page 7 dimensions 5/8" (BSP) 197 - 210 5/8" (BSP) 185 - 201 Clockwise to Close Anti-Clockwise to Close All measurements are in millimetres. www.enware.com.au Page 7 © Enware Pty Ltd...
