Installation
options
On base cabinet with door
When constructing the cabinet, suitable precautions must be
taken to prevent contact with the casing of the hob, which
becomes very hot during operation. The recommended method

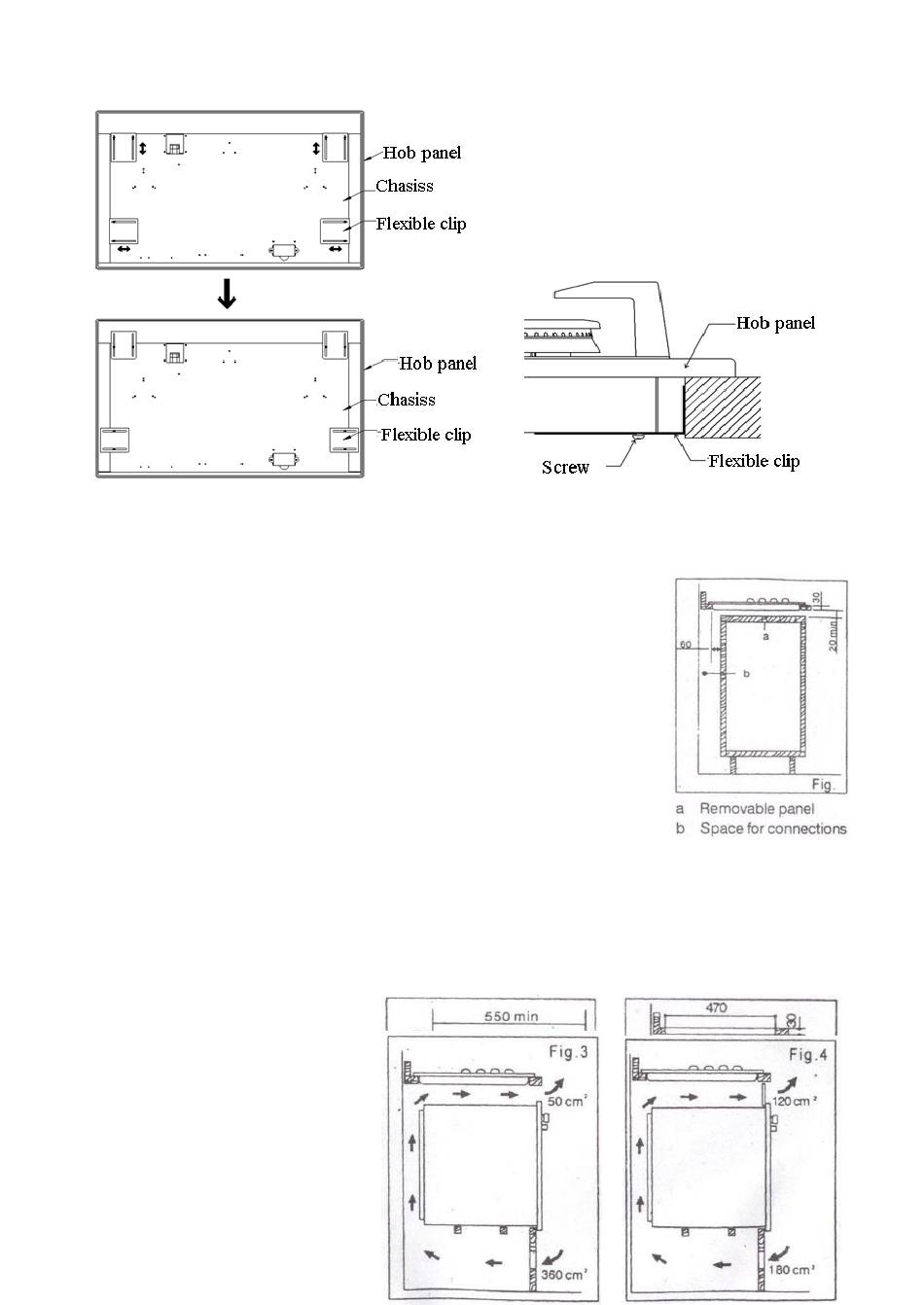

for overcoming this problem is illustrated in fig.1.
The panel underneath the hob must be easily removable to allow the hob to be locked
in position and released in case of servicing work.
On base cabinet with oven
The installation compartment
must have the dimensions
shown in figures 2 and 3 and
must have supports to allow
satisfactory ventilation. Two
possible methods for avoiding
overheating are illustrated in
figures 3 and 4. The electrical
