These hobs are designed for installation in fitted kitchen units up to 600mm deep with
suitable characteristics.
Any cabinet side panels taller than the height of the hob itself must be at least 150mm
away from the opening into which the hob is inserted.

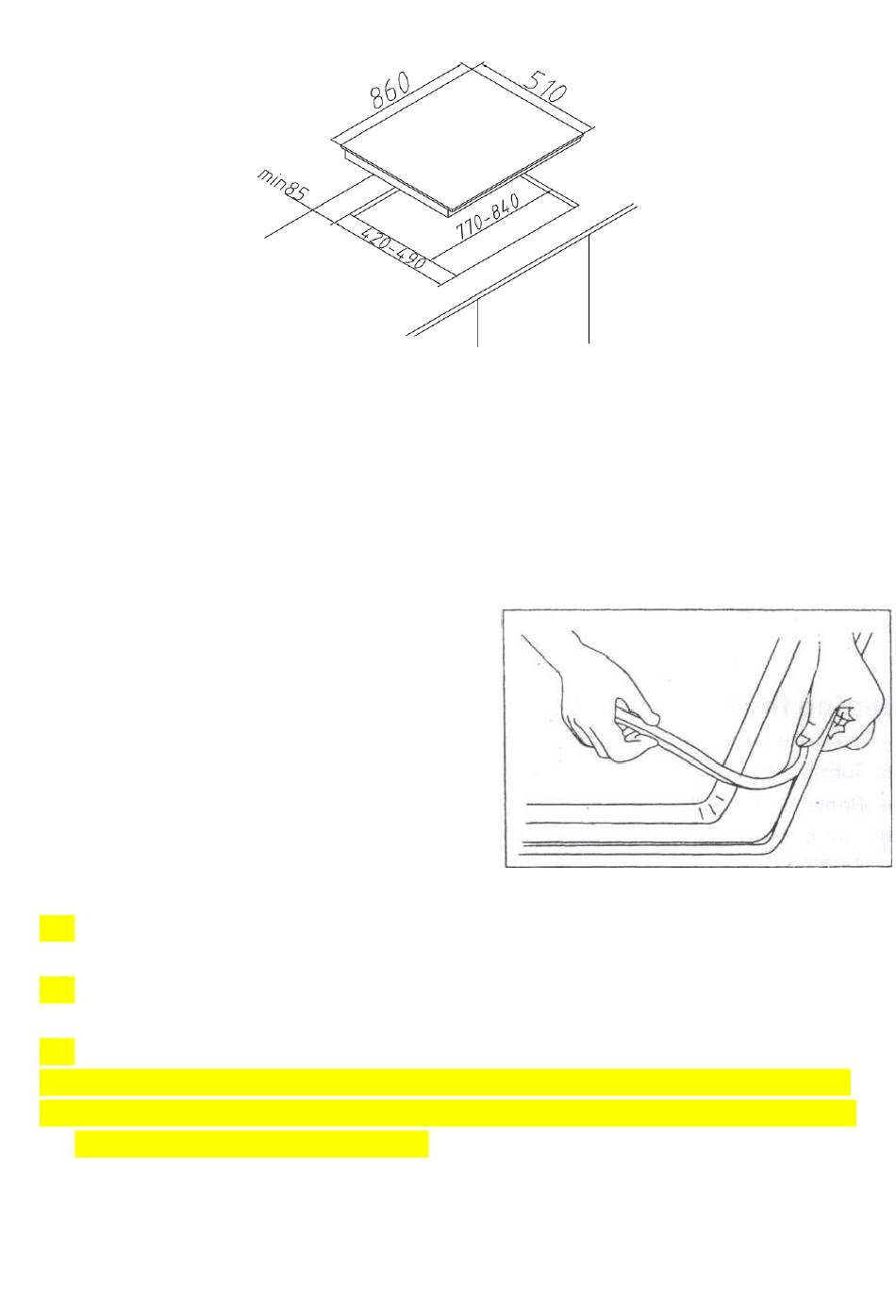

The dimensions of the hob and the installation opening are shown in the illustration.
Insertion and fixing
Before inserting the hob in the installation
opening, place the special gasket around the
bottom edge of the hob.
It is important to fix this gasket evenly,
without gaps or overlapping, to prevent liquid
from seeping underneath the hob.
1) Remove the pan stands and the burner caps and turn the hob upside down, taking
care not to damage the ignition plugs and the thermocouples.
2) Place the gasket around the bottom edge of the hob as shown in the illustration on
the right.
3) Place the hob into the cabinet.
4) Loosen the 8 pcs of screws fastening the flexible clips at two sides of the chassis.
5) Adjust the flexible clips until they are well in contact with the sides of cabinet and
then tighten up these 8 pcs of screws.
