45MCCAQ

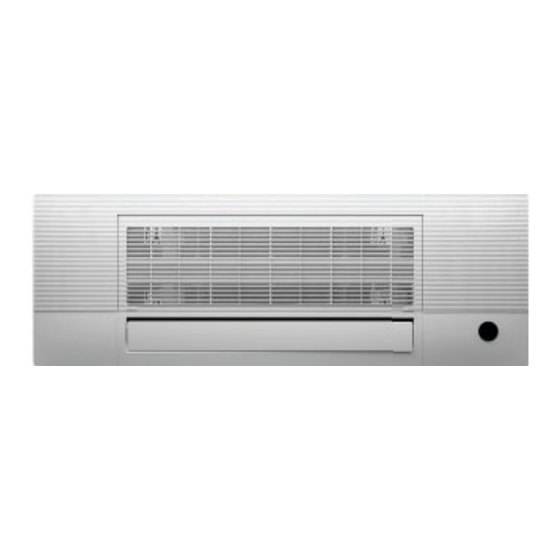

Split-Type One-Way Cassette Indoor Unit Ductless System
Sizes 6K, 9K, 12K, 18K
Split-Type One-Way Cassette Indoor Unit Ductless System
Please read this Owner's Information Manual carefully before installing and using this appliance and keep this manual for future
reference.
For your convenience, please record the model and serial numbers of your new equipment in the spaces provided. This information, along
with the installation data and dealer contact information, will be helpful should your system require maintenance or service.
UNIT INFORMATION
Model # _______________________________
Serial # ________________________________
INSTALLATION INFORMATION
Date Installed ___________________________
D5FSOAH
Owners Manual
Sizes 6K - 18K
Owner's Manual
A NOTE ABOUT SAFETY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
FCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
WIRELESS REMOTE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . 8
UNIT SPECIFICATIONS AND FEATURES . . . . . . . . . . . . . . . . . 12
OPERATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
CARE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
NOTE TO EQUIPMENT OWNER:
DEALERSHIP CONTACT INFORMATION
Company Name: ______________________
Address:_____________________________
Phone Number:________________________
Technician Name:______________________
Specifications subject to change without notice.
TABLE OF CONTENTS
PAGE
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Carrier D5FSOAH
Summary of Contents for Carrier D5FSOAH
- Page 1 D5FSOAH 45MCCAQ Owners Manual Split-Type One-Way Cassette Indoor Unit Ductless System Sizes 6K, 9K, 12K, 18K Split-Type One-Way Cassette Indoor Unit Ductless System Sizes 6K - 18K Owner’s Manual TABLE OF CONTENTS PAGE A NOTE ABOUT SAFETY....... . 2 GENERAL .
- Page 2 D5FSOAH: Owner’s Manual A NOTE ABOUT SAFETY WARNING This is the safety-alert symbol Anytime you see this symbol in manuals, instructions, and on the unit, be PERSONAL INJURY, DEATH AND / OR PROPERTY DAMAGE aware of the potential for personal injury. There are three levels of...
- Page 3 D5FSOAH: Owner’s Manual –-the type of ventilation of the location or of the appliance. Information Servicing –-piping material, pipe routing, and installation shall include protection from physical damage in operation and service, and be 1. Checks to the area in compliance with national and local codes and standards, such as...
- Page 4 D5FSOAH: Owner’s Manual • Refrigeration pipe or components are installed in a position where they The refrigerant charge shall be recovered into the correct recovery cylinders. are unlikely to be exposed to any substance which may corrode Charging must be performed by liquid charging method. For appliances...
- Page 5 D5FSOAH: Owner’s Manual j. When the cylinders have been filled correctly and the process Table 1 — Symbols on the indoor or outdoor unit complete, make sure that the cylinders and the equipment are This symbol shows that this appliance used a flammable refrigerant.
- Page 6 D5FSOAH: Owner’s Manual For Class B Digital Device NOTE: This equipment has been tested and found to comply with the This device complies with part 15 of the FCC Rules. Operation is subject limits for a Class B digital device, pursuant to part 15 of the to the following two conditions: (1) This device may not cause harmful FCC Rules.
- Page 7 D5FSOAH: Owner’s Manual For R-454B Refrigerant Charge Amount and Minimum Room Area: The machine you purchased may be one of the types in the table below. The indoor and outdoor units are designed to be used together. Please check the machine you purchased: The indoor unit should be installed at least 7.6 feet / 2.3 meters above the floor;...
- Page 8 D5FSOAH: Owner’s Manual WIRELESS REMOTE CONTROL Before you begin using your new air conditioner, make sure to familiarize yourself with its remote control. The following is a brief introduction to the remote control. See page 9 through page 13 for more information on these controls.
- Page 9 D5FSOAH: Owner’s Manual Wireless Remote Control LCD Screen Indicators Information appears when the remote controller is powered up. Active clean feature display Not applicable for this unit Fresh feature display Intelligent Eye Sleep mode display Not applicable for this unit...
- Page 10 D5FSOAH: Owner’s Manual Remote Control BASIC REMOTE CONTROL OPERATION Before operation, ensure the unit is plugged in and power is available. CAUTION COOL Mode EQUIPMENT DAMAGE HAZARD Failure to follow this caution may result in equipment damage. Handle the control with care and avoid getting the control wet.
- Page 11 D5FSOAH: Owner’s Manual Setting Temperature NOTE: FAN Speed can not be set in the AUTO mode. The operating temperature range for units is 60-86°F (16-30°C)/(68-82 °F DRY Mode (20-28°C) (depends on model). You can increase or decrease the set temperature in 1°F (0.5°C) increments.
- Page 12 D5FSOAH: Owner’s Manual 1. Turn the unit on by pushing ON/OFF. Active Clean Function NOTE: If there is a preference for °C rather than °F (default), press The Active Clean Technology washes away dust, mold, and grease that and hold the + and - temperature set point buttons together may cause odors when it adheres to the heat exchanger by automatically for approximately 3 seconds.
- Page 13 D5FSOAH: Owner’s Manual When Pre-Heating/ Defrost Feature is Activated Displays Temperature, Operation Feature, and Error Codes When 46°F/8° Heating Feature is Turned On When Active Clean Feature is Turned On When Wireless Module Air Intake Grille Enters AP Mode Air Filter...
- Page 14 D5FSOAH: Owner’s Manual • DO NOT place objects near the air inlet and outlet of the unit. • Clean the air filter every two weeks. SLEEP Operation • Adjust louvers properly and avoid direct airflow. • Closing curtains during heating also helps keep the heat in.
- Page 15 D5FSOAH: Owner’s Manual NOTE: In households with animals, you will have to periodically wipe down the grille to prevent animal hair from blocking airflow. 1. Press the circular position to open the two screw covers then remove the two screws.
- Page 16 D5FSOAH: Owner’s Manual TROUBLESHOOTING Maintenance - Pre Season Inspection After long periods of non-use, or before periods of frequent use, do the CAUTION following. If any of the following conditions occurs, turn off your unit immediately! The power cord is damaged or abnormally warm...
- Page 17 D5FSOAH: Owner’s Manual Troubleshooting When problems occur, check the following points before contacting a repair company. Table 7 — Troubleshooting PROBLEM PROBABLE CAUSES SOLUTION Temperature setting may be higher than ambient room Lower the temperature setting temperature The heat exchanger on the indoor or outdoor unit is dirty...
- Page 18 There is a “beeping” noise coming from the indoor unit, which is normal in this case. For additional diagnostic information, refer to the Service Manual. © 2024 Carrier. All rights reserved. Edition Date: 7/24 Catalog No: D5FSOAH-01OM...
