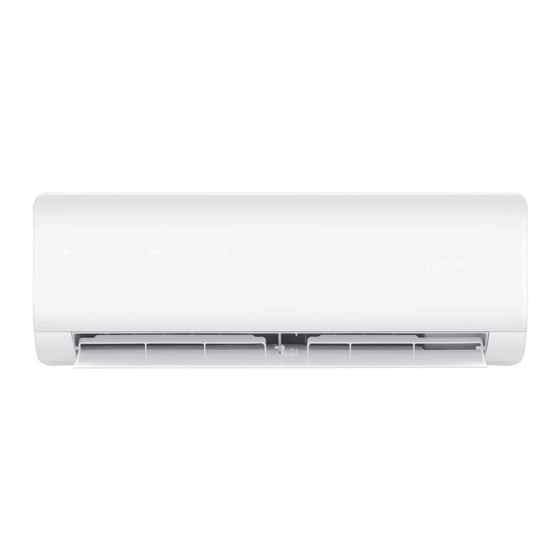

Fig. 1 - Sizes 09K-24K
Please read this Owner's Information Manual carefully before installing and using this appliance and keep this manual for future
reference.
For your convenience, please record the model and serial numbers of your new equipment in the spaces provided. This information, along
with the installation data and dealer contact information, will be helpful should your system require maintenance or service.
UNIT INFORMATION
Model # _______________________________
Serial # ________________________________
INSTALLATION INFORMATION
Date Installed ___________________________
D5FEHAA
Owners Manual
High Wall Cooling Only
Sizes 09K - 24K
A NOTE ABOUT SAFETY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
BEFORE INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
FCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
WIRELESS REMOTE CONTROLLER . . . . . . . . . . . . . . . . . . . . . . 8
GETTING TO KNOW YOUR AC . . . . . . . . . . . . . . . . . . . . . . . . . 13
ADDITIONAL FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
CARE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
ERROR CODES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
NOTE TO EQUIPMENT OWNER:
DEALERSHIP CONTACT INFORMATION
Company Name: ______________________
Address:_____________________________
Phone Number:________________________
Technician Name:______________________
Specifications subject to change without notice.

TABLE OF CONTENTS

PAGE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D5FEHAA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Carrier D5FEHAA

Summary of Contents for Carrier D5FEHAA

  • Page 1: Table Of Contents

    D5FEHAA Owners Manual High Wall Cooling Only Sizes 09K - 24K TABLE OF CONTENTS PAGE A NOTE ABOUT SAFETY....... . 2 GENERAL .

  • Page 2: A Note About Safety

    D5FEHAA: Owner’s Manual A NOTE ABOUT SAFETY WARNING This is the safety-alert symbol Anytime you see this symbol in manuals, instructions, and on the unit, be aware of the potential for personal injury. There are three levels of This appliance is not intended for use by persons (including children)
  • Page 3 D5FEHAA: Owner’s Manual 1. Installation (where refrigerant pipes are allowed) b. The test pressure after removal of pressure source shall be Any person who is involved with working on or breaking into a maintained for at least 1 h with no decrease of pressure...
  • Page 4 D5FEHAA: Owner’s Manual 6. No ignition sources 13. Detection of flammable refrigerants No person carrying out work in relation to a REFRIGERATING Under no circumstances shall potential sources of ignition be used in SYSTEM which involves exposing any pipe work shall use any the searching for or detection of refrigerant leaks.
  • Page 5 D5FEHAA: Owner’s Manual - Ensure that contamination of different refrigerants does not occur 17. Labeling when using charging equipment. Hoses or lines shall be as short as Equipment shall be labeled stating that it has been de-commissioned possible to minimize the amount of refrigerant contained in them.

  • Page 6: General

    D5FEHAA: Owner’s Manual GENERAL BEFORE INSTALLATION The indoor unit provides quiet, maximum comfort. In addition to cooling Pairing and/or heating, the indoor unit matched with an outdoor condensing unit The machine you purchased may be one of the types in the table below.

  • Page 7: Fcc

    D5FEHAA: Owner’s Manual This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 8: Wireless Remote Controller

    D5FEHAA: Owner’s Manual WIRELESS REMOTE CONTROLLER Before you begin using your new air conditioner, familiarize yourself with the remote control. MODE ON/OFF Turns the unit on or off. Scrolls through operation modes AUTO COOL as follows: TEMP HEAT Increases temperature in NOTE: HEAT mode is not 1°C (1°F) increments.

  • Page 9: Wireless Remote Control Lcd Screen Indicators

    D5FEHAA: Owner’s Manual WIRELESS REMOTE CONTROL LCD SCREEN INDICATORS Information is displayed when the remote controller is powered up. Active clean feature display Not applicable for this unit Not applicable for this unit Breeze Away display Sleep mode display Not applicable for this unit...

  • Page 10: Remote Controller

    D5FEHAA: Owner’s Manual Remote Controller Basic Remote Control Operation Before operation, ensure the unit is plugged in and power is available. CAUTION COOL Mode EQUIPMENT DAMAGE HAZARD Failure to follow this caution may result in equipment damage. Handle the control with care and avoid getting the control wet.
  • Page 11 D5FEHAA: Owner’s Manual AUTO Mode FAN Mode In AUTO mode, the unit automatically selects the COOL, or FAN, operation based on the set temperature. Boost Clean Swing Boost Clean Fig. 7 —FAN Mode 1. Press MODE to select the FAN mode.

  • Page 12: Remote Control Operation - Quick Start

    D5FEHAA: Owner’s Manual Remote Control Operation - Quick Start NOTE: When transmitting a command from the remote control to the unit, be sure to point the control toward the right side of the unit. The unit confirms receipt of a command by sounding an audible beep.

  • Page 13: Getting To Know Your Ac

    D5FEHAA: Owner’s Manual GETTING TO KNOW YOUR AC NOTE: Different models have different front panel sand display windows. Not all the indicators described below are available for the air conditioner you purchased. Please check the indoor display window of the unit you purchased. Illustrations in this manual are for explanatory purposes.

  • Page 14: Additional Features

    D5FEHAA: Owner’s Manual ADDITIONAL FEATURES Sleep Operation Use SLEEP to decrease energy use while you sleep. NOTE: Every time the air conditioner is powered on, the unit emits a buzzing sound to indicate that the product has been Press SLEEP on the remote control when in the COOL mode, the unit powered on normally.
  • Page 15 D5FEHAA: Owner’s Manual SETTING ANGLE OF AIR FLOW To Manually Operate the Unit • Do not set louver at too vertical an angle for long periods of time. CAUTION When using COOL or DRY mode, water could condense on the louver blade and drop on your floor or furnishings.

  • Page 16: Care And Maintenance

    D5FEHAA: Owner’s Manual CARE AND MAINTENANCE 3. If your filter has a small air freshening filter, unclip it from the larger filter. Clean this air freshening filter with a hand-held vacuum. WARNING (Front) (Back) The cooling efficiency of your unit and your health would be damaged for the clogged AC.
  • Page 17 D5FEHAA: Owner’s Manual Maintenance - Long Periods of Non-Use If you plan not to use your air conditioner for an extended period of time, do the following: Clean all filters Turn on FAN function until unit dries out completely Turn off the unit and...

  • Page 18: Troubleshooting

    D5FEHAA: Owner’s Manual TROUBLESHOOTING CAUTION If any of the following conditions occurs, turn off your unit immediately. • The field wiring cable is damaged or abnormally warm • You smell a burning odor • The unit emits loud or abnormal sounds •...
  • Page 19 D5FEHAA: Owner’s Manual Table 3 — Other Issues When troubles occur, check the following points before contacting a repair company. Problem Possible Causes Solution Lower the temperature setting Temperature setting may be higher than ambient room temperature Use Clean function by remote control to clean the affected...

  • Page 20: Error Codes

    Low ambient temp. protection IDUs mode conflict ---- NOTE: The digital tube will show FC in forced cooling mode. FC is not an error code. © 2024 Carrier. All rights reserved. Edition Date: 12/24 Catalog No: D5FEHAA-01OM A Carrier Company Replaces: New...
