PROTON PERSONA Manual

Product Features

To use the key
Press to release and fold the key in place

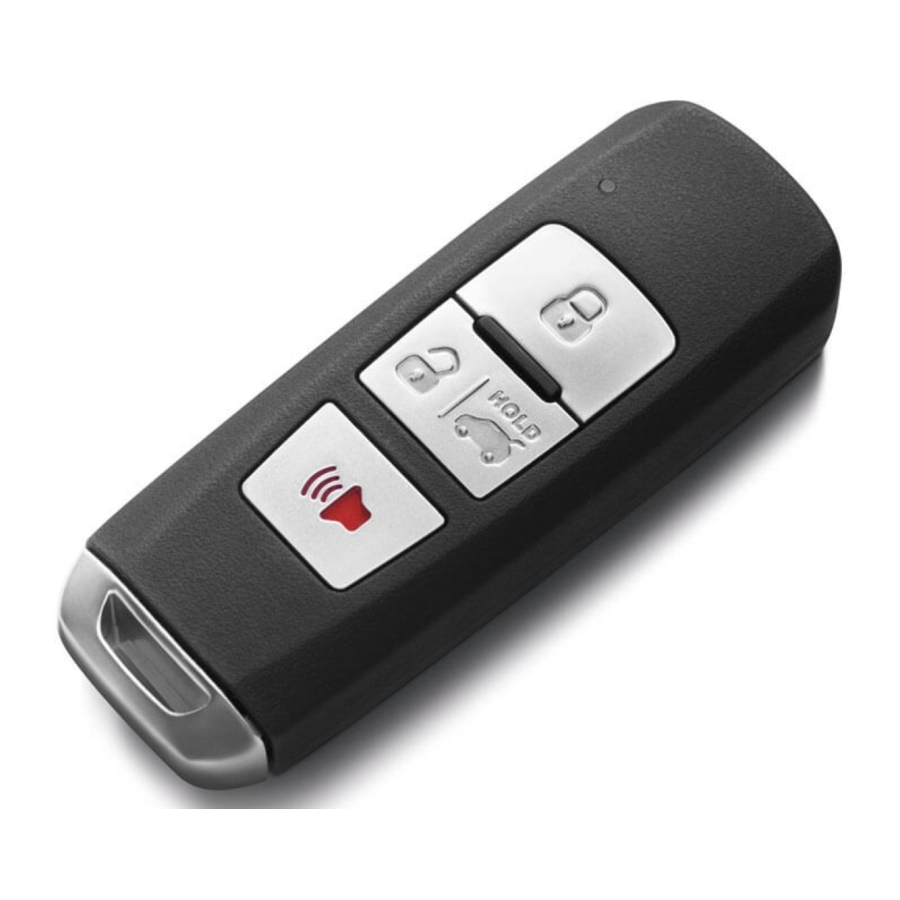

Remote keyless entry system

Central lock / unlock
Press to unlock all doors.
Press to lock all doors.

Panic alarm
Press to activate panic alarm.

Trunk lid remote release (for some types)
Press for more than 3 seconds to unlock the trunk lid.

Vehicle search
While the vehicle is in arm mode, press twice. The turn signal lights will flash three times to indicate the location of the vehicle.

Auto re-locking
When you press , the system will unlock all doors. If you do not open any doors, hood or trunk lid within 30 seconds, the system will re-lock all doors automatically.

Double Stage Unlocking
To change from central unlock mode to double stage unlock mode, press and simulteneously until the turn signal lights flash twice.

In Double Stage Unlock mode
When you press , only the driver's door is unlock.
When you press again, the other three doors will unlock.
To change from double stage unlock mode to central unlock mode, press and simulteneously until the turn signal lights flash twice.

Door operation and usage

To open the door from inside

To open the door, pull the inside handle towards you.

In central lock mode
Pull the inside handle towards you twice;
1st pull - all doors is unlock
2nd pull - the door will open

To open the door from outside

In case of emergency

1. Insert the key into the slot of the cover and twist. The cover will slightly open.

2. Open the cover

3. To unlock, insert the key. Then, turn the key clockwise.


USB interface and power socket

1. USB charging slot
2. USB charging slot
3. USB data slot
4. Power socket (12 V)
5. USB charging slots

The USB interface and power socket are located at the lower center panel. This connection can be used to plug in USB. The ignition switch must be in "ACC" or "ON" position.

Start stop button

(for some types)

This vehicle has a gear shift lock for additional anti-theft security. Follow the instructions for maximum security.

To START the engine

While the ignition is OFF;

1. Make sure the remote transmitter is inside the cabin area.


*: Forward direction
: Operating range (to start or to turn off the engine)

2. CVT model:
   The shift lever in P position

3. CVT model:
   While you press the brake pedal, press the start stop button.


To TURN OFF the engine

While the engine is running;

1. CVT model: Put the shift lever in P position

2. Press the start stop button.
   Make sure the indicator light is OFF.
   This condition indicates that the whole vehicle system is completely OFF.


Keyless Entry System

(for some types)

Operating range

*: Forward direction
: Operating range

Open the doors / trunk lid via Keyless Entry System
Operating range:

• 1.2 ~ 1.5 metres from driver's door handle
• 1 metre from trunk lid switch

Remote transmitter

Make sure you carry the remote transmitter with you to operate the keyless entry system.

To open the door via keyless entry

While the doors are locked;

1. Make sure the remote transmitter is within the operating range.
2. Press the keyless entry switch on the outer door handle of driver door within the operating range and open the door.


To open the trunk lid via keyless entry

While the doors are locked;

1. Make sure the remote transmitter is within the operating range.
2. Press the keyless entry switch under the rear garnish.


Note
For other features which are not stated in this quick guide, please refer to the complete owner's manual for details.

Tyre Pressure

Cold tyre inflation pressure
There is label that shows the recommended cold tyre pressure at your doorjamb.
Check the pressure of all tyres when these tyres are cold.

NOTE
The tyre pressure value shown at the picture might be different from your vehicle requirement. In this case, the actual label on your vehicle will prevail.
Tyres are cold when the vehicle is parked at minimum three hours or driven less than a kilometre.
After adjusting the tyre inflation pressure, check the tyres for any damage and air leaks.
Make sure again the rubber caps are reinstalled on the values.
