Summary of Contents for Proton X70 2024

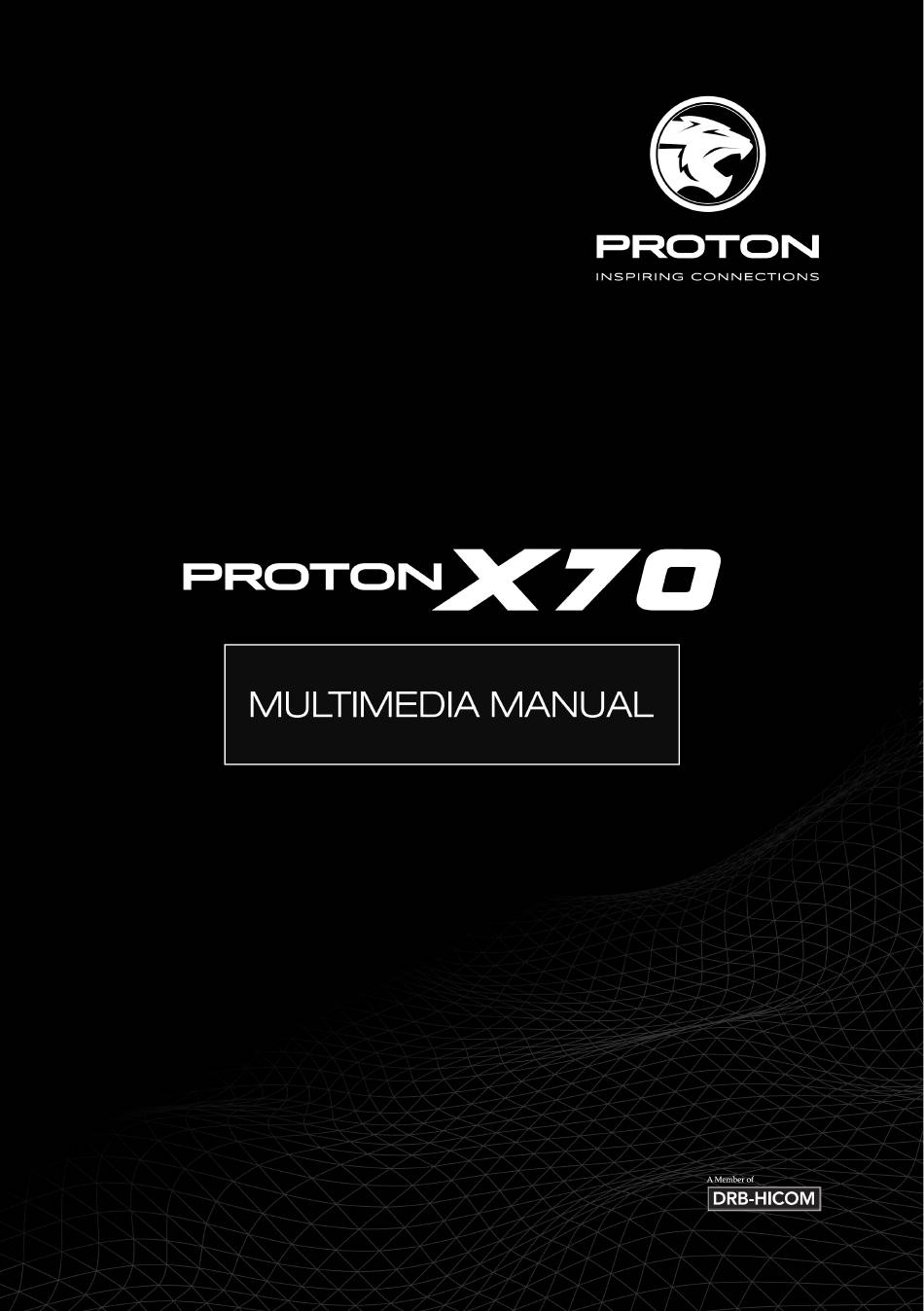

  • Page 2 (1-800-888-398) PROTON EDAR SDN. BHD. Centre of Excellence Complex Km33.8 Westbound Shah Alam Expressway 47600 Subang Jaya , Selangor Darul Ehsan , Malaysia.

  • Page 3: Table Of Contents

    Contents Multimedia System Multimedia System 32 Free Navigation Interface 34 Route Navigation Interface 3 Operation Instructions 36 Search Destination 3 Notice to Users 41 Route Planning 4 Safety Information 42 Navigation Alert 5 Disclaimers 43 Navigation Update 6 Notes for Navigation 47 Difference in Map Versions 10 Devices And Operation 48 Map Report...
  • Page 4 97 About “My Account” Interface 97 My account 90 360 Camera Interface 97 Trip Log 98 Call Service 98 My Service Centre 99 Settings 99 Internet Data Add On 99 Data Add On via Proton Link 100 Data Add On via MyProton Application...

  • Page 5: Operation Instructions

    Multimedia System Multimedia System Operation Instructions Therefore, it is up to the driver to decide which route is the most Notice to Users suitable route. • Do not use mobile phone while • The speed limit stipulated by current driving. Park the vehicle in a safe road traffic regulations should be place first if you need to use the more...

  • Page 6: Safety Information

    Multimedia System Multimedia System Safety Information Asterisk This manual provides relevant information The asterisk “*” symbol following a title of all models. Due to the variety of or name indicates that the configuration configurations, the descriptions in this or function described is equipped on manual may differ from the actual one certain models only.

  • Page 7: Disclaimers

    Multimedia System Multimedia System Disclaimers PROTON has the right not to provide the service for you in the following cases: This Manual been written compliance with such laws and regulations • Violation of local laws and regulations. currently in force. PROTON reserves the •...

  • Page 8: Notes For Navigation

    For your driving safety, for displaying the inquired points of strictly observe the “Warning” operation. interest in the center of the navigation PROTON will not be responsible for any screen and prompting the name and inconvenience or accident caused by location.
  • Page 9 Multimedia System Multimedia System • Navigation disclaimer: illustrations show conditions actual road conditions sometimes which may affect the normal reception change, the driving routes planned of satellite signals and cause errors. by the navigation map are only recommendations and may or not be used as factually accurate reference.
  • Page 10 Multimedia System Multimedia System Notes Before Using Safe Navigation Bluetooth Do not operate the navigation function while driving to avoid distraction and Description of The Wireless cause safety problems. The navigation Bluetooth Technology setup should be done in advance or •...
  • Page 11 Multimedia System Multimedia System driving. This may cause negligent driving that can result in an accident. • Avoid looking at the screen for long periods while driving. This is dangerous and may cause an accident. Reminder for Pairing Bluetooth Phone •...

  • Page 12: Devices And Operation

    Multimedia System Multimedia System Devices And Operation Steering Wheel Control Buttons The steering wheel control buttons for multimedia unit is located on the left and right side (Multi-control Function Buttons) of the steering wheel. The functions mentioned below for multi-control function buttons on the right side of steering wheel are during the meter instrument is closed via Mode switch button (the button is currently controlling the multimedia unit).
  • Page 13 Multimedia System Multimedia System Buttons Short Press Long Press Right Selection To seek or switch to the : To seek next station and button (Next) • Radio: next station to fast forward the song • Music: next song or video. •...

  • Page 14: Touchscreen Operation

    Multimedia System Multimedia System Touchscreen Operation Finger Gestures Action Tap : Activate an application, activate button functions and locate the progress bar Horizontal scroll or swipe : Move or drag a page to the left or right Double tap with one finger : to enter the interface or apps Squeeze inwards : squeeze using two fingers inwards to zoom in...

  • Page 15: Basic Operation

    Multimedia System Multimedia System Basic Operation System Start-up When the power of the system is OFF, turn the ignition to ACC or ON position and the multimedia system will start automatically. A start-up image and a warning message will pop up on the multimedia screen. Start-up Image Warning Image Screensaver (Lock Screen)

  • Page 16: Homepage (Home Screen)

    Multimedia System Multimedia System Homepage (Home Screen) The home screen is designed to give you the experience similar to that of Android devices. On the homepage, at the most left side widget is set for navigation and the middle / right side widgets are for available applications in multimedia unit. Celullar network connection VR (voice assistance / voice recognition) Wi-Fi network connection...

  • Page 17: Widget Editing Screen

    Multimedia System Multimedia System The default setting for homepage is night mode. See Display at Setting section to change the background mode between day mode and night mode. The day mode will provide brighter background as following: Recent used apps widget will display default functions (apps) during its first used, current function is displayed on the far left and other functions will display to the right in turn, recording the last four to eight recent used apps interface.
  • Page 18 Multimedia System Multimedia System Select Layout to open layout sample interface. There are three different layouts to choose from, allowing for easy personalization of homepage interface. Sample Layout 1 Sample Layout 2 Sample Layout 3...
  • Page 19 Multimedia System Multimedia System Select Widget to open widget size selection interface. Here, users can design homepage with flexibility by choosing from various widget sizes as shown below. This function allows user for creating a personalized and functional homepage layout that meets individual needs perfectly.

  • Page 20: Apps List Interfaces

    Multimedia System Multimedia System Tap 6x4 tab to set the widget with this size. Apps List Interfaces Tap Recent used apps widget or swipe the screen left/right to enter the app list interfaces with selection of apps that may entertain and enhance your driving experience. App list interface includes Media, Image and Video Entertainment, Online Navigation, VR Voice, Weather and more Apps that meet most driving scenarios.
  • Page 21 Multimedia System Multimedia System Apps List Folder Creation New feature in the apps list interface allows users to create folders which will make it easy for user to customize and streamline the app experience. To enter edit mode (apps folder creation), long-press any apps icon and drag it to rearrange its position. Hold and drag one apps icon onto another to create folder.

  • Page 22: Pull-Down Menu

    Multimedia System Multimedia System Pull-down Menu Swipe down to show the pull-down menu. All functions can be switched on/off quickly including quick configure to Wi-Fi, Bluetooth, Hotspot, Screensaver, other vehicle settings, screen brightness and volume adjustment. Long press any shortcut icons to add/delete the shortcuts to/from the pull-down menu. Tap “...

  • Page 23: Phone

    Multimedia System Multimedia System Phone Tap to open Phone app at homepage or from app list interface. Before making a call via multimedia unit, it is advised to connect the phone via bluetooth pairing. Bluetooth Pairing and Connection Tap Setting → System → Bluetooth to enter the Bluetooth interface where user can turn on/off the Bluetooth function and customize Bluetooth information (see Setting section for details) in this interface.

  • Page 24: Dialing

    Multimedia System Multimedia System Dialing Various methods of making a call using the multimedia unit are as follows. Tap the name or dial and then tap the phone icon to start dialing: Call via keypad. Call via contacts. Call via recent calls. VR Voice.

  • Page 25: Answering And Hanging Up

    Multimedia System Multimedia System Call via VR Voice. After awakening the VR Voice, calls can be made via the voice command. Refer to Voice Recognition (VR) section for setting and voice commands. Answering and Hanging Up Answering and hanging up calls can be done via steering wheel control buttons (the multi-function control buttons at the steering wheel).
  • Page 26 Multimedia System Multimedia System For multiple calls, a display of callers will be shown and you can answer, hold or reject. Hang up first call and answer second incoming call Hold on the call and answer second incoming call Reject the second incoming call To answer and hang up directly via VR Voice without awakening it, please see Voice Recognition (VR) section for voice commands.

  • Page 27: Multimedia

    Multimedia System Multimedia System Multimedia Tap to open Media app at homepage or from app list interface to enter the media interface and select between Radio, USB or BT (bluetooth) as source of multimedia entertainment. Radio In the media interface, tap Radio to enter the radio interface to seek and play the preferred radio station.

  • Page 28: Usb And Bluetooth Music

    Multimedia System Multimedia System USB and Bluetooth Music The multimedia unit supports the following audio files formats: MP3, WMA, AAC, WAV, OGG, FLAC. Audio files stored in USB flash drives can be read and played. In the media interface, tap USB to enter the USB interface to play audio file in the USB flash drive.

  • Page 29: Photos And Videos

    Multimedia System Multimedia System Make sure to pair and connect the bluetooth media device first to play the available music. The above will be shown if there’s no bluetooth devices connected or available. See Bluetooth Pairing and Connection section. Photos and Videos Tap Photo app or Video app at homepage or from the app list interface to...
  • Page 30 Multimedia System Multimedia System When you tap , the system will pop up list of functions. You can check the image information, apply current image as wallpaper, and display all photos in slideshow. Applying Photo as Wallpaper At the chosen photo display, tap and select Apply as wallpaper to save current photo as wallpaper.
  • Page 31 Multimedia System Multimedia System Transferring Image File Long pressing any image will pop up the selection mode. In current mode, the photos and images files can be transferred between USB flash disk to the local disk of the multimedia unit. The photo files can also be transferred via phone to multimedia unit.
  • Page 32 Multimedia System Multimedia System Scan available QR code and select image file on mobile phone to transfer. Video The multimedia unit supports video files in the following formats: 3GP, FLV, MKV, MP4, AVI, MOV. The multimedia unit also supports video files in the following video encoding formats: MPEG, MPEG2, MPEG4, AVC, XVID, MJPEG.
  • Page 33 Multimedia System Multimedia System Videos stored in USB flash drives can be viewed and displayed on the multimedia unit. The videos will be rearranged according to the respective folders (as shown above). Please be aware that the multimedia unit will not allow videos to be played during driving.

  • Page 34: Navigation

    Multimedia System Multimedia System Navigation Starting the Navigation System After starting up, tap Navigation widget or say the voice command “Open Navigation” to run the navigation system. There are two modes in the navigation system: • Free navigation mode: No destination is set after you enter the navigation system. •...
  • Page 35 Multimedia System Multimedia System GPS signal status : Displays the GPS signal strength from Good, Weak or None. Search Destination : Search for a destination by entering keywords or search for nearby facilities such as dining, accommodation, shopping, entertainment, and etc. Vehicle logo : Displays the current precise location and the orientation of the front of the vehicle.

  • Page 36: Route Navigation Interface

    Multimedia System Multimedia System Route Navigation Interface Set destination to enter route navigation interface. On the route navigation interface, touch anywhere on the map to enter route navigation touch screen, which will display the following operation buttons. Route overview : Tap this icon to enter route overview mode. Click Overview to display all routes on the map.
  • Page 37 Multimedia System Multimedia System Along the route: Tap to search for nearby amenities such as parking lots and coffee shops; or to set the amenities as stop point along the route. Route edit: Tap to edit current route, such as adding, deleting and changing route; or to adjust the sequence of routes.

  • Page 38: Search Destination

    Multimedia System Multimedia System Search Destination If the vehicle is connected to the network, the online map data can be used when searching a destination. Otherwise, the search result is based on the local map data. Otherwise, the search result is based on offline map data.Therefore, the results of online and offline search may be slightly different.
  • Page 39 Multimedia System Multimedia System Keyword Search (1) Enter keywords such as “hotel”and the search results will be displayed. Then, select an address to view the search location in the map. View Search Location Select an address to view search location in the map as below. Quick fact : Tap to show the address, location, telephone and other information of the destination.
  • Page 40 Multimedia System Multimedia System Filter Query Results If more search results appear, you can select categories on the left side filter menu for quick search results. Planning and Selecting Routes Navigation routes to destination will be provided on this interface with comparison information including expected arrival time, total distance, and numbers of traffic light.
  • Page 41 Multimedia System Multimedia System Along the route : To view amenities such as parking lot and coffee shop; set related amenities as pathway. Route option : Change route planning preferences. Show weather : Show weather information along the route. Show R&R : Show services area along the route. Home (2) Tap Home to directly plan the route from the current location to your home.
  • Page 42 Multimedia System Multimedia System View and Navigate to Recent Destination (5) & (6) Tap the recent destination list on Search Main Interface to view and directly navigate to the chosen previously navigated destination (routed navigation). Alternative way is by tapping the icon to view the previously navigated destination (recent destination) on the map and then navigate.

  • Page 43: Route Planning

    Multimedia System Multimedia System Route Planning If current destination has already been set, user can add pathway by using relevant keywords and pinning on the map to re-plan the route. Tap anywhere on the map and tap on the Destination to see as below: …...

  • Page 44: Navigation Alert

    Multimedia System Multimedia System Navigation Alert When navigation is active, image will be zoomed in when passing turn junctions. When approaching destination, navigation system will automatically recommend nearby parking lot for you. You can view parking lot on the map and click the “ ”...

  • Page 45: Navigation Update

    Multimedia System Multimedia System Navigation Update Please visit an authorised PROTON service outlet and ask the staff to update your offline map data. Online Map Data Update If the navigation system detected a new map data need to be updated to the system, an online full map data update will be triggered when launching the navigation.
  • Page 46 • If the network connection is poor, try again several times. • If the above attempts still fail, please contact your authorised PROTON service outlet. Step 5 : If the message Map Download Failed is displayed during the download process,...
  • Page 47 • If the network connection is poor, try again several times. • If the above attempts still fail, please contact your authorised PROTON service outlet. Step 6 : Once the progress reaches 100%, the download has completed. The system will start local update and install, as shown below.
  • Page 48 • If multiple attempts fail, restore factory settings and download again. • If the above attempts still fail, please contact your authorised PROTON service outlet. Step 8 : After the installation has completed, the following screen will be displayed, indicating that the map data update and installation of the entire map is completed.

  • Page 49: Difference In Map Versions

    Multimedia System Multimedia System Difference in Map Versions If there is offline map data in the vehicle, but the version of the map data is old, when the car is successfully connected to the Internet, the navigation can automatically determine the age of the map data.

  • Page 50: Map Report

    Multimedia System Multimedia System Map Report In the settings interface, you can use “Map feedback” as shown below if you would like to report about location on the map. … Tap “ ” → Settings → Map feedback. Select “New place” for reporting new places or select “Place wrongs”...
  • Page 51 Multimedia System Multimedia System Report a New Place If you find a new place but it does not exist in the map data, you can use New place in Map feedback interface above to report this new place. The Feedback new place interface consist of : I am here : Report current location of the vehicle as a new place.
  • Page 52 Multimedia System Multimedia System The Feedback wrong place interface consist of : • Type : Select error type between non-existent place or wrong information recorded. Name : Enter error place name. • • Position : Identify position of error on the map. •...

  • Page 53: App Store Introduction

    Multimedia System Multimedia System A-Store App Store Introduction A-Store allows users to download preferred applications to be installed on the IHU. The A-Store provides a variety of software such as basic apps, music, weather, themes, and other relevant software and services provided by various partners for the users to download.
  • Page 54 Multimedia System Multimedia System For example, if you select Theme from the A-Store main interface, the multimedia screen display will go to Theme interface for downloading the new update or to view the theme details. Click the theme selection to view the details of respective theme.

  • Page 55: Member Center

    Member Center manually. The PROTON Link application with the associated account linked to the vehicle upon purchase can also be used to scan the QR code displayed on the multimedia unit to...
  • Page 56 Multimedia System Multimedia System After logging in, users can view their account information such as Nickname and Profile Picture. Internet data and purchased data can also be viewed in the Member Center.

  • Page 57: Weather

    Multimedia System Multimedia System Weather Tap Weather in the homepage to enter weather interface. The following will be displayed when using the weather app. By default, the weather is displayed for the city in which the vehicle is currently located. Other locations and cities can be added in the app settings.

  • Page 58: Theme

    Multimedia System Multimedia System Theme Tap Theme app in the App List to enter the interfaces for theme, wallpaper, screensaver, and me (personalized interface). Switch Theme Tap Theme app → Theme to open theme interface. Choose from a selection of themes and switch between them for more personalization options according to user preferences.

  • Page 59: Switch Wallpaper

    Multimedia System Multimedia System Switch Wallpaper Tap Theme app → Wallpaper to open wallpaper interface. Choose from the selected wallpapers and switch more personalized options between them according on user preferences. Click on the preferred wallpaper to select and see its details. Click apply and confirm the selection to switch the wallpaper.

  • Page 60: Switch Screensaver

    Multimedia System Multimedia System Switch Screensaver Tap Theme app → Screensaver to open screensaver interface. Switch to preferred screen saver and set screensaver for the screen lock page. Click on the preferred screensaver to select and see its details. Click apply and confirm the selection to switch the screensaver.

  • Page 61: Search

    Multimedia System Multimedia System Tap Theme app → Me to enter user personalized (Me) interface. The Me interface supports classification by “Theme”, “Wallpaper”, and “Screensaver” to view, edit and delete the content that currently has been downloaded or purchased on the vehicle multimedia unit.

  • Page 62: Notification Center

    Multimedia System Multimedia System Notification Center User will be able to read notifications and messages which can be viewed later or instantaneously by tapping the top right corner of the multimedia unit screen. The Notification Center can be swiped down to be displayed or swiped up to hide. There is also a button to clear all messages.

  • Page 63: Calendar

    Multimedia System Multimedia System Calendar Tap Calendar app in the App List to enter the calendar interface and view the selected date calendar as well as personalized schedule. Calendar View Calendar can be viewed by year, month, and date as below figure. Holiday information is also available.

  • Page 64: Schedule View

    Multimedia System Multimedia System • Calendar view by month • Calendar view by date Schedule View Schedule created in the multimedia unit can be displayed with dates and annotations. Select date and click on an agenda to view the schedule details.

  • Page 65: Voice Recognition (Vr)

    Common Voice Command Wake Up There are three ways to wake up (activate) the VR app. Use voice command to multimedia unit : Hi Proton. • • Press the voice button on the steering wheel to wake up the VR app.
  • Page 66 Multimedia System Multimedia System Voice Control Command List of common voice command below can be used after wake up command. Voice Example of Voice Command Function Control “Open map.” Voice control for navigation “Navigate to ‘KLCC’.” can also be used to check “Stop navigation.”...
  • Page 67 Multimedia System Multimedia System List of common voice command below can be used after wake up command. Voice Example of Voice Command Function Control “Make a call.” “Dial ‘Rick’.” “Call ‘112’.” Voice control for phone can “Call ‘police’.” be used for voice call via “Call ‘fire station’.”...

  • Page 68: Vr Setting

    Setting → System → VR Settings, to customize voice recognition settings such as changing the VR Voice (selection between Atlas for man’s voice or Aethra for woman’s voice), enable/disable the auto wake up function (Hi Proton), setting user’s name and accessing the VR manual.

  • Page 69: Vr Manual

    Multimedia System Multimedia System VR Manual The VR manual provides user with more information about voice supported functions, features and characteristics. VR Control At multimedia unit, select and tap in sequence: Setting → System → VR Settings → VR Manual, to access the VR Control that introduces the VR functions and voice commands examples that can be used to communicate with multimedia unit.

  • Page 70: Air Conditioner (A/C)

    Multimedia System Multimedia System Air Conditioner (A/C) The air conditioner setting can be customized based on user preferrences via A/C Control Panel in multimedia unit display screen, A/C mini widget in homepage interface and through voice command (refer to VR manual section) for the example of voice command that can be used for A/C system.

  • Page 71: Description Of A/C Control System Buttons

    Multimedia System Multimedia System Swipe up the multimedia unit display screen from the bottom of hompage interface, the A/C mini widget will pop-up as shown above.The A/C mini widget is for easy access to air conditioner basic setting from the homepage screen. Description of A/C Control System Buttons A/C Control System Buttons Description...
  • Page 72 Multimedia System Multimedia System A/C Control System Buttons Description Tap here to open the seat ventilation speed selection interface and select Front passenger seat ventilation button the desired ventilation speed level between 1, 2 or 3 for left front seat. Shows temperature for left zone Front passenger side temperature (front passenger area).

  • Page 73: Setting

    Multimedia System Multimedia System Setting Tap to open Setting app at homepage or from app list interface to enable/disable, set, and change settings within four categories : Vehicle setting, Cockpit setting, ADAS setting and System setting. Vehicle Setting Tap Setting → Vehicle to enter the vehicle setting interface. There are seven subgroups in total, namely Vehicle Information, Windows, Trunk, Rearview Mirror, Wiper, Door Lock and Lights.
  • Page 74 Multimedia System Multimedia System Windows Select to enable or disable the Auto Close Windows in this Windows interface. When this function is enabled, the windows will close automatically when the vehicle’s doors are locked via the intelligent key. Tailgate (Trunk)* Select to enable or disable the Nearby Auto Unlock Trunk in this Trunk interface.
  • Page 75 Multimedia System Multimedia System Rearview Mirror Select to enable or disable the Auto Fold Rearview Mirror in this Rearview Mirror interface. When this function is enabled, the exterior rearview mirror at door (side mirror) will fold automatically when the vehicle’s doors are locked via the intelligent key. Wiper In this Wiper interface, user can select to enable or disable the Front Wiper Speed Control and the Rear Wiper Linkage function.
  • Page 76 Multimedia System Multimedia System Door Lock* In this Door Lock interface, user can select to enable or disable (customize) the following functions: Ignition OFF Auto Unlock – When this function is enabled, all doors will unlock automatically when the ignition switch is turned to off position (engine off). Walk Away Auto Lock –...
  • Page 77 Multimedia System Multimedia System Lamp (Lights) In this Lights interface, user can select to customize the Follow Me Home lamp intervals (time it will stay on). The selection can be between 30s, 60s and 90s.

  • Page 78: Cockpit Setting

    Multimedia System Multimedia System Cockpit Setting Tap Setting → Cockpit to enter the cockpit or interior vehicle setting interface where user can customize the setting for Sound (audio), Display (screen), Steering Wheel control and Ambient Light setting. Sound Tap Setting → Cockpit → Sound to enter sound interface, where user can customize the audio parameters to their personal preferences.
  • Page 79 Equalizer Equalizer parameters can be adjusted by selecting different EQ modes such as Custom, Pop, Rock, Classical, Jazz, Vocal and PROTON (upper left side of interface). Balance and Fader Adjust different balance and fader effect by moving the middle point to the preferred area.
  • Page 80 Multimedia System Multimedia System Volume Mixer User can control volume for different audio sources, such as Media Volume, Bluetooth Call Volume, Navigation Volume, System Volume and VR Volume at the left side of Sound interface when Volume Mixer setting is selected. Safety Tone Safety tone (alarm or indicator volume) for vehicle warning can be set between Low, Medium and High level.
  • Page 81 Multimedia System Multimedia System Display Tap Setting → Cockpit → Display to enter display interface, where the multimedia unit display Screen Brightness and the background mode can be adjusted in this interface. Select between Auto, Day and Night to change the background (Day And Night Mode). Steering Wheel Tap Setting →...
  • Page 82 Multimedia System Multimedia System Ambient Light* Tap Setting → Cockpit → Ambient Light to enter ambient light setting interface, where the appearance and function of the ambient light can be customized in this interface. Slide the Ambient Light Brightness left/right to change the brightness level from dim to bright.

  • Page 83: Adas Setting

    Multimedia System Multimedia System ADAS Setting* Tap Setting → ADAS to enter the vehicle safety function setting or ADAS interface where user can customize the setting for various safety related features, such as TSI, RSRS, AEB, Cruise Control and LKA. Details of the system functions in ADAS are described in the Owner’s Manual.
  • Page 84 Multimedia System Multimedia System Rear Side Radar System (RSRS)* Tap Setting → ADAS → Rear Side Radar System (RSRS) to enter the collision mitigation setting interface. RSRS system detects the rear side of the vehicle based on the rear medium-range radar on both sides of rear bumper. In this interface, user can select to enable/disable the Lane Change Assist (LCA) with its Sound (warning) setting, Rear Cross Traffic Alert (RCTA), Rear Collision Warning (RCW) and Door Opening Warning System (DOW).
  • Page 85 Multimedia System Multimedia System Autonomous Emergency Braking (AEB)* Tap Setting → ADAS → Autonomous Emergency Braking (AEB) to enter the setting interface related to braking system during emergency and collision warning based on distance and relative speed of the front target. Tap to enable/disable the AEB and FCW in this interface.
  • Page 86 Multimedia System Multimedia System Lane Keep Assist (LKA)* Tap Setting → ADAS → Lane Keep Assist (LKA) to enable/disable the LKA system that will give a corrective assist force to prevent the lane deviation, mitigate or avoid collision, and remind the driver to keep the vehicle in the lane. Tap to enable/disable the Lane Keep Assist (LKA) system in this interface.

  • Page 87: System Setting

    Multimedia System Multimedia System System Setting Tap Setting → System to enter the vehicle system setting interface where user can customize the setting for connectivity and view the information related to vehicle system as following: • View system information • Control personal hotspot •...
  • Page 88 Tap Setting → System → Software Update to check if software updates for multimedia unit is available and to download/install update if required. Keep the engine on during software update. Power failure may cause the system update to fail. If the system cannot start normally, please contact authorised PROTON service outlet for inspection.
  • Page 89 Multimedia System Multimedia System Bluetooth Connection Tap Setting → System → Bluetooth to turn on/off the Bluetooth function and customize Bluetooth information in this interface. Device Name – Tap to rename/modify this multimedia unit’s bluetooth device. Only letters, numbers and underline are supported for name change. Connected Devices –...
  • Page 90 Multimedia System Multimedia System Available Networks – When Wi-Fi is enabled (turn on), choose from a selection of available Wi-Fi networks. Type in the network password and press connect to use the selected Wi-Fi network. Personal Hotspot Tap Setting → System → Personal Hotspot to turn on/off the personal hotspot function and sharing this multimedia unit’s internet data.
  • Page 91 VR Voice – Tap to select the male voice (ATLAS) or the female voice (Aethra). The default setting is Aethra. Hi Proton – Tap to enable/disable the Auto Wake Up function. The default setting is enable (turn on). The auto wake up command can be used in the functions of Music, Radio, Navigation, Window, Volume and Back to Homepage.

  • Page 92: Entering The 360 Camera Interface

    The Front Left View and Front Right View will be shown respectively. • Give a voice command of “HI PROTON, Open 360 Camera” to the multimedia unit. Exiting the 360 Camera Interface The 360 Camera interface can be turned off (exit) as follows: Tap the Exit button •...
  • Page 93 Multimedia System Multimedia System Settings The functions, such as 3D surrounding view, vehicle transparency, radar activation panorama (360 camera view), steering linkage, and vehicle settings, can be set. Dynamic Auxiliary Line (Reverse Assist Guideline) Tap the button to turn on or off the the reverse assist guideline which is a dynamic track line that adjusts the indicated direction according to the angle change of steering wheel rotation during reversing or reverse parking.
  • Page 94 Multimedia System Multimedia System In 3D view, tap the button on the side of the vehicle model image to select different cameras view and switch between the front, rear, left, right, front-left, rear-left, front-right and rear-right view. Rotate the vehicle model image on left side of the interface to view any angle of the vehicle.

  • Page 95: Proton Link App Centre

    PROTON Link Mobile App Download Please download “PROTON Link” app in application market. For iOS mobile phone, please search for “PROTON Link” in the Apple App Store. For Android mobile phone, please search for “PROTON Link” in the Google Play Store. For HuaWei mobile phone, please search for “PROTON Link”...

  • Page 96: Notification

    PROTON Link App Centre PROTON Link App Centre Dashboard home page shows weather information, vehicle status, dashboard Slide up the home page to view dashboard and internet data usage information. information, total range, total mileage, average fuel consumption, average Notification speed, oil pressure and electric parking brake (EPB) status.

  • Page 97: Remote Control

    For some models that is equipped with the power assisted tailgate function, the unlock tailgate function via PROTON link remote control may not be applicable due to safety purpose. You are required to activate the PIN code settings. this 4 Digit PIN code will be used to operate remote control feature.

  • Page 98: Poi Search

    PROTON Link App Centre PROTON Link App Centre Press this icon to show your current Select a location by pressing your finger vehicle location. Your vehicle location on the map to set your destination. A will be shownon the map.

  • Page 99: Geo-Fence

    PROTON Link App Centre PROTON Link App Centre Geo-fence About “My Account” Press icon at your map interface of Press icon to enter your exclusive your phone to set the fence range. When page. the vehicle exits or enters the set range,...

  • Page 100: Call Service

    PROTON Link App Centre PROTON Link App Centre My Service Centre Press “Time selection” to query the time range of the trip log. Press “Preferred service centre” to enter the setting page. The preferred service centre by default is the service centre where you purchased the vehicle, which can be customized and modified later.

  • Page 101: Settings

    Internet Data Add On In case you need to top up your internet data, there are two methods to get the internet data add on. Data Add On via Proton Link • Via Proton Link app (at homepage) Press the “Trip log function” switch to enable or disable the trip log function.

  • Page 102: Data Add On Via Myproton Application

    PROTON Link App Centre PROTON Link App Centre Data Add On via It is i mportant that the correct email MyProton Application address is being used during sign To purchase data add on via MyProton app, make sure you have MyProton app MyProton app account.
