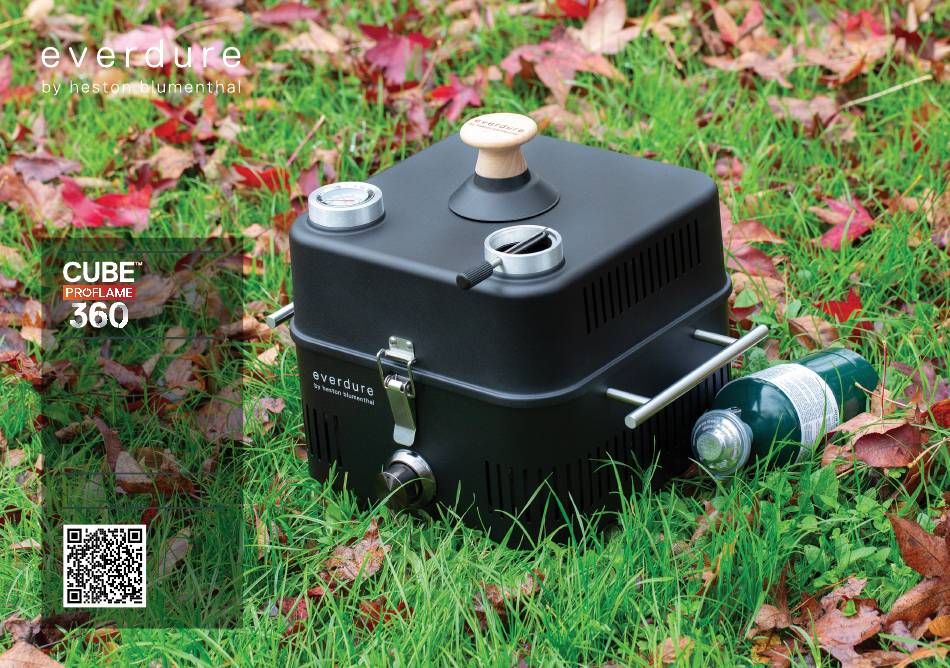

- Page 1 Assembly, operation & maintenance instructions For the Everdure by Heston Blumenthal CUBE™ PROFLAME 360 portable gas barbeque with Roasting Hood everdurebyheston.com Scan to view the how-to videos...
- Page 2 Inspired by the past. Innovated for the future. T H E O U T D O O R P E R F O R M A N C E...
- Page 3 DANGER If you smell gas: • • • Open lid. • personal injury or death. DANGER • Never operate this appliance unattended. • Never operate this appliance within 10 ft (3.0 m) of any structure, combustible material or other gas cylinder.
- Page 4 Parts List ......................17 OPERATION AND MAINTENANCE INSTRUCTIONS FOR Everdure by Heston Blumenthal outdoor gas barbeques. It is important that you retain these instructions, proof of purchase as well as other important documents about this product for future reference. Due to continual product development, Everdure by Heston Bumenthal deserves the right to alter specifications...
- Page 5 Assembly, Operation & Maintenance Instructions minimise fat/oil spillage. It is recommended that protective gloves be worn when handling IMPORTANT SAFETY INSTRUCTIONS any hot components. Parts that are sealed by the manufacturer or agent must not be altered. This instruction manual contains important information necessary for the safe use of this appliance.
- Page 6 (and void the warranty). This appliance is not intended for and should never be used as a heater. Regular cleaning and covering with an Everdure by Heston Blumenthal barbeque cover can help can help to reduce this.
- Page 7 Assembly, Operation & Maintenance Instructions APPLIANCE DETAILS Note: The size of the injector diameter is stamped on one of the hexagon faces (e.g. ‘165’ for Ø1.65 mm injector). MODEL HEAT INPUT BURNERS INJECTOR GAS TYPE DESIGNATION SIZE PRESSURE ECUBEG3B 10300 BTU 11 In.
- Page 8 Assembly, Operation & Maintenance Instructions INCLUDED PARTS 01 / Main BBQ 03 / Cast iron Gril l 04 / Fat tray x 1pc 05 / Hood As sem bly 06 / 02 / Burner Regulator Asse mbly x 1 pc x 1pc Guard x 1pc x 1pc...
- Page 9 Assembly, Operation & Maintenance Instructions ASSEMBLY STEP 01 / Take the ame guard (02) and place it into the main bbq assembly (01) in the same orientation as gure below, covering the stainless-steel burner. Ensure the ame guard resting on the 4 screw studs evenly and NOT on the burner directly. / Place the cast iron grill (03) into the top of barbeque chassis.
- Page 10 Assembly, Operation & Maintenance Instructions ASSEMBLY STEP 02 / Connect the gas regulator (06) onto the gas inlet of the barbeque chassis, push the tting of the regulator and screw the retaining coller until tight. The regulator should be connected with a gas cartridge/cylinder before cooking.
- Page 11 Assembly, Operation & Maintenance Instructions ASSEMBLY STEP 03 / You can use a lid to cook di erent types of ingredients, just place the hood assembly (05) on the barbeque chassis. Only when it is necessary to move the whole barbeque, the lid needs to be secured together with a locking buckle.
- Page 12 Assembly, Operation & Maintenance Instructions GAS CONNECTIONS 4. Align the gas cylinder with the gas regulator input and screw the cylinder onto GAS TYPE AND CONSUMPTION the gas regaultor until hand tight. The barbeques are designed to operate on Propane and/or Butane gas only. 5.
- Page 13 Assembly, Operation & Maintenance Instructions DO NOT USE NAKED FLAME FOR LOCATING GAS LEAKS IF A LEAK PERSISTS CALL AN AUTHORISED GAS FITTER LEAK TESTING OUTDOOR INSTALLATION GUIDE 1. Make sure the gas control knob is and turn the cylinder valve On. This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are 2.
- Page 14 & clean the burner with a wire brush. in conditions of strong wind. For a list of accessories go to the Everdure by Heston Blumenthal website. Make sure the minimum distances of the barbeque to any wall or combustible surface are met, and the supporting surface can withstand the heat.
- Page 15 Assembly, Operation & Maintenance Instructions OPERATING PROCEDURE READ ALL OPERATING INSTRUCTIONS BEFORE LIGHTING THE APPLIANCE OPEN THE HOOD BEFORE LIGHTING MAKE SURE THE GAS CONTROL KNOB IS IN THE ‘OFF’ POSITION AND OPEN CYLINDER/BOTTLE VALVE MAKE SURE THE BURNER, FLAME GUARD AND GRILL PLATE ARE IN THE CORRECT POSITION FOR COOKING AND SAFE OPERATION OF THE BARBEQUE MAKE SURE ALL VENTILATION OPENINGS AND BURNER AIR INLET ARE FREE FROM OBSTRUCTIONS LIGHTING THE BARBEQUE USING THE BUILT IN...
- Page 16 Assembly, Operation & Maintenance Instructions IGNITION GUIDE To ignite the burner: depress and turn the control knob slowly counter-clockwise until you hear a click and the burner ignites. This may take about 5~8 seconds, as the gas has to travel through the burner pipe to the barbeque.
- Page 17 Assembly, Operation & Maintenance Instructions ROASTING AFTER COOKING Roasting (or running the barbeque with the hood down) should not be done with the OFF. control knob set to High for long periods. 2. TURN OFF THE GAS SUPPLY AT THE GAS CYLINDER AFTER USE. Always set the barbeque up with the standard full grill combination as spelled out in the 3.
- Page 18 Assembly, Operation & Maintenance Instructions CLEANING STORAGE EXTERNAL CLEANING When the appliance is not in use, the cylinder must be turned o and removed The barbeque, the cylinder together must be stored outdoors in a well ventilated area. Before cleaning the barbeque exterior and, ensure the appliance has cooled and However it is permissible to store the appliance (but not the cylinder) indoors.
- Page 19 Assembly, Operation & Maintenance Instructions TROUBLESHOOTING Burner will not ignite when using the igniter: Cylinder valve is not on Turn cylinder valve on. Cylinder is empty Replace with a full cylinder/bottle. Igniter is not sparking Remove grill/plate and visually check ignition box for a spark. Check that the cables to the ignition point, or from the valve to the chassis, have not broken or disconnected.
- Page 20 Assembly, Operation & Maintenance Instructions PARTS LIST PART NAME PART NAME Wooden Handle Regulator Assy Wooden handle heat proof mat 1 Gas inlet connector Upper heat shield Inlet bend welding Heat proof mat Gas valve assy Wooden handle heat shield Leg assy Damper Leg foot mat...
- Page 21 Assembly, Operation & Maintenance Instructions Power by design. T H E O U T D O O R P E R F O R M A N C E...
- Page 22 Assembly, Operation & Maintenance Instructions IM Ref: US/CA Rev1 2024/02 FOR OUTDOOR USE ONLY Manufactured by: Shriro Australia Pty Ltd Level 7, 67 Albert Avenue Chatswood, NSW 2067 Australia eve rd u re byh e s to n .c o m eve rd u re byh e s to n .c o m...
