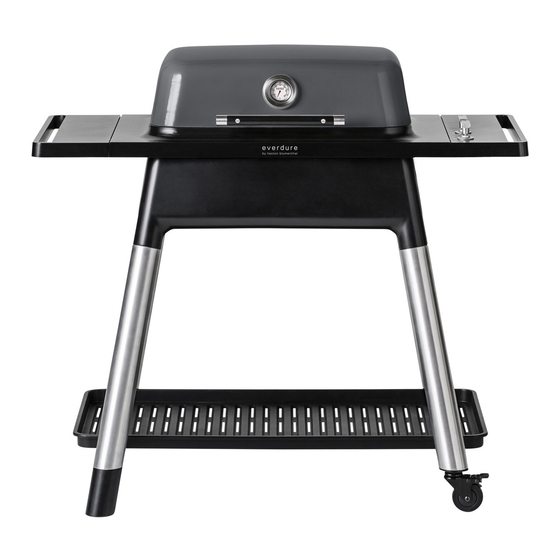

Summary of Contents for Heston Blumenthal Everdure FORCE HBG2G
- Page 1 Assembly, Operation & Maintenance Instructions FO R C E FUR NAC E Assembly, operation & maintenance instructions for Everdure by Heston Blumenthal FORCE™ & FURNACE™ gas barbeques and stands everdurebyheston.com 0845-16...
- Page 2 FURNACE FORCE 3 B U R N E R 2 B U R N E R G A S B A R B E Q U E G A S B A R B E Q U E Power by design. T H E O U T D O O R P E R F O R M A N C E...
-
Page 3: Table Of Contents
Blumenthal outdoor gas barbeques. It is important that you retain these instructions, proof of purchase as well as other important documents about this product for future reference. Due to continual product development, Everdure by Heston Blumenthal reserves the right to alter specifications or appearances without notice. Dispose of packaging responsibly – recycle where... -
Page 4: Important Safety Instructions
Assembly, Operation & Maintenance Instructions IMPORTANT SAFETY INSTRUCTIONS 10. This barbeque has been designed to be used either on the supplied trolley or on a raised bench. When using a raised surface (table etc.), ensure the surface is level, large enough and strong enough to support the barbeque and will withstand temperatures of 60°C above ambient temperature. - Page 5 (such as a domestic pool), as these chemicals can cause the appliance materials to deteriorate (and void the warranty). Regular cleaning and covering with an Everdure by Heston Blumenthal barbeque cover can help to reduce this.
-
Page 6: Appliance Details
Assembly, Operation & Maintenance Instructions APPLIANCE DETAILS Note: The size of the injector diameter is stamped on one of the hexagon faces (e.g. ‘165’ for Ø1.65 mm injector). MODEL DESTINATION COUNTRIES HEAT INPUT BURNERS INJECTOR GAS TYPE DESIGNATION SIZE CATEGORY φ0.95mm FORCE BE, FR, IT, LU, IE, GB, GR, PT, ES , CY, CZ,... -
Page 7: Outdoor Installation Guide
Assembly, Operation & Maintenance Instructions GAS CONNECTIONS DO NOT USE NAKED FLAME FOR LOCATING GAS LEAKS BUTANE & PROPANE GAS REQUIREMENTS IF A LEAK PERSISTS CALL AN AUTHORISED GAS FITTER Check Gas Type and specifications plate on the underside of the RHS servery. FOR GAS CYLINDER CONNECTION GAS CYLINDER 1. -
Page 8: Operating Instructions
(through the viewing hole on the left hand side of the chassis list of accessories go to the Everdure by Heston Blumenthal website. or through open grills). Make sure the minimum distances of the barbeque to any wall or combustible surface are met, and that when not using the stand, the supporting surface NOTE: The enamel coating can be damaged by steel utensils. - Page 9 Roasting is best done using a raised roasting rack, such as the Everdure by Heston Blumenthal roasting rack HBROASTR, 6. Once the barbeque is cool close the hood and wipe off any fat splatter from the stand which allows heated air to circulate around the meat, and fats to drip away from the meat.
-
Page 10: Ignition Procedure
Assembly, Operation & Maintenance Instructions LIGHTING PROCEDURE READ ALL OPERATING INSTRUCTIONS BEFORE LIGHTING THE APPLIANCE OPEN THE HOOD BEFORE LIGHTING MAKE SURE THE GAS CONTROL KNOB IS IN THE ‘OFF’ POSITION AND OPEN CYLINDER/BOTTLE VALVE MAKE SURE THE GRILL AND PLATE ARE IN THE CORRECT POSITIONS FOR COOKING LIGHTING THE BARBEQUE USING THE BUILT IN CLEANING &... - Page 11 This type of fire is called a flash-back and can cause serious damage to your barbeque and create an unsafe operating condition. To prevent this, regularly inspect and clean the burners. Use an Everdure by Heston Blumenthal FORCE FURNACE...
-
Page 12: Troubleshooting
Assembly, Operation & Maintenance Instructions TROUBLESHOOTING Burner will not ignite when using the igniter: Cylinder valve is not on Turn cylinder valve on. Cylinder is empty Replace with a full cylinder/bottle. Igniter is not sparking Remove grill/plate and visually check ignition box for a spark. Check that the cables to the ignition point, or from the valve to the chassis, have not broken or disconnected. -
Page 13: Barbeque Assembly
Assembly, Operation & Maintenance Instructions BARBEQUE AND STAND ASSEMBLY The barbeque and hood come fully assembled. To assemble, the stand must first be built (note: for transportation reasons, the barbeque is packaged bolted to the stand top, and should be removed before attempting to assemble the stand). The barbeque is placed back inside the stand after it has been assembled and re-attached (it can be removed to cook from a raised bench). - Page 14 Assembly, Operation & Maintenance Instructions STEP 01 Angle the assembly slightly to the back and remove both M6x20mm screws, then do the same at the front, supporting the parts so they don’t drop. Keep all of the fasteners for / Open the hood and fix the hood handle (14) using two M5x15mm screws (F), two later use.
- Page 15 Assembly, Operation & Maintenance Instructions STEP 05 /There are two threaded holes at the inside of the right hand legs. Take the support chain (13) and fix it to the two legs with two M6x12mm screws (A). Tighten fully. STEP 04 STEP 06 / Take the two bottom shelf supports (06) and fit them onto the cylindrical tabs at the / Turn the stand onto its legs and check that all of the legs are stable.
- Page 16 Assembly, Operation & Maintenance Instructions STEP 07 STEP 09 / To extend the left hand side servery, support the front of the barbeque and pull the left / Push the flat edge of the cylinder hook (12) into the slot of the stand top (above the hand servery forward (approximately 1cm) tensioning the spring.
-
Page 17: Maintenance
Assembly, Operation & Maintenance Instructions MAINTENANCE FORCE It is recommended that at the commencement of each barbeque season the following maintenance be conducted. BURNER 1. Brush the outside of the burners with a stiff brush to remove rust and dirt. Make sure all ports are open. -
Page 18: Parts List: Barbeque Assembly
Assembly, Operation & Maintenance Instructions PARTS LIST: FORCE BARBEQUES Injector Bracket (HBG2) Injector Housing PART NAME Injector (HBG2) Hood HBG2 (Mint) Injector Housing Nut Hood HBG2 (Stone) Fat Tray Bracket (HBG2) Hood HBG2 (Graphite) Barbeque Chassis Feet Hood HBG2 (Red) Fat Tray Handle Cover Temperature Gauge Bezel Fat Tray... - Page 19 Assembly, Operation & Maintenance Instructions Leg Cap FR Bottom Shelf Support Castor Foot FL Foot RL Leg FR Leg RR Gas Cylinder Support Chain Cylinder Hook...
- Page 20 Assembly, Operation & Maintenance Instructions PARTS LIST: FURNACE BARBEQUES Injector Bracket (HBG3) Injector Housing PART NAME Injector (HBG3) Hood HBG3 (Orange) Injector Housing Nut Hood HBG3 (Mint) Fat Tray Bracket (HBG3) Hood HBG3 (Stone) Barbeque Chassis Feet Hood HBG3 (Graphite) Fat Tray Handle Cover Temperature Gauge Bezel Fat Tray...
- Page 21 Assembly, Operation & Maintenance Instructions Leg Cap FR Bottom Shelf Support Castor Foot FL Foot RL Central Burner (HBG3) Central Open Grill (HBG3) Leg FR Leg RR Baffle Gas Cylinder Support Chain Cylinder Hook OPTIONAL ACCESSORY: COOKING ACCESSORIES Please see www.everdurebyheston.com for a full range of accessories...
- Page 22 Assembly, Operation & Maintenance Instructions NOTES ......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 23 Assembly, Operation & Maintenance Instructions FORCE 2 B U R N E R G A S B A R B E Q U E HBG2G HBG2S HBG2R HBG2M FURNACE 3 B U R N E R G A S B A R B E Q U E HBG3S HBG3O HBG3M...
- Page 24 IM Ref: FORCE&FURNACE 28/2017/02 FOR OUTDOOR USE ONLY eve rd u re byh e s to n .c o m...
