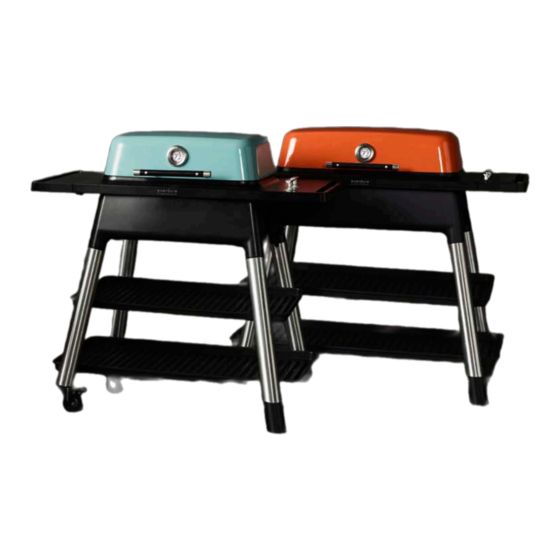

- Page 1 Assembly, Operation & Maintenance Instructions FO R C E FUR NAC E Assembly, operation & maintenance instructions for Everdure by Heston Blumenthal FORCE™ & FURNACE™ gas barbeques and stands everdurebyheston.com...
- Page 2 DANGER If you smell gas: • Shut off gas to the appliance. • Extinguish any open flame. • Open lid. • If odor continues, keep away from the appliance and immediately call your fire department. Failure to follow these instructions could result in fire or explosion which could cause property damage, personal injury or death.
-
Page 3: Table Of Contents
OPERATION AND MAINTENANCE INSTRUCTIONS FOR HBG2GUS, HBG2MUS, HBG2SUS, HBG2RUS, HBG3GUS, HBG3MUS, HBG3SUS and HBG3OUS GAS BARBEQUE RANGE Everdure by Heston Blumenthal outdoor gas barbeques. It is important that you retain these instructions, proof of purchase as well as other important documents about this product for future reference. -
Page 4: Important Safety Instructions
Assembly, Operation & Maintenance Instructions minimise fat/oil spillage. It is recommended that protective gloves be worn when handling IMPORTANT SAFETY INSTRUCTIONS any hot components. Parts that are sealed by the manufacturer or agent must not be altered. This instruction manual contains important information necessary for the safe use of this appliance. - Page 5 (and void the warranty). This appliance is not intended for and should never be used as a heater. Regular cleaning and covering with an Everdure by Heston Blumenthal barbeque cover can help can help to reduce this.
-
Page 6: Appliance Details
Assembly, Operation & Maintenance Instructions APPLIANCE DETAILS PROPANE MODEL DESIGNATION BURNERS COUNTRY OUTPUT INJECTOR SIZE HOSE DESIGNATION COUNTRIES CATEGORY HBG2GUS GRAPHITEE HBG2MUS MINT HBG2RUS 2*11000 = 22000Btu/Hr φ0.04in /φ0.98mm HBG2OUS ORANGE HBG2SUS STONE HBG2BUS BLACK USA/CAN 2740Pa 2ft / 600 mm HBG3GUS GRAPHITE HBG3MUS... - Page 7 Assembly, Operation & Maintenance Instructions GAS CONNECTIONS SPECIAL INSTRUCTIONS FOR THE USE OF REGULATOR AND PROPANE CYLINDER GAS HOOK-UP: Only the pressure regulator and hose assembly supplied with the grill BUTANE & PROPANE GAS REQUIREMENTS should be used. Any replacement pressure regulator and hose assembly must be specified by the grill manufacturer.
-
Page 8: Outdoor Installation Guide
Assembly, Operation & Maintenance Instructions CONNECTING THE LIQUID PROPANE CYLINDER: To connect the Liquid Propane gas supply cylinder: The cylinder valve should be in the “OFF” position. If not, turn the OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS valve clockwise until it stops. Make sure the cylinder valve has the proper type-1 external A fairly protected location is desirable for pleasant and efficient cooking. - Page 9 With the barbeque off and For a list of accessories for this barbeque, go to the Everdure by Heston Blumenthal cool, place your left foot in front of the left rear leg to stabilise the barbeque and pull the website.
-
Page 10: Ignition Procedure
Assembly, Operation & Maintenance Instructions LIGHTING PROCEDURE READ ALL OPERATING INSTRUCTIONS BEFORE LIGHTING THE APPLIANCE OPEN THE HOOD BEFORE LIGHTING MAKE SURE THE GAS CONTROL KNOB IS IN THE ‘OFF’ POSITION AND OPEN CYLINDER/BOTTLE VALVE MAKE SURE THE GRILL AND PLATE ARE IN THE CORRECT POSITIONS FOR COOKING LIGHTING THE BARBEQUE USING THE BUILT IN CLEANING &... - Page 11 This type of fire is called a flash-back and can cause serious damage to your barbeque and create an unsafe operating condition. To prevent this, regularly inspect and clean the burners. Use an Everdure Heston Blumenthal FORCE or FURNACE...
-
Page 12: Troubleshooting
Assembly, Operation & Maintenance Instructions TROUBLESHOOTING Burner will not ignite when using the igniter: Cylinder valve is not on Turn cylinder valve on Cylinder is empty Replace with a full cylinder/bottle. Igniter is not sparking Remove grill/plate and visually check the electrode for a spark. Check that the cables to ignition point, or from the valve to the chassis have not broken or disconnected. -
Page 13: Barbeque Assembly
Assembly, Operation & Maintenance Instructions BARBEQUE AND STAND ASSEMBLY The barbeque and hood come fully assembled. To assemble, the stand must first be built (note: for transportation reasons, the barbeque is packaged bolted to the stand top, and should be removed before attempting to assemble the stand). The barbeque is placed back inside the stand after it has been assembled and reattached (it can be removed to cook from a raised bench). - Page 14 Assembly, Operation & Maintenance Instructions STEP 01 Angle the assembly slightly to the back and remove both M6x0.8in (20mm) screws, then do the same at the front, supporting the parts so they don’t drop. Keep all of the fasteners for later /Open the hood and fix the hood handle (15) using two M5x0.6in (15mm) screws (F), two use.
- Page 15 Assembly, Operation & Maintenance Instructions STEP 05 / Turn the stand onto its legs and check that all of the legs are stable. Take the plastic bottom shelf (16) and place it on the two bottom shelf supports. Line the four holes in the bottom shelf up with the threaded holes in the bottom tray supports and fix into position using four M5x0.5in (12mm) screws (B) and four spring washers (C).
- Page 16 Assembly, Operation & Maintenance Instructions STEP 08 STEP 07 / To extend the left hand side servery, support the front of the barbeque and pull the left hand servery forward (approximately 0.4in (1cm)) tensioning the spring. Rotate the / Position the stand with the castor wheels to the right. Two people should lift the barbeque left hand servery to the vertical position and allow the tension in the spring to pull the and hood assembly (01A) by the serveries, and place it within the stand (facing forwards, servery into place.
- Page 17 Assembly, Operation & Maintenance Instructions STEP 10 STEP 11 /Place the grills onto the barbeque as shown in the diagrams. Each grill should have a /Take the match holder (09) and fix into place using a M6.12in (12mm) screw (K), nut M6 (H), 5-6mm gap around each edge.
-
Page 18: Maintenance
Assembly, Operation & Maintenance Instructions MAINTENANCE STEP 02 /Slide the burners toward the rear of the grill & remove ignition cables from the burner It’s recommended that you undertake the following maintenance program every 12 months assembly and lift the burner rail assembly out of the gas grill. or prior to the use of your grill at the beginning of every BBQ season. - Page 19 Assembly, Operation & Maintenance Instructions PROCEDURE FORCE GRILL: REMOVING THE BURNER TUBES STEP 03 /Inspect the burners for insect webs and nests or any other blockages, the burner tube & Note: Please note the grill plates need to be removed before removing the burner tubes. ports can be cleaned with a thin piece of wire if required.
- Page 20 Assembly, Operation & Maintenance Instructions CHECKING THE BURNERS FOR FLAME STABILITY: GAS SUPPLY Visually check the burner flames for correct function when the unit’s operating by inspecting the burner flame / flames with the cooking plates & grills removed. A good LEAK TESTING GENERAL: Although gas connections on the grill are leak tested prior flame should be blue with some yellow tipping.
- Page 21 Assembly, Operation & Maintenance Instructions BARBEQUE AND HOOD 1. Wipe over the outer areas of the barbeque and hood with a clean cloth. STAND 1. Check all fasteners for tightness and re tighten where necessary to ensure rigidity of the structure.
-
Page 22: Parts List: Barbeque Assembly
Assembly, Operation & Maintenance Instructions PARTS LIST: FORCE BARBEQUES Left Hand Servery Injector Bracket (HBG2) PART NAME Injector Housing Hood HBG2 (Orange) Injector (HBG2) Hood HBG2 (Mint) Injector Housing Nut Hood HBG2 (Stone) Fat Tray Bracket (HBG2) Hood HBG2 (Graphite) Barbeque Chassis Feet Hood HBG2 (Red) Fat Tray Handle Cover... - Page 23 Assembly, Operation & Maintenance Instructions Assembly,Operation & Maintenance Instructions Leg Cap RR Leg Cap FR Cap RR Bottom Shelf Support L Leg Cap FR Castor Bottom Shelf Support L Foot FL Castor Foot RL Foot FL Leg FR Foot RL Leg RR Central Burner (HBG3 ) Central OpenGrill (HBG3 )
- Page 24 Assembly, Operation & Maintenance Instructions PARTS LIST: FURNACE BARBEQUES Left Hand Servery Injector Bracket (HBG3) PART NAME Injector Housing Hood HBG3 (Orange) Injector (HBG3) Hood HBG3 (Mint) Injector Housing Nut Hood HBG3 (Stone) Fat Tray Bracket (HBG3) Hood HBG3 (Graphite) Barbeque Chassis Feet Hood HBG3 (Red) Fat Tray Handle Cover...
- Page 25 Assembly, Operation & Maintenance Instructions Leg Cap RR Leg Cap FR Bottom Shelf Support L Castor Foot FL Foot RL Central Burner (HBG3) Central Open Grill (HBG3) Leg FR Leg RR Baffle Upper Shelf Support R Bottom Shelf Support R (outer) Bottom Shelf Support R (inner) Upper Shelf Support L Upper Shelf...
- Page 26 FORCE Assembly, Operation & Maintenance Instructions 2 B U R N E R G A S B A R B E Q U E HBG2GUS HBG2SUS HBG2RUS HBG2OUS HBG2MUS HBG2BUS FURNACE 3 B U R N E R G A S B A R B E Q U E HBG3SUS HBG3OUS HBG3MUS...
- Page 27 Assembly, Operation & Maintenance Instructions IM Ref: FORCE&FURNACEUS 11/2016/30 FOR OUTDOOR USE ONLY eve rd u re byh e s to n .c o m...
