Nosiboo pro Manual

Package contents

• Colibri head
• Power cord
• User manual
• Device
• Tube
• Spare removable nose tip

Warning and safety signs

You may see the following signs in the user manual or on the label of the device:

	Type BF applied parts (increased protection against electric shock)	REF	Reference (order number)
	Class II device (double insulation)	SN	Serial number
	Name and address of the manufacturer		Keep dry!
	Warning!	IP21	Protected against solid objects over 12.5 mm and vertically falling drops of water.

Important safety instructions

If possible hazardous situations below are not avoided, user injury or even a fatal accident may occur.

Safety instructions regarding general use

• The device can be used exclusively for removing the nasal mucus from a child's nose. It cannot be used for any other purpose!
• It is FORBIDDEN to use the device in the bathroom or any other humid or wet environment!
• Stop using the device if liquid or solid has been drawn into the housing. Contact a qualified service centre.
• The device should only be used by adults.
• While in use, the device should be in a stable position, standing on a flat surface.
• Do not lay the child on their back and do not block the free nasal opening while using the device!
• Do not leave the device unattended near children or people with reduced physical or mental abilities!
• Do not leave the device unattended near large pets (dog, cat) that can knock it over!
• The power cord can easily wind round the child's neck!
• The device cannot be used in oxygen-rich environments (in clinical circumstances)!
• To prevent overuse and for the safety of your child, the device switches off automatically after 14 minutes. After the forced switch-off, the device can be turned on again. In case of overheating, the electronics will prevent re-use for approx. 50 minutes. For more information please read Chapter "Instructions for use".
• Make sure that all units are appropriately attached before using the device!
• Do not use the device without the air mesh.
• Before use, double-check if you have inserted the (dry) collared tube into the Colibri head after cleaning.
• Do not use the Colibri head and the device without the collared tube.
• Do not use more than 5 ml saline solution because if the solution gets into the tube, it can cause damage to the device.
• The connection point of the Colibri head should point downwards while in use.
• Stop using the device if mucus or saline solution has been drawn into the tube, disconnect it from the mains, then empty the Colibri head, clean and dry the Colibri head and the tube, check the air mesh and replace it if it is wet or clogged.
• Make sure that the housing, the tube and the Colibri head are not damaged or cracked! Do not use the device if you see that it is damaged! Replace the damaged part! (List of spare parts can be found in section "Accessories and spare parts".)
• If rashes or redness appear on the nose of the child after using the device, do not use the device again! Consult a physician.
• Use the device exclusively with the tube and Colibri head supplied by the manufacturer!
• Do not attach the Colibri head to any other devices.

Safety instructions regarding connecting the device to the mains

• Protect the power cord against damage! Do not break it, do not place heavy items on it because a damaged cord may cause electric shock.
• Keep the power cord away from heat (e.g. furnace, heater and convector) because it can cause damage to the isolation.
• Only use the device if the tube and the Colibri head are dry.
• Do not remove the mounting screws of the housing. Do not reconstruct the device for other purposes.
• The use of the device is forbidden if there is a breakage or crack on the housing or on the power cord due to misuse.
• In case of unexpected failure or malfunction, immediately switch off the device and interrupt the power supply by unplugging it from the mains.

Safety instructions regarding the next use of the device

• Always disinfect the Colibri head after use!
• Do not leave the parts of the dismounted Colibri head within reach of children because they may swallow these.

General precautions

• Read and follow the instructions of the "Important information about reducing the electromagnetic interferences" section!

Intended use

The Nosiboo Pro nasal aspirator was designed to remove the nasal mucus from the child's nose.
The vacuum and airflow needed for the aspiration is created by an aspirating device designed specifically for this purpose. The Colibri head, which is inserted into the nose, is connected to this device via a tube. The Colibri head has a patented design that prevents the mucus from entering the device.

Intended purpose:

• to ensure nasal breathing to infants
• to prevent the complications of childhood common cold and to accelerate the healing process by aspirating the nasal mucus
• to relieve childhood allergy-like symptoms by removing the nasal mucus.

Patients to be treated:

• children who are (typically under the age of 6) unable to remove the nasal mucus by blowing their noses.

Illness, condition requiring treatment (indication):

• to eliminate clogging of the nose
• treatment of common cold and auxiliary treatment of superinfected paranasal sinuses
• supplementary treatment of the allergic infectious condition.

Conditions in which the device cannot be used (contraindication):

• haemophilia
• if the blood vessels of the nasal septum's mucous membrane widen – in case of frequent nosebleed
• while taking blood-thinning medicines
• in case of congenital malformations (e.g. cleft palate).

Suggested user:

• Age: adult over 18
• Sex: not applicable (man or woman)
• Knowledge: should have general knowledge according to their age
• Education: min. primary school education, no need for special knowledge to use the device.
•
  knowledge of the User manual included in the package.

Product introduction

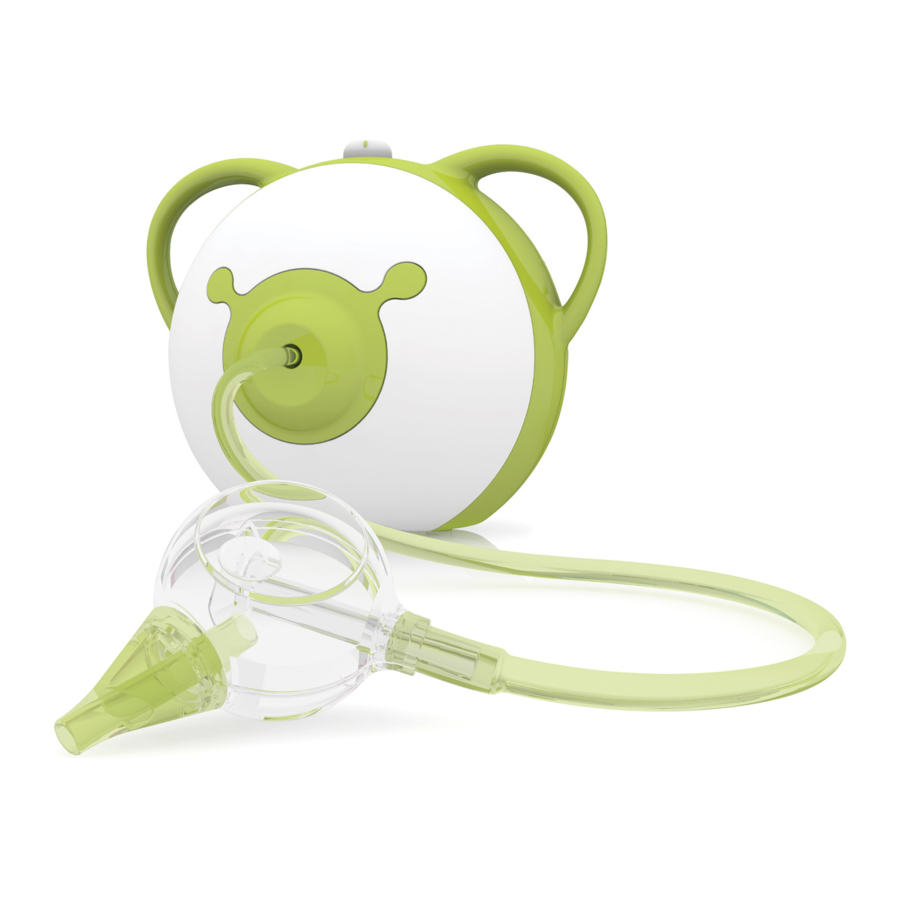

Figure 1 – Nosiboo Pro nasal aspirator

1. Power cord
2. On/Off control button
3. Assembled housing
4. Air mesh
5. Connecting unit
6. Tube
7. Collared tube
8. Nozzle housing
9. Nose tip
10. Nozzle housing with connection
11. Colibri head

First-time operation

Assembling the Colibri head

1. Clean and dry the parts of the Colibri head (see sections "Cleaning" and "Maintenance and storage").
2. Insert the collared tube into the nozzle housing that is supplied with a connection.
3. Place the nozzle member that has no connection in the right position.
4. Push the flexible nozzle end on the joint collar.
5. Attach one end of the tube to the Colibri head.

Attaching the device

1. Make sure the air mesh behind the connecting unit is in place.
2. Attach the free end of the tube to the device housing.
3. Attach one end of the 220 V mains cord to the plug on the lower part of the device housing, then the other end to the socket.

The device is ready for use.

Instructions for use

Before use, the device should be placed in such a way that the plug of the power cord can be easily pulled out from the socket! You can turn the device on or off by pushing and control the intensity of the suction by turning the button on top of the housing. Adjustability guarantees that after selecting the appropriate suction power, the parent cannot cause any secondary deformation in the nose. Before turning on the device, find the right airflow rate fit for your child's age based on Figure 2 (Adjusting the suction power).

The minimum value of the scale is suitable for newborns, the middle value for babies and the maximum value for small children and for preschoolers. The effectiveness of the device is highly influenced by the thickness of the mucus, the extent of the disease and the unique anatomy of the child. If the mucus is thin, you can use the device at a lower setting, if it is thick, you can use the device at a higher setting than usually.
The device can be operated exclusively by adults. Do not give the device ready for use to the child!
Hold the child in a stable position while using the device. Sit your child onto your lap and hold them or sit them into a straight position supporting their back with a pillow. You may also sit them into a resting chair with a tilted back.

Do not lay your child on their back and do not block the free nasal opening!
Make sure that the vents at the back of the device are free!
Hot air may exit the device through the vents!
Unplug the device after it has completely shut off and the cooling phase is over!

Insert the previously disinfected and dried Colibri head into the child's nose, and then turn on the device by pushing the control button (the device operates at the setting used last time).

Figure 3 – Correct positioning of the Colibri head
Push the tip of the Colibri head into the nose. The tip should point slightly downwards and outwards towards the eyeball. In this position, you can gently move the Colibri head. With this method you can reach the opening leading to the maxillary sinus and you will not hurt the mucous membrane of the nasal concha or the capillaries of the nasal septum.
The connection of the flexible tube should point downwards while in use.
The patented design of the Colibri head can hold up to 5 ml thin liquid and prevents the mucus from entering the flexible tube.
Dry and very thick mucus can be dissolved by saline solutions. Do not use more than 5 ml of these at a time because if liquid gets into the tube it can damage the device!
After using the solution, wait a few minutes, remove the mucus running out with a tissue. Only after this should the nasal aspirator be used.

Nose-drops and other medicinal products suggested by physicians should be used after the aspiration!
The suggested length of the aspiration is 10 seconds/nasal opening.

If you have to interrupt the aspiration, switch off the device. After the motor completely shuts down, you can restart it. The device switches off after 14 minutes of continuous use but it can be restarted. In case of overuse or if not providing the sufficient ventilation, the thermal switch switches off the device and will prevent re-use for approx. 50 minutes for safety reasons.
The Nosiboo Pro nasal aspirator can be used several times a day. It is recommended to clear the airways before sleeping time and feeding to ensure the peaceful breathing of the child.
Do not cause pain to the child; introduce the device and the method in a tolerant way.
Always switch off the device after use with the control button.
The motor will operate for a while to cool down after you have switched off the device.
Do not unplug the device from the mains until it completely shuts down!
Do not cover the vents on the back of the device while in use!
Unplug the device after it has completely shut off and the cooling phase is over.

Recommended power range:

• Use the lower values of the range in case of infants and the upper values in case of 4-year-old or older children.
• The suction power is highly influenced by the thickness of the mucus and the extent of illness.

Troubleshooting malfunctions

If you suspect malfunctioning of the Nosiboo Pro device, please read the information below. As the first step, the Troubleshooting guide provides suggestions for resolving concrete problems. In the chart, you can find the problems and the troubleshooting suggestions. If these suggestions do not solve the problem, the Malfunction management guide helps you/your merchant/distributor in localizing the malfunction as soon as possible.

Specialist service station contact details
Nosiboo Korea (JD International)
Tel. : +82 (0)2-419-3927
(Mo-Fr: 10am - 4pm / Lunch 12pm - 1pm)
Homepage: www.nosiboo.kr

Maintenance and storage

Only after the cooling process has stopped should the power cord be unplugged from the mains and from the device! Disconnect the tube from the device and the Colibri head. There is an air mesh behind the connecting unit which prevents solid objects and dust from entering the device. In the event of an unexpected drop in performance, it is recommended that you check the air mesh. If the air mesh is dirty or clogged, replace it with a spare air mesh. (A list of spare parts can be found in the "Accessories, spare parts" section.)

Figure 1 – Replacing the air mesh

Clean the housing with a dry, soft cloth; do not use any detergents or chemicals!
Keep the device in a closed space where it is protected from dust and damage (e.g. in a cabinet).
If you have more children, we recommended to use a separate Colibri head for each child and to store the Colibri heads separated.
Do not store near a heat source!

Cleaning

Figure 4 – Cleaning of the Colibri head

1. Remove the tube and the nose tip, then take apart the head housing.
2. Wash the collared tube, the nose tip, and the head housing in lukewarm water and dishwashing detergent and let them dry.
3. Clean the device housing with a dry, soft cloth; do not use any liquids, detergents or chemicals.
4. Wipe the tube with a cloth if necessary. Don't wash the tube.

Important information about reducing electromagnetic interferences

The home wireless network equipment, mobile phones and wireless phones may affect the operation of medical equipment, as electromagnetic interference can occur between devices. Electromagnetic interference may cause harmful interference in the operation of medical devices and therefore emergency situations may occur.
Due to the above mentioned reasons, medical devices mustn't interfere with any other equipment.
To guarantee the electromagnetic compatibility, the necessary requirements were fixed in standards. The standards define the protection level of the medical device and the maximum value of the electromagnetic radiation emitted by these.
The Nosiboo Pro nasal aspirator complies with the requirements of EN 60601-1-2:2007. In spite of that, you should follow the instructions below while using the device:

• Do not use your cell phone or wireless phone or any other device emitting strong electromagnetic radiation near the device! Otherwise, the device may malfunction which can cause an emergency.
• It is recommended to keep at least 5 m distance between the devices! Check the proper operation of the device if this distance is shorter!

Specifications

Adjustable motor performance: 200-370 W
Suction capacity: min. 20-45 mbar, max. 70-95 mbar
Max. air flow: 45 l/min
Power supply: 220 V 60 Hz
IP class: IP21
Protection class: II
Type of applied parts: BF
Applied parts: the complete housing
Operation type: no continuous operation
Operation length: on 1 min/appr. off 50 min
Duration of continuous use: max 14 min.
Tripping temperature of the thermal switch: 95°C
Average housing temperature: 30-35°C after 1 min continuous use
Temperature range: -10°C... +40°C
Relative humidity: max. 75%
Expected life of the housing (electrical parts): 3 years
Expected life of the Colibri head: 1 year
Diameter of the nasal insertion end of the Colibri head: min. 5.6 mm
Length of the nasal insertion end of the Colibri head: min. 32 mm
Weight (housing): 972 g
Dimensions (housing, W x H x D): 197 x 159 x 172 mm
Dimensions (complete package): 189 x 189 x 190 mm

Accessories and spare parts

Parts can be ordered from the Specialist service station:
Nosiboo Korea JD International 10F, 95ho, 25, Misagangbyeonseo-ro, Hanam-si, Gyeonggi-do, Republic of Korea
Postal code: 12918
Tel. : +82 (0)2-419-3927
(Mo-Fr: 10am - 4pm / Lunch 12pm - 1pm)
Homepage: www.nosiboo.kr
customer@nosiboo.kr

Photo	Reference (order number)	Name
	AC-05-01 * blue AC-05-02 * pink AC-05-03 * green	Colibri head
	AC-03-01 * blue AC-03-02 * pink AC-03-03 * green	Tube
	AC-04-01	Filter
	NO-01-022-A6-0WEA1	Power cord KR
	CO-01-01 * blue CO-01-02 * pink CO-01-03 * green	Colibri head + tube
	AC-06-01 * blue AC-06-02 * pink AC-06-03 * green	Connecting unit

Warranty

Manufacturer and specialist service station: Attract Kft. Hungary, H-7622 Pécs, Siklósi út 1/1 Tel: +36 72 551 642 (Mo-Fr: 8 am – 4 pm)
E-mail: customerservice@nosiboo.com

MANUFACTURED BY ATTRACT KFT.
7622 Pécs, Siklósi út 1/1 – Hungary
T +36 72 551 642
T +36 72 551 643
customerservice@nosiboo.com
www.nosiboo.kr
