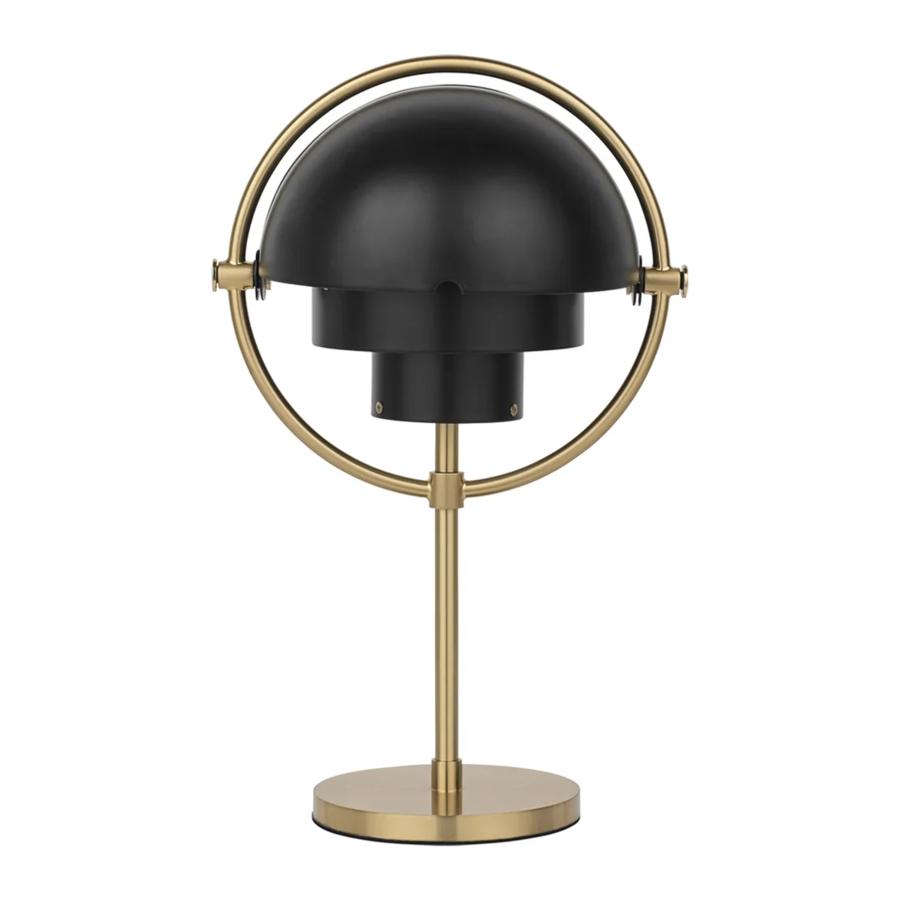

GUBI MULTI-LITE Manual

CONTENTS

ASSEMBLY INSTRUCTIONS

Loosen and detatch the threaded top cap covering the socket (a)
Insert the GUBI G4 bulb (included) into the socket placed in center of the lamp (b) Make sure that the bulb is placed in upright position.
Once the lightbulb is fixed, re-attach the top cap back in position. Make sure the cap is fully tightened.

Note: If using other light bulbs than included, GUBI cannot vouch for given light and battery efficiency. If in need of a new light bulb, please contact GUBI.

Use

Activate the lamp by touching either side of the lamp (a).
First touch will activate the light with 100% intensity. Second touch 40% intensity, third touch 10% intensity, fourth touch OFF.

Charging

Plug the USB-C electrical cable using a USB recharger (example: like a Phone charger) with 5V and min 1.000 mAh of power (Charger not included)
LED indicator will calmly breathing while charging, when charge is complete the LED indicator will show constant warm white light. Please remove charging cable after full charge. Lamp can be activated while USB cable is connected.

Battery

Light Duration: On full intensity (100% Charged), lamp will light up for 6,5H. On 40% intensity, light time will reach 14H and for 10% intensity is above 30H.
Charge time: 6H to reach fully charged (1.000 mAh current). Lamp can be used while charging, but it will affect the charging time.

Adjust position

Half-shades can be adjusted to obtain the desired light.

Friction

Over time the outer shades on Multi-lite portable might loose friction.
Attached hex-key makes it possible to tighten the connection between the shade to retain desired friction.

CARE INSTRUCTIONS

Daily cleaning can be done by wiping the frame with a clean dry cloth. Should the surface need more attention this can be cleaned with water and a light detergent or soap applied with a damp cloth. Wipe after with a clean dry cloth. Avoid any abrasive materials.

TROUBLESHOOTING

If lamp does not light, turn off the power. Check the bulb for a broken filament. Replace bulb if necessary, then turn it on.
If the lamp still does not light, please contact customer service at the local dealer. If the external flexible cable or cord of this lamp is damaged, it must be replaced by a qualified electrician in order to avoid a hazard.

TECHNICAL INFORMATION

Light sources: G4, 215 Lumen (Max 1,6W LED). Turn power off when changing light bulb. Isolation class III. The lamp is approved for outdoor use in damp/wet rooms (IP23). If the lamp is exposed to liquid, it must be dry before operating.
