A SSEMBLY INSTR UC TIONS

for

Multi-lite Portable Lamp

Need help?

Do you have a question about the MULTI-LITE and is the answer not in the manual?

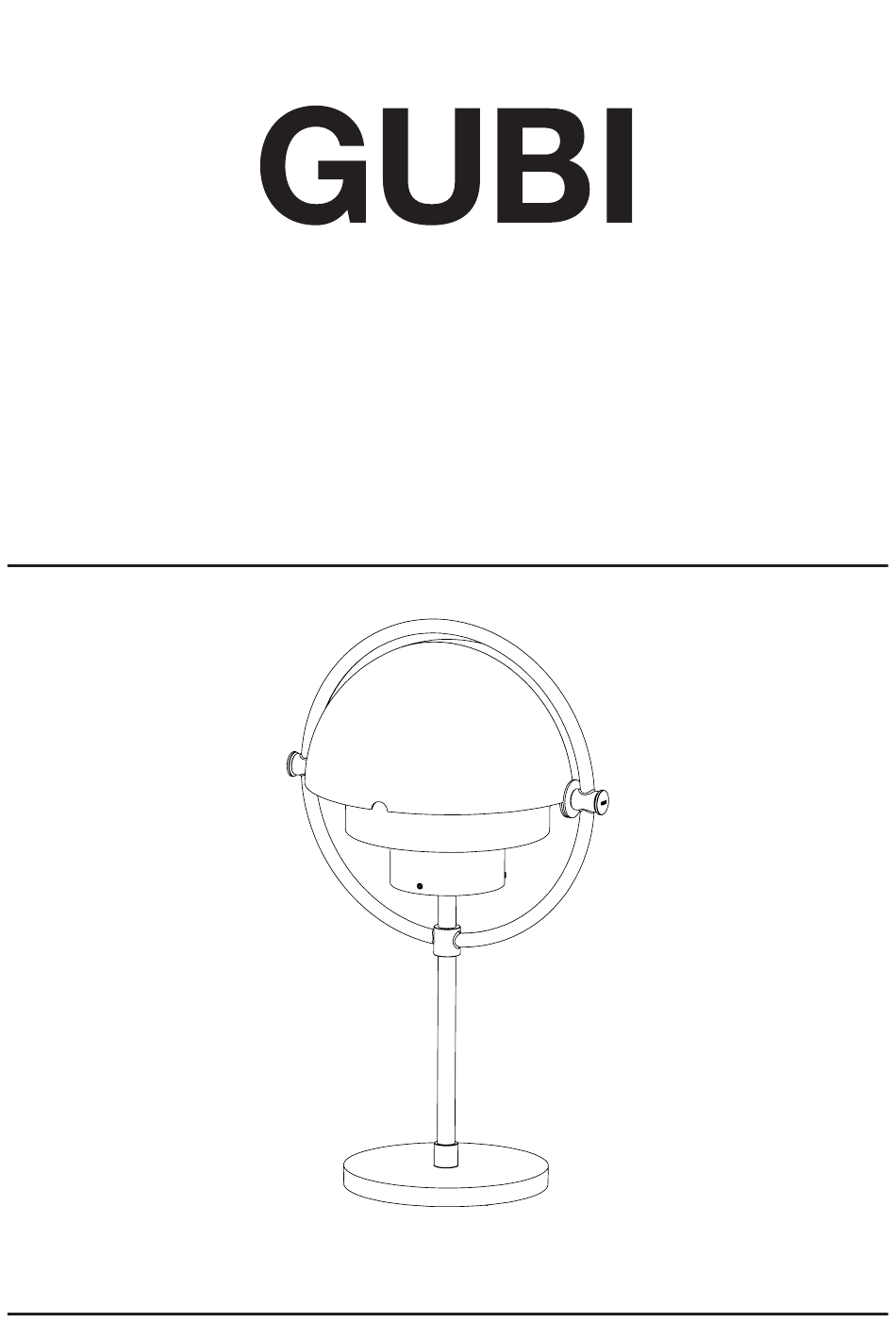

Page 1 A SSEMBLY INSTR UC TIONS Multi-lite Portable Lamp...
Page 2 CONTENTS Loosen and detatch the threaded top cap covering the socket (a) Insert the GUBI G4 bulb (included) into the socket placed in center of the lamp (b) Make sure that the bulb is placed in upright position. Once the lightbulb is fixed, re-attach the top cap back in position. Make sure the cap is fully tightened.
Page 3 Activate the lamp by touching either side of the lamp (a). First touch will activate the light with 100% intensity. Second touch 40% intensity, third touch 10% intensity, fourth touch OFF. 100%...
Page 4 Charging Plug the USB-C electrical cable using a USB recharger (example: like a Phone charger) with 5V and min 1.000 mAh of power (Charger not included) LED indicator will calmly breathing while charging, when charge is complete the LED indicator will show constant warm white light.
Page 5 Adjust position Half-shades can be adjusted to optain the desired light.
Page 6 Friction Over time the outer shades on Multi-lite portable might loose friction. Attached hex-key makes it possible to tighten the connection between the shade to retain desired friction.
Page 7 L’emballage est recyclable. Pensez bien au tri. service de collecte de matériel. Ne pas incinerar. For enquiries contact GUBI A/S - CVR: 17940384 Orientkaj 18-20. 2150 Nordhavn. Copenhagen, Denmark T +45 69 15 60 60 – order@gubi.com GUBI.COM...
