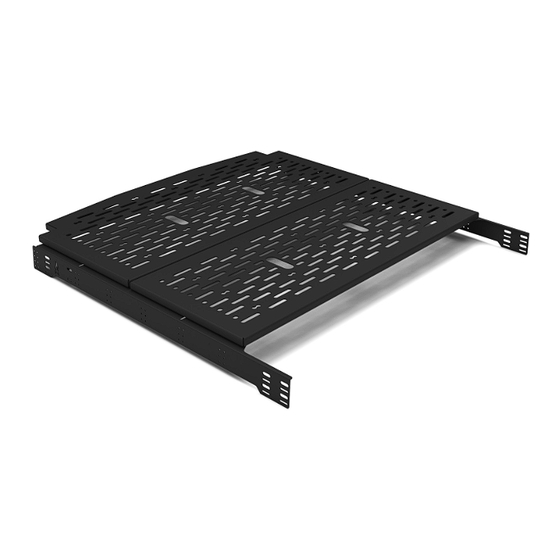

S PRI NTER VAN B ED SYST E M - FL ARE S PACE BE D: 2-PAN EL
SP0304 B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
POWER DRILL
+
25/64" DRILL BIT
+
RIVET NUT TOOL
+
7/32" ALLEN WRENCH
+
5/8" SOCKET OR WRENCH (ADWAG INSTALL)
+
TAPE MEASURE
+
MARKER
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 2 HOURS
Additional help is suggested for a few of the install
steps.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that all
parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1
Advertisement
Related Manuals for FVC SP0304B
Summary of Contents for FVC SP0304B
- Page 1 INSTALLATION GUIDE S PRI NTER VAN B ED SYST E M - FL ARE S PACE BE D: 2-PAN EL SP0304 B TOOLS REQUIRED (NOT INCLUDED) POWER DRILL 25/64” DRILL BIT RIVET NUT TOOL 7/32” ALLEN WRENCH 5/8” SOCKET OR WRENCH (ADWAG INSTALL) TAPE MEASURE MARKER INSTALL INFO...
-
Page 2: Before You Start
BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage. -
Page 3: Package Contents
PACKAGE CONTENTS QTY: 1 QTY: 1 QTY: 1 QTY: 1 PASSENGER SIDE DRIVER SIDE BED RAIL BED RAIL BED PANEL REAR BED PANEL QTY: 1 QTY: 1 QTY: 1 QTY: 1 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6... - Page 4 HARDWARE 3/8-16 X 1 SOCKET HEAD 3/8 SCREW FLAT WASHER 3/8 SCREW CUSHION WASHER L-TRACK STUD HEX DRIVE SCREW QTY: 6 QTY: 6 QTY: 6 QTY: 8 1/4-20 X 0.027-0.165 1/4-20 X 0.75 FLANGED THK HEAVY DUTY RIVET BUTTON HEAD HEX DRIVE SCREW QTY: 8 QTY: 8...
- Page 5 L-TRACK INSTALL FVC BRACKET INSTALL DIY INSTALL STEP | 01 LAYOUT AND INSTALL PREP The FVC Bed System is designed for install with the FVC Bed Bracket System, but is also DIY-mount and Adventure Wagon compatible. ADWAG/PANEL KIT WITH L-TRACK INSTALL 1.1 L-Track Studs are included for installing bed rails to the...
- Page 6 2.1a See mounting slots highlighted in FIG 1. These are designed to accomodate L-Track Studs for use when attaching FVC Bed Rails to L-Track. 2.2a Raise bed rails up to L-Track, align mounting slots to desired location and insert L-Track Studs to corresponding L-Track Key Ways (FIG 2).
- Page 7 5/32” ALLEN WRENCH STEP | 02B RAIL-TO-VAN INSTALL FRONT DRIVER SIDE RAIL FVC BED BRACKETS 2.1b See mounting slots highlighted in FIG 4. These are designed to accomodate the 1/4-20 screws included in the hardware pack. 2.2b Select desired height of bed.
- Page 8 2.1c See mounting slots highlighted in FIG 7. These are designed to accomodate 1/4” hardware for use when attaching FVC Bed Rails to the structural sheet metal of your van wall. 2.2c The structural member along the wall that provides the most surface area for securing the rails is highlighted in FIG 8.
- Page 9 TOOLS REQUIRED FOR THIS STEP: 7/32” ALLEN WRENCH STEP | 03 PLACING BED PANELS 3.1 Once you have the bed rails up and fully mounted, you can simply place the bed panels on and fasten them to the rails using the 3/8-16” Socket Cap Screws, 3/8” Flat Washers and 3/8”...
- Page 10 FVC (and see) from you! Head to the products and following along and we will make it right. FVC is product page and click “Leave a company of van and outdoor with your adventures. Tag us Review.”...
