HL10 Quick Reference Guide

Description

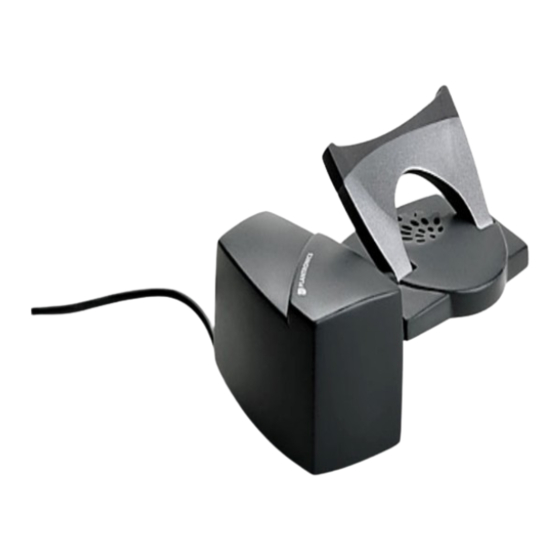

HL10 Lifter

HL10 Handset Lifter

The HL10 handset lifter can be used with the
CA40 DECT adapter and the A22 Amplifier to
provide automatic control of the telephone
hookswitch when a user receives a call.
HL10 replaces HL1 & HL2 lifters.
When CA40 or A22 is used with the lifter unit,
the user is alerted to an incoming call by two
methods:
1. Audible tone in the headset
2. Ringing tone from the remote pack
(CA40) or from the telephone (A22)
A small microphone is integrated within the unit
which picks up the ringing sound. A notification
signal is transmitted to the remote pack (CA40)
and the headset (CA40 & A22).
When this occurs, pressing the activation button
on the remote pack or the handset/headset
button on A22 takes the phone off hook and the
call can be taken through the headset.
completion of the call, the same button is
pressed again to return the handset to the on-
hook state.
If the user has chosen to connect to an external
audio device e.g. a PC CD player, he may listen
to it through his headset. To do so he needs to
make sure that the audio device is turned on
and ensure that the A22 or CA40 is in handset
mode.
Small compact and discrete
•
Stylish
•
2 year warranty
•

Part Number

EAN 13 Bar Code

36390-01 5 033 588 010 340
Desc. Part No.
HL10 ???
On
EAN13 Bar Code
???
