THORLABS PDQ80S1 Operation Manual

THORLABS PDQ80S1 Operation Manual

Position detector systems
Hide thumbs

Advertisement

Quick Links

Download this manual
PDQ80S1, PDP90S1
Position Detector Systems
Operation Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the PDQ80S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for THORLABS PDQ80S1

Summary of Contents for THORLABS PDQ80S1

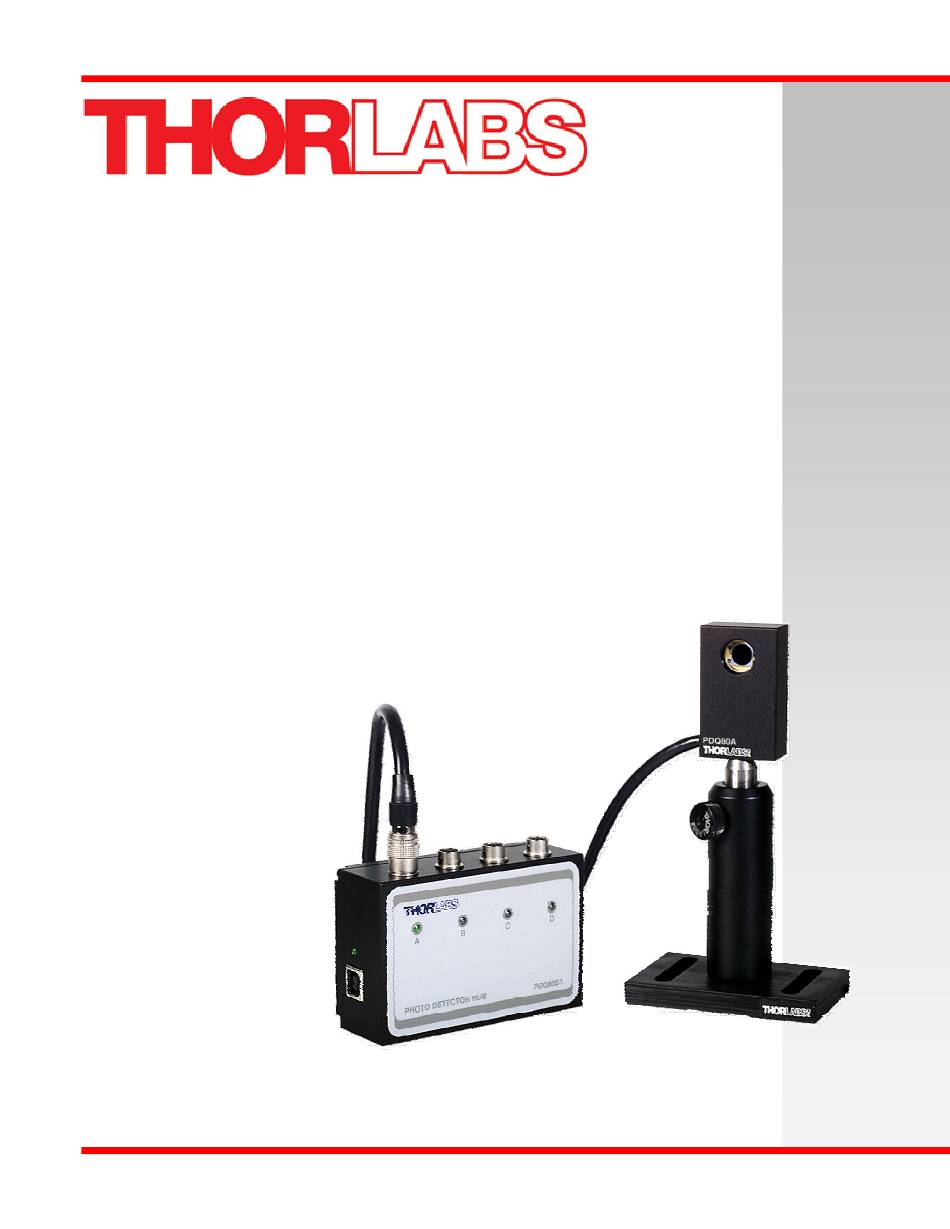

  • Page 1 PDQ80S1, PDP90S1 Position Detector Systems Operation Manual...
  • Page 2 5.1. In the Win2000 and XP Operating System ..................37 5.2. Running the Display Program ......................37 5.3. Troubleshooting FAQ ..........................38 Part 6. PDQ80S1 Specifications ......................40 6.1. Hardware Specifications........................40 PSD Hub .................................. 40 PDQ80A Sensor............................... 40 PDP90A Sensor ............................... 41 13374-D02 Rev G, June 27, 2008 Page 1 www.thorlabs.com...
  • Page 3 6.2. Software Specifications ..........................41 Display Graphics Specifications ..........................42 PC System Requirements............................42 6.3. PDQ80A Mechanical Drawing......................43 6.4. PDP90A Mechanical Drawing.......................44 Part 7. Regulatory ..........................45 Part 8. Thorlabs Worldwide Contacts ....................46 13374-D02 Rev G, June 27, 2008 Page 2 www.thorlabs.com...
  • Page 4 Position Sensing System Table of Figures Figure 1: Four Channel Hub (PDQ80S1 Shown).................. 5 Figure 2: Beam Alignment Detector Program Main Screen ............... 15 Figure 3: Open Device Menu ......................16 Figure 4: Main Display with Activated Device................... 16 Figure 5: Main Screen with the Start Scan Button Depressed ............
  • Page 5 Part 1. Introduction The PDQ80S1 and PDP90S1 (from now on referred to as the PSD System) are a visible to IR beam alignment solution consisting of one detector and one sensor processing hub. Up to four sensors can be connected to a single hub.
  • Page 6 USB 2.0 Port Figure 1: Four Channel Hub (PDQ80S1 Shown) The hub can be powered by connecting the device to either a PC or a USB AC power converter. Once connected to the PC, the device can be controlled with the PSD Beam Alignment Display program. If the device is powered with the USB AC power converter, it will operate in Stand-Alone Mode, and the Sensor Status LED is used to verify beam alignment.
  • Page 7 PSD, a dedicated USB 2.0 High-Speed port is highly recommended. If it is necessary to connect the PSD through a USB hub, a powered hub is required in order to supply the required power. 13374-D02 Rev G, June 27, 2008 Page 6 www.thorlabs.com...
  • Page 8 The sum output signal may be used to provide preliminary alignment of either device to the source light beam. First, the beam position is adjusted for maximum sum output signal. Second the beam is adjusted 13374-D02 Rev G, June 27, 2008 Page 7 www.thorlabs.com...
  • Page 9 If the hub has initialized in USB device mode and sensor data has been requested by a host PC application, each of the sensor samples is sent to the USB port in 16-bit 2’s complement format using the following 12 word packet configuration: 13374-D02 Rev G, June 27, 2008 Page 8 www.thorlabs.com...
  • Page 10 Alignment Window setting on the device. The default setting for both X and Y is 100 and Aligned Aligned may be set to any value between 1 and 254 using the Beam Alignment Display program panel. 13374-D02 Rev G, June 27, 2008 Page 9 www.thorlabs.com...
  • Page 11 4. Repeat steps 1 and 2 to determine the upper and lower limits of the Y-Axis Difference value by moving the beam in the vertical direction. 13374-D02 Rev G, June 27, 2008 Page 10 www.thorlabs.com...
  • Page 12 A through D, by toggling the corresponding green status LED on the face of the device. This permits the user to monitor simple alignment status without needing a computer. 13374-D02 Rev G, June 27, 2008 Page 11 www.thorlabs.com...
  • Page 13 Thorlabs Beam Alignment Display software supplied on the provided CDROM. The procedure for enabling and disabling Stand-Alone Mode operation on the PDQ80S1 device is detailed on page 26. The ability to enable or disable Stand-Alone Mode operation on the PSD is only available on devices running firmware revision 1.03 or later.
  • Page 14 To install the Beam Alignment Display application and the USB Application Program Interface Library, mouse click on the “Install Software” menu button. Unless an alternative installation path is specified during the installation, the PDQ80S1 Beam Alignment Display application executable QDdisplay.exe is installed in the directory %ProgramFiles%\Thorlabs\PDQ80S1\ and the PDQ80S1 USB Application...
  • Page 15 Device Manager (open the Control Panel, click on the System icon, click the Hardware tab, and click on Device Manager). A device icon with the label “Jungo” should appear. Expand the icon and verify an additional device icon is present with the label “Thorlabs PDQ80S1 Quadrant Detector”...
  • Page 16 Position Sensing System Running the Beam Alignment Display Application To activate the Beam Alignment Display program go to the Start Menu → Thorlabs → PDQ80S1 → PDQ80S1 Beam Alignment Detector. The Beam Alignment Display panel should appear as shown below.
  • Page 17 Main Display with Activated Device Note that the device status bar displays the device label of the PDQ80S1 device that has just been opened. The “Start Scan” button is no longer dimmed and the “USB Port Status” indicator lamp is lit green.
  • Page 18 Note that the beam position for each enabled sensor is indicated in the graphic display by a color coded icon matching the sensor label adjacent to its Beam Status LED. The Beam Status LED for Sensor A is 13374-D02 Rev G, June 27, 2008 Page 17 www.thorlabs.com...
  • Page 19 Beam Alignment Display program has lost communication with the device and the device status bar displays “No Active Device.” If the device is re-attached, the Beam Alignment Display program will 13374-D02 Rev G, June 27, 2008 Page 18 www.thorlabs.com...
  • Page 20 • Horizontal Alignment Window Adjustment Control • Vertical Alignment Window Adjustment Control • Scan Interval Adjustment Control In addition, the display panel provides pull-down menus for configuring the display and controlling the device. 13374-D02 Rev G, June 27, 2008 Page 19 www.thorlabs.com...
  • Page 21 Position” display are arranged in a matrix with each row corresponding to a sensor: A, B, C, or D. As stated earlier, only one sensor is provided with the either the PDQ80S1 or PDP90S1, although additional sensors can be purchased separately and operated using one device hub.
  • Page 22 Position Sensing System Color Indication No communication initiated between the Beam Alignment Display program and the PDQ80S1. Black (Off) The USB connection is not initialized. The Beam Alignment Display program is attempting to initialize USB communications with the Yellow PDQ80S1.
  • Page 23 When the display program panel is initially launched, the beam alignment display and status indicators are disabled for all four sensors. Mouse clicking a checkbox enables the beam alignment display indicators for the corresponding sensor. When 13374-D02 Rev G, June 27, 2008 Page 22 www.thorlabs.com...
  • Page 24 Stand-Alone Mode. The default settings stored on the device may be retrieved as the current settings by pressing the adjacent “Reset” button. 13374-D02 Rev G, June 27, 2008 Page 23 www.thorlabs.com...
  • Page 25 “Reset” button. Note: It is not advisable to use the Beam Alignment Display program to scan a PDQ80S1 device with a Scan Interval setting greater than 50 ms. The display program permits the user to set the Scan Interval over its full range for use in Stand-Alone Mode or in conjunction with the device Application Program Interface for applications requiring very low scan rates.
  • Page 26 “Display Device Information” when selected, launches a pop-up status widow that displays the device serial number and device firmware revision. Figure 10: Display Device Information Pop-Up 13374-D02 Rev G, June 27, 2008 Page 25 www.thorlabs.com...
  • Page 27 USB instrument connected to a PC. Configuring the Hub for Stand-Alone Operation The hub may be configured to either allow or prevent operation as a stand-alone instrument by following the steps below. 13374-D02 Rev G, June 27, 2008 Page 26 www.thorlabs.com...
  • Page 28 Figure 14: Beam Alignment Display Data Save from File Menu Figure 15: Beam Alignment Display Data Save from “Save Data” button Clicking on the “Save XY Data” opens and displays the Save Configuration pop-up window. 13374-D02 Rev G, June 27, 2008 Page 27 www.thorlabs.com...
  • Page 29 The user has an option to name the data file. The default file name is set to File to Record to PDQ_XV_DATA.CSV, a coma delimited ASCII file that can be easily opened with a spreadsheet software program such as Excel. See Figure 17. 13374-D02 Rev G, June 27, 2008 Page 28 www.thorlabs.com...
  • Page 30 Clear Text Box This button clears the entire contents of the text box. Cancel This buttons closes the PDQ80S1 Save Configuration of the Panel Figure 18: Sample Data Collected in Text Box for Single Scan 4.6. Application Program Interface Description The Application Program Interface (API) provides a means by which the PSD may be integrated into a software application requiring a beam alignment sensing function.
  • Page 31 This is a header file describing the generic USB interface methods for the hub and must be included in C source files that call functions implemented by the PDQ80S1 API. This file is installed in the API subdirectory of the software installation directory as described on page 13.
  • Page 32 Position Sensing System API Methods Description The following methods are included in the API. The following methods are not application specific and may be implemented for any Thorlabs USB instruments that are compatible with this API. API Generic USB Methods Command...
  • Page 33 USB Serial String descriptor concatenated into a single string. unsigned short Returns the USB device Product ID in 16 bit unsigned format. For the USBGetDevProductID(void) PDQ80S1, it returns the integer 0x0020. void USBPullDeviceSN(unsigned char Updates the driver object resident USB serial number string descriptor with the *cLabel) Serial string stored on the USB device.
  • Page 34 PDQ80S1 can be called. This function performs USB initialization for a Thorlabs USB instrument with the PDQ80S1 USB product ID: 0x0020. This function is the equivalent of a call to USBinit(0x0020). unsigned long...
  • Page 35 Use only the API library supplied by Thorlabs specifically for the PSD to communicate with this device. Similar API libraries may be supplied for other Thorlabs USB devices. They should not be used with the PSD. The device may respond differently and in an unexpected manner to some USB command methods encapsulated in libraries not intended for the device.
  • Page 36 USB commands to the hub other than PDQStopScan. Sending other USB commands to the hub during a scanning process will result in scan errors and ultimately could require resetting the device and restarting your application. 13374-D02 Rev G, June 27, 2008 Page 35 www.thorlabs.com...
  • Page 37 SensorA_TotalPower = sensorData[2]; SensorB_Xdifference = -sensorData[3]; SensorB_Ydifference = sensorData[4]; SensorB_TotalPower = sensorData[5]; SensorC_Xdifference = -sensorData[6]; SensorC_Ydifference = sensorData[7]; SensorC_TotalPower = sensorData[8]; SensorD_Xdifference = -sensorData[9]; SensorD_Ydifference = sensorData[10]; SensorD_TotalPower = sensorData[11]; PDQStopScan(); USBUninit(); 13374-D02 Rev G, June 27, 2008 Page 36 www.thorlabs.com...
  • Page 38 The USB device driver file WINDRVR6.SYS must be located in C:\WINNT\system32\drivers. For Windows 2000 and XP systems, the driver files WINDRVR6.INF and PDQ80S1.INF must be located in C:\WINNT\INF. You must have administrator privileges to install and run the application display program.
  • Page 39 “Uninstall Driver” button. Reconnect your hub to the USB port. Verify the device icon: “Jungo” with “Thorlabs PDQ80S1” is not present. If it is present, left click on “Thorlabs PDQ80S1” and select Uninstall. To re-install the USB driver, insert the CDROM.
  • Page 40 If the Application and Driver installations are successful, when the hub is connected to the USB port, the Beam Alignment Display program is launched, a device is connected, the and USB Port Status LED is green. 13374-D02 Rev G, June 27, 2008 Page 39 www.thorlabs.com...
  • Page 41 Position Sensing System Part 6. PDQ80S1 Specifications 6.1. Hardware Specifications PSD Hub Specification Description Input Power Requirements 5 V @ <500 mA via USB Port PC Interface USB 2.0 High Speed (480 Mb/s) Maximum Scan Rate 1,000 scans/sec Number of Sensor Inputs...
  • Page 42 10 to 40°C 6.2. Software Specifications The PDQ80S1 Software is compatible with Windows 2000 and XP by means of system device drivers and an Application Program Interface provided via a Microsoft Visual C++ compatible static library. The following files are provided.
  • Page 43 • 750 MHz Pentium III or Higher with 128 MB RAM • Hard-Drive with 16 MB free space • CD-ROM • Dedicated USB 2.0 High-Speed Port • Mouse or Compatible Pointing Device • Windows 2000 or XP Installed 13374-D02 Rev G, June 27, 2008 Page 42 www.thorlabs.com...
  • Page 44 Position Sensing System 6.3. PDQ80A Mechanical Drawing Figure 19: PDQ80A Enclosure Dimensions Sensor Orientation Figure 20: PDQ80A Sensor Orientation 13374-D02 Rev G, June 27, 2008 Page 43 www.thorlabs.com...
  • Page 45 Position Sensing System 6.4. PDP90A Mechanical Drawing Figure 21: PDP90A Mechanical Drawing 13374-D02 Rev G, June 27, 2008 Page 44 www.thorlabs.com...
  • Page 46 7.1. Waste Treatment is Your Own Responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site.
  • Page 47 Position Sensing System Part 8. Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to- date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc. Thorlabs Ltd. sales@thorlabs.com sales.uk@thorlabs.com techsupport@thorlabs.com...
  • Page 48 www.thorlabs.com...
