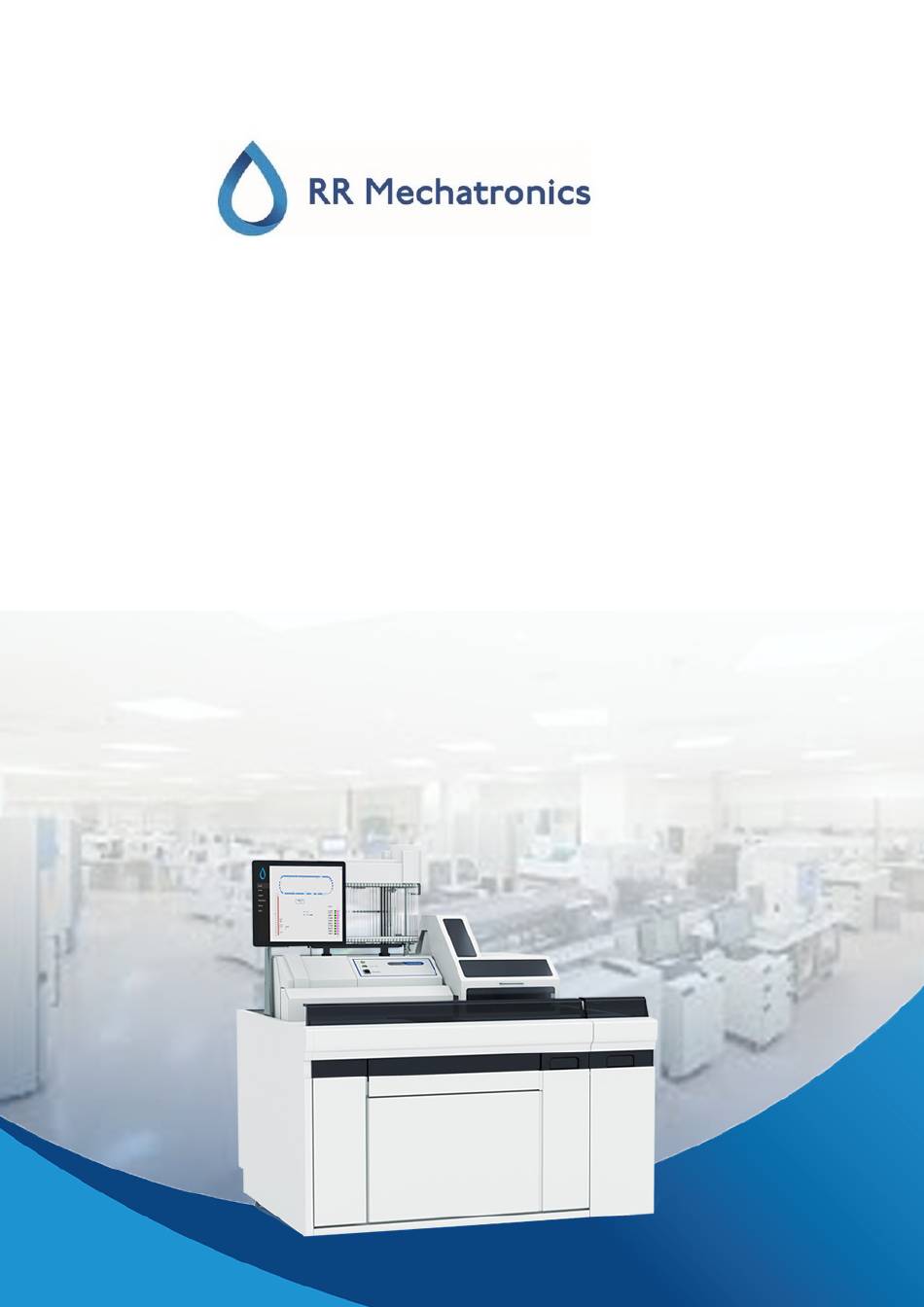

- Page 1 Quick Application Guide Interrliner D0062828 -EN Version A01 (15-12-2023)
- Page 3 6 Shutdown............. . Blank Blank Blank This is an extract from the Interrliner Instructions for Use and describes the basic operation of the instrument. Please read the Instructions for Use for more information and details. D0062828 -EN Version A01 (15-12-2023) Interrliner...
- Page 4 Check the In-pool, the conveyor-belt and the robotic unit for unblocked passageways. Racks may only be present on the pool’s stainless steel storage areas. Check if the Robot hood is closed. Start sequence: Switch the ESR analyzer unit the Interrliner. Switch the PC and the monitor. Wait until "Windows" is ready for use.
- Page 5 (see Instructions for use for more information). Results can be send to the LIS and are also visible in the Starrsed Software: Restore tube after each use (at 18°-30°C). D0062828 -EN Version A01 (15-12-2023) Interrliner...
- Page 6 Performing quality control Starrsed Control should be disposed of as medical waste. D0062828 -EN Version A01 (15-12-2023) Interrliner...
- Page 7 After all sample tubes in a rack are processed, the rack will be removed and transported to the Front Return Unit. ATTENTION: It is not allowed to change sample tubes in a rack or remove sample tubes while the rack is processed. This may cause malfunction of the instrument. D0062828 -EN Version A01 (15-12-2023) Interrliner...
- Page 8 Perform the necessary maintenance or contact the service representative) • Check regularly the ESR statistics in the software for any increase in ESR errors, haziness, dilution errors or bubbles on top warnings, see ESR Statistics screens. D0062828 -EN Version A01 (15-12-2023) Interrliner...
- Page 9 Display full patient result the selected sample. In the header of the table the names of the columns are shown. Double-click the header of any column to sort the table by this column in ascending order. D0062828 -EN Version A01 (15-12-2023) Interrliner...
- Page 10 When the 60 minute method is used, this is the minutes value. calculated 60 When the 30 minutes method is used, this is the minutes value. ESR 60 min T.Corr Temperature correction is used. This is the 60 minutes value corrected to 18°C. D0062828 -EN Version A01 (15-12-2023) Interrliner...
- Page 11 Troubleshooting Air bubbles. Limit error Error One of the following limits are out of the setting range: • ESR Time • Column height • Dilution • Bubbles on top • Hazy aspect • Temperature D0062828 -EN Version A01 (15-12-2023) Interrliner...
- Page 12 Reagent replacement Reagent replacement Use only the Mechatronics bulk reagent cubitainers on the Interrliner. For storage of deionized water, a plastic 5l bottle is delivered (including a specific level sensor and adapter). Open the swing door and place the containers on the turntable.
- Page 13 The sensors and the reagents have the following color codes: Reagent Color code Starrsed Rinse solution Green Starrsed Saline Yellow Starrsed Diluent Grey Deionized water Blue Starrsed Disinfectant White D0062828 -EN Version A01 (15-12-2023) Interrliner...
- Page 14 Shutdown It is recommended to turn the Interrliner off at the end of the day. Before the instrument is turned off, it is good practice to carry out the Daily maintenance or at least the End-of-day wash procedure. This will help to keep the instrument clean and almost free of bacterial growth for a period of days.
