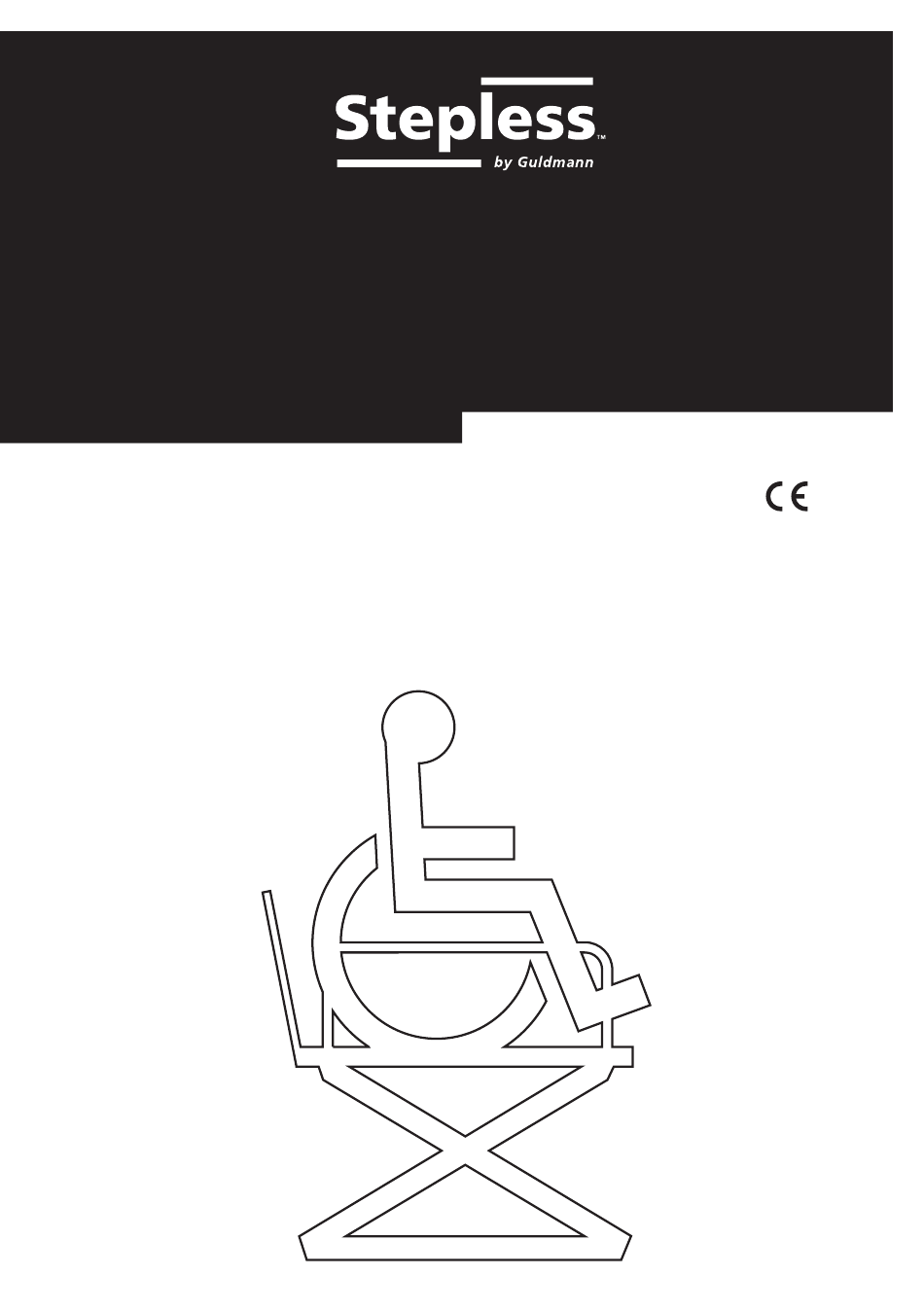

- Page 1 GB . . . . . . . LP11 lifting platform LP11 Side exit lifting platform Vers . 14...
- Page 2 LP11 lifting platform LP11 Side exit lifting platform Item no .: 13011 and 13011-S 1 .00 . . . . . . . . . Purpose and use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1.01 .
- Page 3 1 .00 Purpose and use 1 .01 Manufacturer V. Guldmann A/S Graham Bells Vej 21-23A DK-8200 Aarhus N Tel. +45 8741 3100 1 .02 Purpose and use Purpose LP11 is a mobile lifting platform that can be used to negotiate height differen- ces between a platform and a train.
- Page 4 If the packaging is damaged, the lifting platform must be examined carefully for damages. If the lifting platform is damaged, it must not be used until quali- fied service technicians or the Guldmann Service Team have approved it. Preparation The lifting platform must be charged. See chapter 2.12 concerning charging.
- Page 5 2 .00 Description of features 2 .01 Lifting platform overview- LP11 1. Railing right 2. Lower ramp 3. Railing left 4. Upper ramp 5. Base structure 6. Upper ramp lock 7. Wheel 8. Scissor 9. Battery and controller box 10. Emergency stop 11.
- Page 6 2 .02 Lifting platform overview - LP11 Side exit 1. Railing right 2. Lower ramp 3. Railing left 4. Upper ramp 5. Base structure 6. Upper ramp lock 7. Wheel 8. Scissor 9. Battery and controller box 10. Emergency stop 11.
- Page 7 24V DC 24V. DC Disabled sign Stepless label with CE logo, serial number and max. lifting capacity Xxxxxxxx max xxx kg / xxx lbs V. Guldmann A/S Part no. xxxxxx Graham Bells Vej 21-23A Serial no. xxxxxxxxxx DK-8200 Aarhus N 230V, 0.5A, xx Hz, xx W...
- Page 8 2 .04 Brake function • Activate the brake of 2 of the wheels by applying the brake pedal. Always brake the lifting platform on lifting and lowering. Always leave the platform with brakes applied and locked to avoid unintended use. •...
- Page 9 2 .06 Safety list Description of the safety list Between the platform and base structure there is a safety list which prevents crushing of limbs. Check that there are no obstacles under the platform. If the safety list is activated during descent, the platform will automatically stop the descent.
- Page 10 2 .07 Wheels The Lifting platform is delivered with 4 wheels. Two wheels are castor wheels with brake function. When the brake is de-activated, these two castor wheels have swivel function. The two other wheels do not have swivel or brake funktion, which gives the best possible way of moving the lifting platform.
- Page 11 2 .08 Lower Ramp and lock handle The lower ramp can be locked or un-locked by means of the lock handle. Only un-lock the lower ramp when the lifting platform is in down position. The different positions are shown in the pictures below. The strap can be used to ease getting the ramp closed.
- Page 12 2 .09 Upper Ramp and lock handle The upper ramp can be adjusted and slide from side to side to be able to fit the width of the upper-level floor. The different positions are shown in the pictures below. LP11 - upper ramp Narrow, left.
- Page 13 Upper ramp un-locked in closed position LP11 LP11 Side exit Upper ramp un-locked in open position LP11 LP11 Side exit...
- Page 14 2 .10 Operation Prior to use 1. Use the supplied key to unlock the brake pedal and the lid on the battery box. 2. Connect the cable to establish connection to the battery. 3. Make sure the emergency stop button is released.
- Page 15 4. Close the Lower ramp and lock it. Use the help strap, if needed. 5. Push and hold the Up button on the operation panel to raise the platform. Note: The lifting platform movement is based on the “hold to run” principle. 6.
- Page 16 2 .11 Indicator light Lifting platform battery indicator lights Battery status Indicator light Indicator light Charging Red light on Fully charged, Green light on still connected to charger Normal Green light flashing 40-100% battery level Low level Yellow light flashing 20-40% battery level platform shall be charged Critically low level...
- Page 17 2 .12 Modes of charging 1 . Connecting the charger on site The lifting platform is charged using the socket on the battery box. Connect the charger to the mains. Put the charger’s other plug in the battery box’s socket. The charger must only be used in dry conditions.
- Page 18 2 .14 Emergency lowering Description of emergency lowering It is possible to operate the lifting platform if the operations panel fails. The controller box contains the emergency lowering device as well as extra up/down buttons. To operate the emergency lowering device the button must be activated.
- Page 19 3 .00 Transport The lifting platform is equipped with wheels and can be pushed. The brake pedal must be de-activated – see Section 2.04. The lifting platform must be in its lowest position before it is moved. The battery box can be removed and transported separately. E.g. for charging or cleaning purposes.
- Page 20 • Check that the battery box is charged and connected • Contact the Guldmann Service Team or the distributor If the LP11 can go up, but not down • Remove impurities from the safety jam strip •...
- Page 21 The datasheet can also be found under downloads: www.Stepless.com/int/products/platform-lifts/standard/lp11-mobile-platform-lift LP11 mobile platform lift | Stepless International For electrical schematics, please contact the Guldmann Service Team or your distributor. 7 .00 EU Declaration of conformity The product is manufactured in compliance with the Council Directive...
- Page 22 (the “Warranty Period”). If a valid claim is made during the Warranty Period for malfunction or equipment defect, Guldmann will repair or replace the equipment at no additional cost to you. Guldmann retains sole discretion as to whether the equipment will be repaired or replaced.
- Page 24 V . Guldmann A/S Tel. +45 8741 3100 E-mail info@guldmann.com www.stepless.com...
