Summary of Contents for TP-Link Archer TX20U

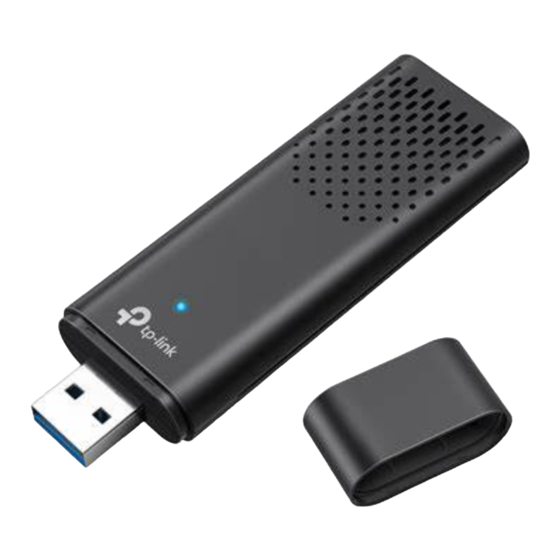

- Page 1 User Guide AX1800 Dual Band Wi-Fi 6 Wireless USB Adapter Archer TX20U © 2023 TP-Link 1910013444 REV1.0.0...
-
Page 2: Table Of Contents
Contents Chapter 1. About This Guide ........1 Chapter 2. -
Page 3: Chapter 1. About This Guide
• Specifications can be found on the product page at https://www.tp-link.com. • A TP-Link Community is provided for you to discuss our products at https://community.tp-link.com. • Our Technical Support contact information can be found at the... -
Page 4: Chapter 2. Get To Know About Your Adapter
Chapter Get to Know About Your Adapter This chapter introduces what the adapter can do and shows its appearance. This chapter contains the following sections: • Product Overview • LED Status... -
Page 5: Product Overview
Get to Know about Your Adapter 1. 1. Product Overview TP-Link Wireless USB Adapter connects your computer to a Wi-Fi network for smooth HD video, voice streaming and online gaming. • Fast WiFi 6 - Break the gigabit barrier with speeds up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz). - Page 6 Chapter 1 Get to Know about Your Adapter 2. Remove and reinsert the adapter. 3. Reinstall the software, if necessary.
-
Page 7: Chapter 3. Use The Adapter
Chapter Use the Adapter This chapter introduces how to install your adapter’s driver, use your adapter to join a wireless network, and uninstall your adapter in a Windows system. The adapter is equipped with a Setup Wizard, which can guide you through the installation process. -
Page 8: Install Driver
SetupInstall.exe Note: 1. If you cannot find the setup program, please download the driver at www.tp-link.com/support. 2. If an unknown publisher message pops up, select Yes to continue. 3. If Windows User Account Control requires admin credentials, type user name and password of your Windows administrator account. -
Page 9: Chapter 4. Appendix: Troubleshooting
1. On your computer, please right click Computer icon and go to Manage; 2. Open the Device Manager and go to Network adapters, and then find the corresponding TP-Link adapter, right click it and then go to Properties;... - Page 10 3. If you can see “This device is working properly.” in the red box, you have already installed the driver successfully. T3. What should I do if can’t connect to the Wi-Fi after installing the driver? • Refer to to check if you have installed the driver for your adapter successfully . •...
- Page 11 There is a character string “Ver:X. Y ” (for example, Ver:2.0) in the Serial Number field, and the number X is the hardware version of the adapter. • Visit https://www.tp-link.com/faq-46.html and follow the second method to find the hardware version of the adapter. For more detailed instructions: •...
- Page 12 FCC compliance information statement Product Name: AX1800 Dual Band Wi-Fi 6 Wireless USB Adapter Model Number: Archer TX20U Responsible party: TP-Link USA Corporation Address: 10 Mauchly, Irvine, CA 92618 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: sales.usa@tp-link.com...
- Page 13 5mm spacing from the body and that compliance is achieved at that distance. We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15.
- Page 14 5470 MHz -5725 MHz (23dBm) EU declaration of conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2011/65/ EU and (EU)2015/863. The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce...
- Page 15 National restrictions Attention: This device may only be used indoors in all EU member states, EFTA countries and Northern Ireland. Frequency band: 5150 - 5250 MHz: Indoor use: Inside buildings only. Installations and use inside road vehicles and train carriages are not permitted. Limited outdoor use: If used outdoors, equipment shall not be attached to a fixed installation or to the external body of road vehicles, a fixed infrastructure or a fixed outdoor antenna.
- Page 16 2 ) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. Caution: 1 ) The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;...
- Page 17 取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變 更頻率、加大功率或變更原設計之特性及功能。 低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象 時，應立即停用，並改善至無干擾時方得繼續使用。 前述合法通信，指依電信管理法規定作業之無線電通信。 低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干 擾。 應避免影響附近雷達系統之操作。 BSMI Notice 安全諮詢及注意事項 • 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。 • 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。 • 注意防潮，請勿將水或其他液體潑灑到本產品上。 • 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋 開口。 • 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位 置中。 • 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。 限用物質含有情況標示聲明書 限用物質及其化學符號 產品元件 鉛 鎘 汞 六價鉻 多溴聯苯 多溴二苯醚 名稱 PBDE ○ ○ ○ ○ ○...
- Page 18 Safety Information • Keep the device away from water, fire, humidity or hot environments. • Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us. • Do not use the device where wireless devices are not allowed. •...
