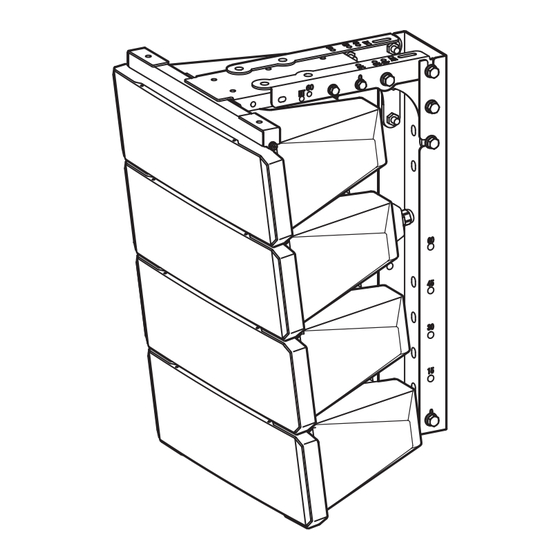

SpeAker wALL MOUNTINg brAckeTS
Thank you for purchasing TOA's Speaker Wall Mounting Bracket.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
TAbLe OF cONTeNTS
1. SAFeTY precAUTIONS ............................. 1
2. geNerAL DeScrIpTION ........................... 2
3. NOTeS ON INSTALLATION ........................ 2
1. SAFeTY precAUTIONS
• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe
operation.
• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or
cautions regarding safety.
• After reading, keep this manual handy for future reference.
wArNINg
Indicates a potentially hazardous situation which,
if mishandled, could result in death or serious
personal injury.
• Install the speaker only in a location that can
structurally support the weight of the speaker and
the mounting bracket. Doing otherwise may result
in the speaker falling down and causing personal
injury and/or property damage.
• When installing the speaker under the eaves in the
snowy area, take appropriate measures to prevent
snow from lying on the speaker. If snow lies on the
speaker, it may fall, causing personal injuries.
• Owing to the speaker's size and weight, be sure
that at least two persons are available to install the
speaker. Failure to do so could result in personal
injury.
• Do not use other methods than specified to mount
the speaker. Extreme force is applied to the bracket
and the speaker could fall off, possibly resulting in
personal injuries.
• Use safety wires when installing speakers. If not
used, personal injury could result if a speaker
should accidentally fall.
HY-MS7b-wp, HY-MS7w-wp
4. MOUNTINg DIAgrAM ................................ 2
5. INSTALLATION ............................................ 3
7. SpecIFIcATIONS ......................................... 8
• Attach the safety wire to the speaker. If not attached,
the speaker could fall off, resulting in personal
injury.
• Use nuts and bolts that are appropriate for the
wall's structure and composition. Failure to do so
may cause the speaker to fall, resulting in material
damage and possible personal injury.
• Tighten each nut and bolt securely. Ensure that
the bracket has no loose joints after installation
to prevent accidents that could result in personal
injury.
• Use the HX-7B-WP and HX-7W-WP Speaker
System in combination.
Doing otherwise may cause the speaker to fall off,
resulting in personal injury.
• Do not mount the speaker in locations exposed
to constant vibration. The mounting bracket can
be damaged by excessive vibration, potentially
causing the speaker to fall, which could result in
personal injury.
• Avoid installing the speaker in locations close to the
seashore or in indoor swimming facilities that are
not well ventilated. In such locations, the bracket
may be vulnerable to corrosion, eventually allowing
the speaker to fall resulting in personal injury.
INSTALLATION MANUAL
Advertisement
Related Manuals for Toa HY-MS7B-WP
Summary of Contents for Toa HY-MS7B-WP
- Page 1 INSTALLATION MANUAL SpeAker wALL MOUNTINg brAckeTS HY-MS7b-wp, HY-MS7w-wp Thank you for purchasing TOA’s Speaker Wall Mounting Bracket. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. TAbLe OF cONTeNTS 1. SAFeTY precAUTIONS ......1 4.
- Page 2 result in personal injury and/or property damage. cAUTION In addition, the object itself may fall off and cause injury and/or damage. Indicates a potentially hazardous situation which, • Do not stand or sit on, nor hang down from the unit if mishandled, could result in moderate or minor as this may cause the speaker to fall down or drop, personal injury, and/or property damage.
- Page 3 5. INSTALLATION • Use safety wires when installing speakers. If not used, personal injury could result if a speaker should accidentally fall. • Tighten the bolts securely, as instructed below. wArNINg Failure to follow instructions precisely could result in a falling speaker and potential personal injury. · Ensure that all bolts are securely inserted as far as their threads go, then securely fasten each bolt with a nut.
- Page 4 [30° mode] 30° Mode bracket Mode bracket 30° T-bracket Hex head bolt M8 x 20 with spring and plain washers (accessory) Tightening torque: 8 N·m [45° mode] 45° Mode bracket Mode bracket 45° T-bracket Hex head bolt M8 x 20 with spring and plain washers (accessory) Tightening torque: 8 N·m [60°...
- Page 5 MT-200 Step 3. (When mounting the MT-200 Matching transformer) Matching transformer Mount the MT-200 to the mode bracket. Use the supplied bolts and nuts to mount, as Hex head bolt M8 x 15 with shown in the figure at right. spring and plain washers (MT-200's accessory) For MT-200 wiring, refer to the instruction manuals supplied with the MT-200 and the Tightening torque: HX-7 Series speaker.
- Page 6 Step 5. Mount the Bottom bracket to the speaker system. Secure the bracket temporarily using the supplied bolts and flange nuts, then insert the J-spacer. Rear bracket J-spacer (accessory) Hex head bolt M6 x 30 with spring Flange nut for M6 and plain washers (accessory) (accessory) Bottom bracket Tightening torque in Step 10: 5 N·m HX-7B-WP or HX-7W-WP Step 6.
- Page 7 Step 7. Temporarily fix the speaker to the Wall bracket. Be sure at least two people are employed to mount the speaker wArNINg to the wall. If handled by only one person, the speaker could fall, potentially resulting in personal injury. 7-1. Insert 2 bolts lightly fastening the L- and Mode brackets into the Wall bracket’s uppermost slots from above.
- Page 8 7. SpecIFIcATIONS Model No. HY-MS7B-WP HY-MS7W-WP Finish Stainless steel, black, semi-gloss, Stainless steel, white, semi-gloss, paint paint Weight 7 kg (15.43 lb) Product Composition T-bracket ... 1, Mode bracket (L and R)* ... 1 each, L-bracket (L and R)* ... 1 each, Wall bracket ... 1, Bottom bracket ... 1 * The bracket L and R are symmetrical to each other. Note: The design and specifications are subject to change without notice for improvement. • Accessories Hex head bolt M6 x 12 with spring and plain washers ..... 2 Hex head bolt M6 x 30 with spring and plain washers ..... 2 Hex head bolt M8 x 20 with spring and plain washers ..... 4 Hex head bolt M10 x 30 with spring and plain washers ..10 Flange nut for M6 ..............2 Nut for M8 .................
