Low Frequency Loudspeaker
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.

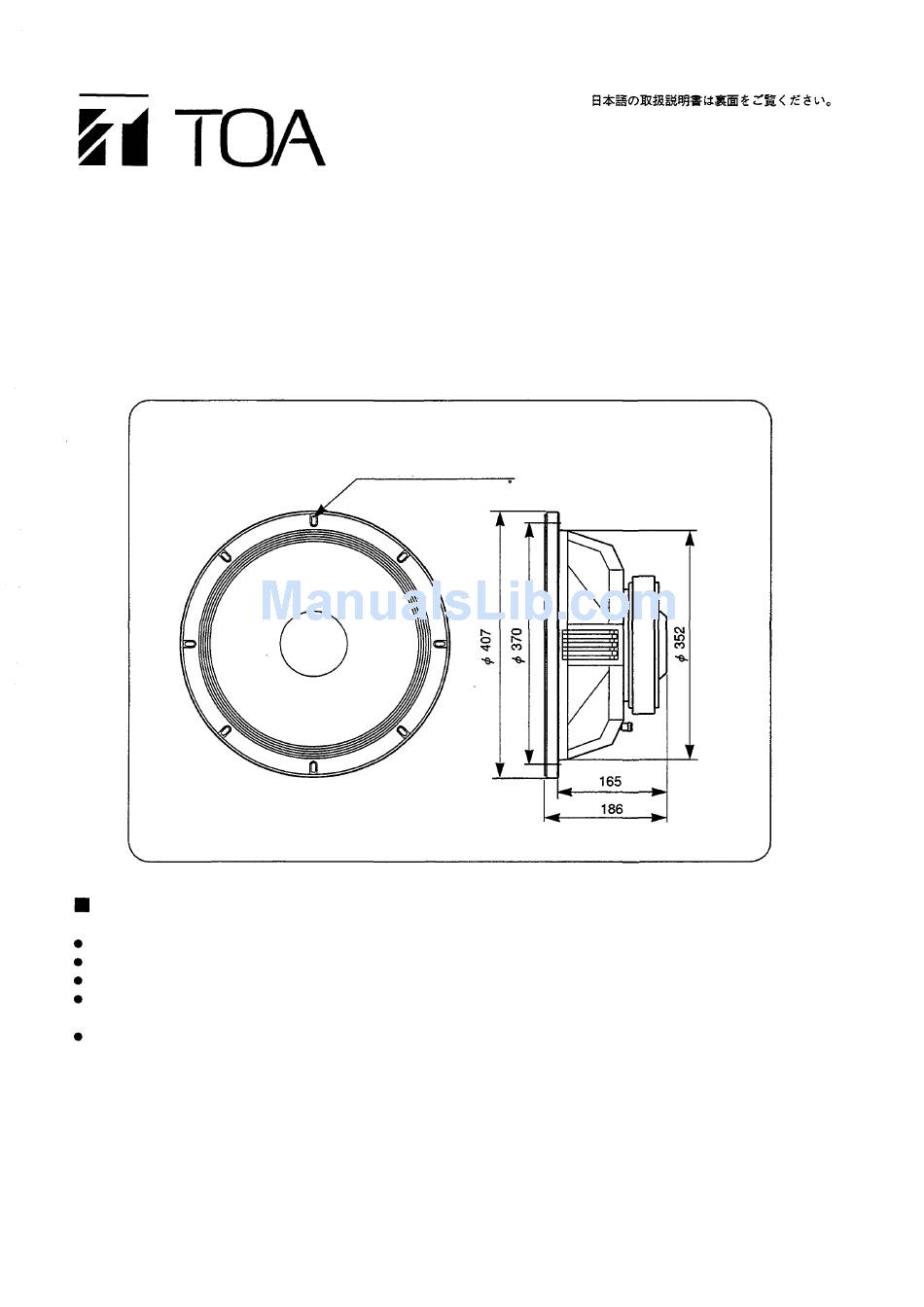

APPEARANCE
FEATURES
High sound quality, high efficiency, high durability, and low distortion.
Magnetic circuit employing a large, 200 mm diameter ferrite magnet reproduces powerful low frequencies.
Ultra linearity in super low frequencies assures the cone displacement limit of 40 mm (peak-to-peak).
The bobbin and the voice coil are designed with emphasis on the heat radiation and mechanical strength, achieving high
power handling capacity (500 W).
Linear displacement characteristics thanks to high damping materials incorporated in the edge and resin-reinforced
cone.
HLS38UL2-8, HLS38UL216
7x15(8 places)
8 equally spaced at 45
TOA Corporation
unit : mm
Advertisement
Related Manuals for Toa HLS38UL2-8
Summary of Contents for Toa HLS38UL2-8
- Page 1 The bobbin and the voice coil are designed with emphasis on the heat radiation and mechanical strength, achieving high power handling capacity (500 W). Linear displacement characteristics thanks to high damping materials incorporated in the edge and resin-reinforced cone. HLS38UL2-8, HLS38UL216 7x15(8 places) 8 equally spaced at 45 TOA Corporation...
-
Page 2: Specifications
Voice Coil Material : Edgewound copper ribbon Voice Coil Winding Depth : 25 mm Top-plate Thickness : 10 mm Bl Factor HLS38UL2-8 : 21.1 N/A HLS38UL216 : 27.3 N/A Effective Moving Mass : 0.090 kg Flux Density : 16,000 gauss Polarity : Positive voltage on plus (RED) terminal generates the positive sound pressure. -
