Summary of Contents for Sharp QW-GS52I452X-FR

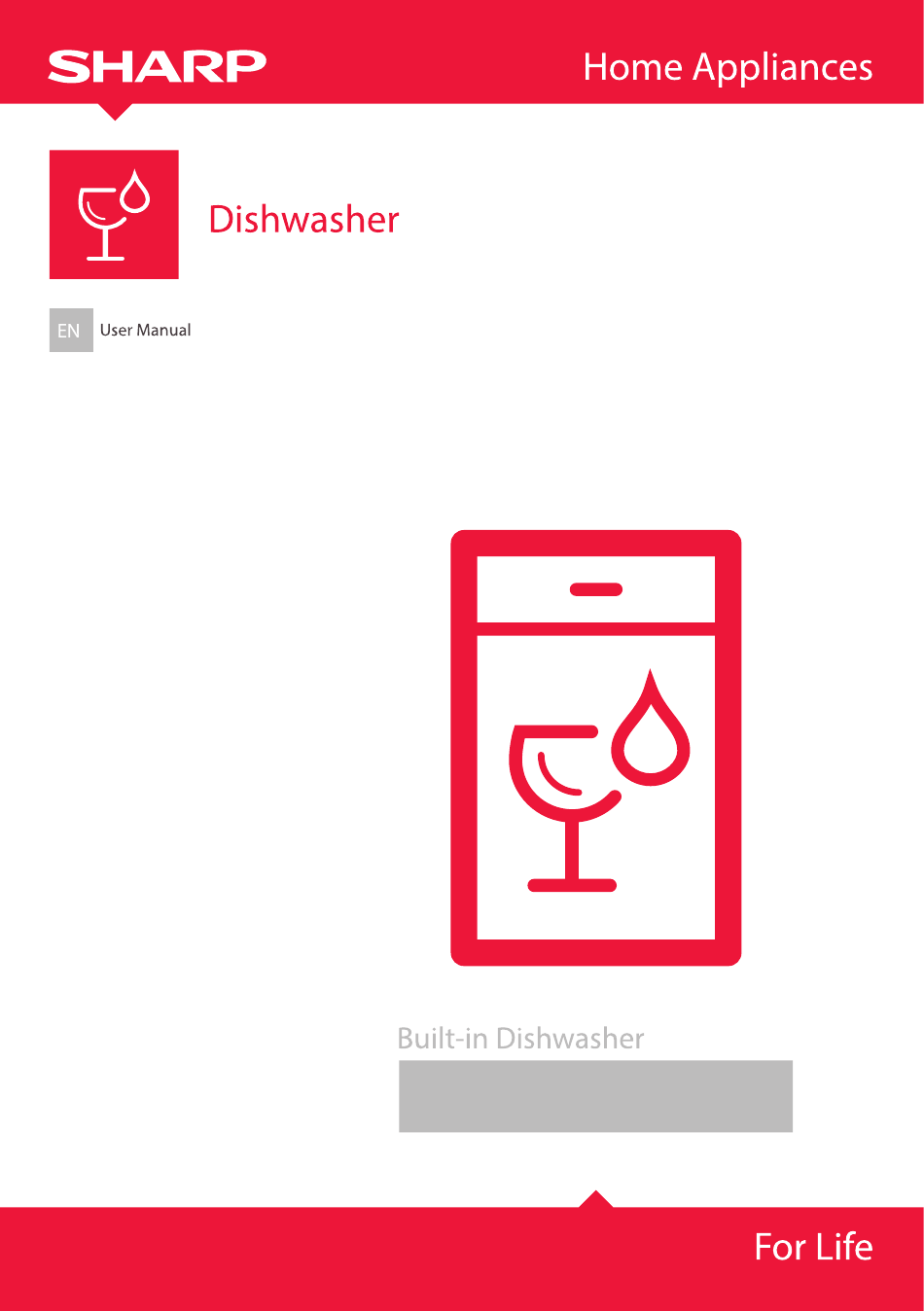

- Page 1 QW-GS52I452X-FR...
- Page 3 CONTENTS CHAPTER-1: EXPLANATION OF PRODUCT Technical specifications Conformity with the standards and test data CHAPTER-2: SAFETY INFORMATION AND RECOMMENDATIONS Recycling Safety information Recommendations Items not suitable for dishwashing CHAPTER-3: INSTALLING THE MACHINE Positioning the machine Water connections Water inlet hose Water outlet hose Electrical connection Prior to using the machine...
- Page 4 CHAPTER -1: EXPLANATION OF PRODUCT 1. Upper basket with racks 7. Control Panel 2. Upper spray arm 8. Detergent and rinse-aid dispenser 3. Lower basket 9. Salt dispenser 4. Lower spray arm 10. Upper basket track latch 5. Filters 11. Upper Cutlery Basket 6.
- Page 5 CHAPTER -1: TECHNICAL SPECIFICATIONS Technical specifications Capacity 10 place settings Height 820 mm - 870 mm Width 450 mm Depth 550 mm Net Weight 32 kg Electricity input 220-240 V, 50 Hz Total Power 1900 W Heating Power 1800 W Pump Power 100 W Drain Pump Power...
- Page 6 CHAPTER -2: SAFETY INFORMATION AND RECOMMENDATIONS Recycling • The recyclable materials are used in certain components and packaging. • Plastic parts are marked with international abbreviations: (>PE< , >PS< , >POM<, >PP<, ) • Cardboard parts have been produced from recycled paper which should be disposed of into waste paper collection containers for recycling.
- Page 7 • Place knives and other sharp-ended objects in the cutlery basket in bladedown position. • If the supply cord is damaged, it must be replaced by SHARP, or its service agent. • If EnergySave option is selected as “Yes”, the door will be opened at the end of the program.
- Page 8 CHAPTER -2: SAFETY INFORMATION AND RECOMMENDATIONS Recommendations • For energy and water saving, remove coarse residues on your dishes before placing the dishes into the machine. Start your machine after having fully loaded it. • Use the pre-wash programme only when necessary. •...
- Page 9 CHAPTER -3: INSTALLING THE MACHINE If the door of machine does not close properly, check if the machine is stable on the floor if not, adjust the feet and ensure its stable position. Water connection Indoor plumbing must be suitable for installing a dishwasher. Also, we recommend that you fit a filter at the entrance of your property so as to avoid any damage to your machine because of contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing,...
- Page 10 CHAPTER -3: INSTALLING THE MACHINE Warning: When a drain hose longer than 4 m is used, the dishes might remain dirty. In that case, SHARP will not accept responsibility. Electrical connection The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current.
- Page 11 CHAPTER -4: PREPARING THE MACHINE FOR USE Prior to using the machine for the first time • Check whether the electricity and supply water specifications match the values indicated by the installation instructions for the machine. • Remove all packaging materials inside the machine. •...
- Page 12 CHAPTER -4: PREPARING THE MACHINE FOR USE Adjusting salt consumption Water German French British Hardness Level Indicator hardness hardness hardness hardness level level dH level dF level dE L1 is seen on display. 6-11 10-20 7-14 L2 is seen on display. 12-17 21-30 15-21...
- Page 13 CHAPTER -4: PREPARING THE MACHINE FOR USE Combined detergents Combined detergents may include various properties. Before using the detergent, read the instructions carefully. Generally combined detergents produce sufficent results under certain conditions only. Points to consider when using this type of products: •...
- Page 14 The upper basket is for thin and narrow items. You are recommended to use the cutlery basket in order to obtain the best result. To avoid any possible injuries, place long-handle and sharp-pointed knives with their sharp points facing down or horizontally on the baskets.
- Page 15 CHAPTER-5: LOADING YOUR DISHWASHER Lower Basket Folding Racks Folding racks consisting of two parts that are located on the lower basket of your machine are designed in order to let you place big items easier such as pots, pans, etc. If requested, each part can be folded separately, or all of them can be folded and larger spaces can be obtained.
- Page 16 Because it can easily be taken out of the machine, it allows your dishes to be taken out of the machine along with the basket after washing. Warning: Knives and other sharp objects must be placed horizontally in the cutlery basket. EN-16...
- Page 17 CHAPTER-5: LOADING YOUR DISHWASHER Alternative basket loads Lower Basket Top basket EN-17...
- Page 18 CHAPTER-5: LOADING YOUR DISHWASHER Faulty loads ñ Important Note for Test Laboratories For detailed information on performance tests, please contact following address: “dishwasher@standardtest.info” . In your email, please provide the model name and serial number (20 digits) which you can find on the appliance door. EN-18...
- Page 19 CHAPTER -6: PROGRAMME DESCRIPTIONS Programme items Programme No • v Programme Quickwash - (P1) Quick 30’ names and 40°C (P2) (reference) (P3) temperatures Type of food Pre-wash Coffee, milk, Coffee, milk, tea, cold waste to rinse and tea, cold meats, meats, vegetables , loosen residue vegetables, not...
- Page 20 CHAPTER -6: PROGRAMME DESCRIPTIONS Programme items Programme Programme Express 50’ Hygiene 60°C (P6) Autu Delicate Auto Normal Auto intensive names and 65°C ( P5) 30-50°C 50-60°C 60-70°C temperatures Type of food Soups, sauces, Dishes with Old soup,sauces pastries egg,rice waste pasta, eggs, dense dirt waiting potato and fried foods...
- Page 21 CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME 1.) Power On/Off Touch Button After the Power On/Off touch button is pressed, two dashes appear in the program display, until touching any button. Touch the ‘’On/Off touch button’’ with your fingertip for 1 sec to turn the machine on or off.
- Page 22 CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Note: When a program that is incompatible with the extra silent & fast option is selected, when the button is pressed a buzzer sound is heard which indicates that the selected option is not available. 7.) Tablet Detergent Touch Button ( 3 in 1 button ) Press the Tablet detergent touch button when you use combined detergents that include salt and rinse aid.
- Page 23 CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Cancelling and resetting a program To cancel a program currently in progress or in a standby position. 1- Open the door of the machine. The last selected program will appear on the display (3). 2- Press and hold the program touch button (2) for 3 seconds.
- Page 24 CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Buzzer sound set up Setting up the buzzer. 1- Press the power On/Off touch button”.(1) (if it is in OFF position). 2- Press and hold the “Tablet” (7) and “Half load ” (6) touch buttons for 3 seconds at the same time to set the volume level.
- Page 25 CHAPTER -8: MAINTENANCE AND CLEANING Cleaning the machine regularly prolongs the machine’s service life. Oil and limescale may accumulate in the machine’s washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, run the machine at high temperature.
- Page 26 If the lamps “Wash/Dry” and “End” keep flashing • The water overflow alarm is active • Turn off your tap and contact the Sharp helpdesk. If the control lamps won’t go out after a wash operation Check if the Power On/Off button is released.
- Page 27 CHAPTER -10: PRACTICAL AND USEFUL INFORMATION If there are whitish stains on the dishes • insufficient detergent is being used • Rinse aid dosage setting at a very low level. • No special salt is being used despite the high degree of water hardness. •...
- Page 28 DISPOSAL OF YOUR OLD MACHINE This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to waste collection places recycling electrical and electronic equipment. You will help avoid damage to the environment and risks to public health. Recycling materials will help natural resources to be preserved.
- Page 29 Register your product here WWW.SHARPHOMEAPPLIANCES.COM, by registering with Sharp you become part of our For Life promise to always be there for you and your appliance. %100 recycleable paper 52248253 R36 EN-29...
