Sharp QW-GT45F444W-DE User Manual

Fullsize dishwasher.
Hide thumbs

Advertisement

QW-GT45F444I-DE
QW-GT45F444W-DE

Advertisement

Table of Contents

   Related Manuals for Sharp QW-GT45F444W-DE

   Summary of Contents for Sharp QW-GT45F444W-DE

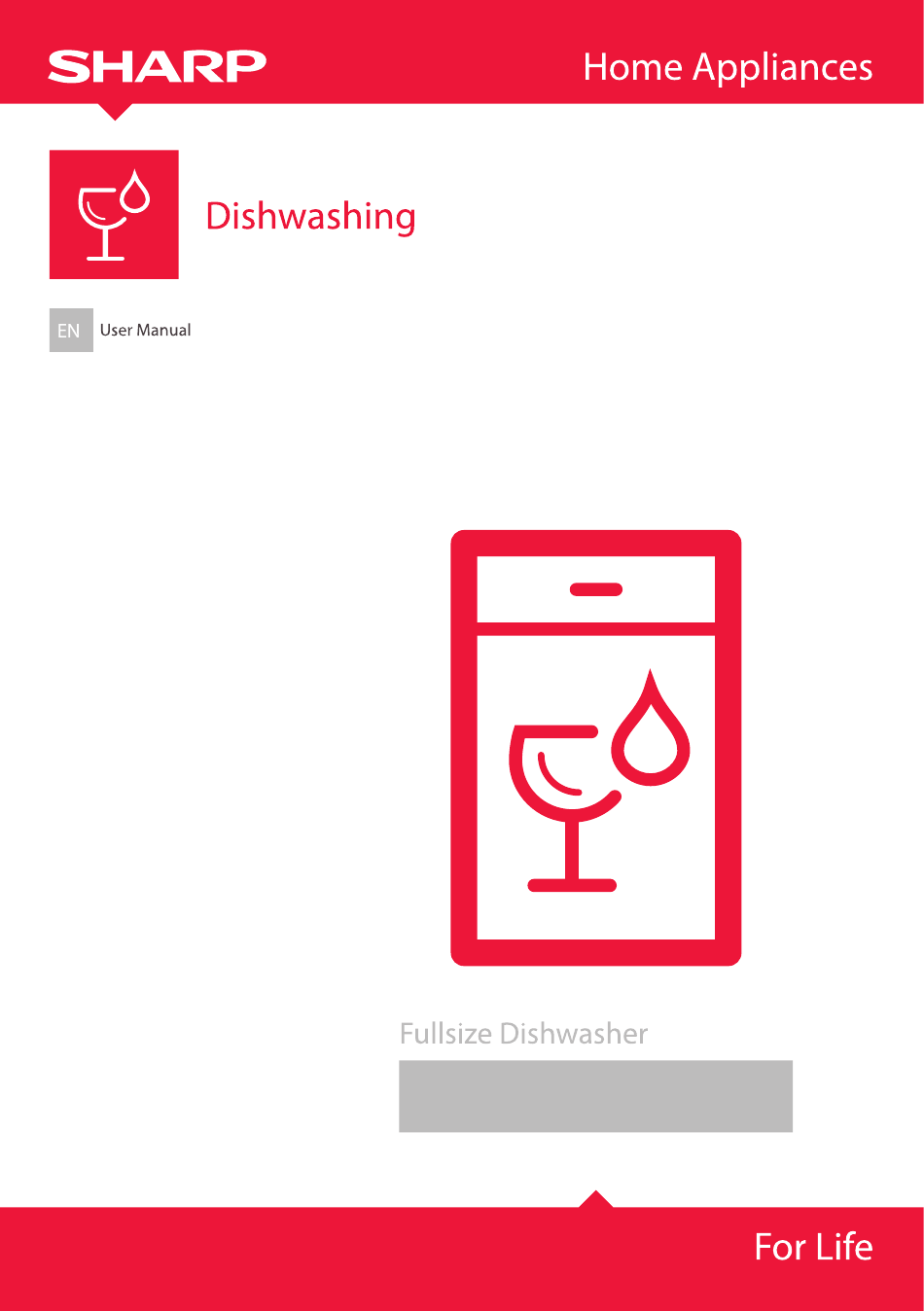

  • Page 1 QW-GT45F444I-DE QW-GT45F444W-DE...
  • Page 3: Table Of Contents

    CONTENTS CHAPTER-1: EXPLANATION OF PRODUCT Technical specifications Conformity with the standards and test data CHAPTER-2: SAFETY INFORMATION AND RECOMMENDATIONS Recycling Safety information Recommendations Items not suitable for dishwashing CHAPTER-3: INSTALLING THE MACHINE Positioning the machine Water connections Water inlet hose Water outlet hose Electrical connection Fitting the machine undercounter...
  • Page 4: Chapter-1: Explanation Of Product

    CHAPTER -1: EXPLANATION OF PRODUCT 1. Worktop 7. Rating plate 2. Upper basket with racks 8. Control Panel 3. Upper spray arm 9. Detergent and rinse-aid dispenser 4. Lower basket 10. Salt dispenser 5. Lower spray arm 11. Upper basket track latch 6.
  • Page 5: Technical Specifications

    CHAPTER -1: TECHNICAL SPECIFICATIONS Technical specifications Capacity 14 place settings Height 850 mm Height (without worktop) 820 mm Width 598 mm Depth 598 mm Net Weight 62 kg Electricity input 220-240 V, 50 Hz Total Power 1900 W Heating Power 1800 W Pump Power 100 W...
  • Page 6: Chapter-2: Safety Information And Recommendations

    CHAPTER -2: SAFETY INFORMATION AND RECOMMENDATIONS Recycling • The recyclable materials are used in certain components and packaging. • Plastic parts are marked with international abbreviations: (>PE< , >PS< , >POM<, >PP<, ) • Cardboard parts have been produced from recycled paper which should be disposed of into waste paper collection containers for recycling.
  • Page 7 • Place knives and other sharp-ended objects in the cutlery basket in bladedown position. • If the supply cord is damaged, it must be replaced by SHARP, or its service agent. • If EnergySave option is selected as “Yes”, the door will be opened at the end of the program.
  • Page 8: Recommendations

    CHAPTER -2: SAFETY INFORMATION AND RECOMMENDATIONS Recommendations • For energy and water saving, remove coarse residues on your dishes before placing the dishes into the machine. Start your machine after having fully loaded it. • Use the pre-wash programme only when necessary. •...
  • Page 9: Water Connections

    CHAPTER -3: INSTALLING THE MACHINE If the door of machine does not close properly, check if the machine is stable on the floor if not, adjust the feet and ensure its stable position. Water connection Indoor plumbing must be suitable for installing a dishwasher. Also, we recommend that you fit a filter at the entrance of your property so as to avoid any damage to your machine because of contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing,...
  • Page 10: Electrical Connection

    CHAPTER -3: INSTALLING THE MACHINE Warning: When a drain hose longer than 4 m is used, the dishes might remain dirty. In that case, SHARP will not accept responsibility. Electrical connection The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current.
  • Page 11: Fitting The Machine Undercounter

    CHAPTER -3: INSTALLING THE MACHINE Fitting the machine undercounter If you wish to fit your machine undercounter, check whether you have sufficient space under your countertop and whether the wiring-plumbing is suitable to do so.1 If you decide that the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration.
  • Page 12 CHAPTER -3: INSTALLING THE MACHINE Adjust the machines’ feet according to the slope of the floor.3 Fit your machine by pushing it undercounter without letting the hoses get crushed or bent.4 Product Without Insulation With Insulation All Product For 2nd Basket For 3rd Basket Height 820 mm...
  • Page 13: Chapter-4: Preparing The Machine For Use

    CHAPTER -4: PREPARING THE MACHINE FOR USE Prior to using the machine for the first time • Check whether the electricity and supply water specifications match the values indicated by the installation instructions for the machine. • Remove all packaging materials inside the machine. •...
  • Page 14: Adjusting Salt Consumption

    CHAPTER -4: PREPARING THE MACHINE FOR USE Adjusting salt consumption Water German French British Hardness Level Indicator hardness hardness hardness hardness level level dH level dF level dE L1 is seen on display. 6-11 10-20 7-14 L2 is seen on display. 12-17 21-30 15-21...
  • Page 15: Filling The Detergent Compartment

    CHAPTER -4: PREPARING THE MACHINE FOR USE Combined detergents Combined detergents may include various properties. Before using the detergent, read the instructions carefully. Generally combined detergents produce suficent results under certain conditions only. Points to consider when using this type of products: •...
  • Page 16: Dish Rack

    The upper basket is for thin and narrow items. You are recommended to use the cutlery grid in order to obtain the best result. To avoid any possible injuries, long-handle and sharp-pointed dishes with their sharp points facing down or horizontally on the baskets.
  • Page 17 The Upper Cutlery Basket is composed of two pieces; if you need to make space for the dishes in the upper bas- ket, you can take out the left or right part of the upper cutlery basket in order to obtain more space. Warning: Knives and other sharp objects must be placed horizontally in the cutlery basket. EN-17...
  • Page 18: Alternative Basket Loads

    CHAPTER-5: LOADING YOUR DISHWASHER Alternative basket loads Lower Basket Top basket Faulty loads Important Note for Test Laboratories For detailed information on performance tests, please contact following address: “dishwasher@standardtest.info” . In your email, please provide the model name and serial number (20 digits) which you can find on the appliance door.
  • Page 19: Chapter -6: Programme Descriptions

    CHAPTER -6: PROGRAMME DESCRIPTIONS Programme items Programme Name of Pre-washing * *Jet Wash 14’ Quick 30’ Eco** Express 50’ . Programme Washing 35° C 40° C 50° C 65° C Temperature Type of Food Fresh less dirty, Less dirty, coffee, Fresh coffee, Fresh Tarried soup,...
  • Page 20 CHAPTER -6: PROGRAMME DESCRIPTIONS Programme items Programme Name of Eco 5.4 l Dual Wash 65° C Auto30° Auto 50°C Steam Wash Programme C - 50° C - 60° C 65°C Washing 60° C 65° C 30-50° C 50-60° C 65°C Temperature Type of Food Fresh coffee,...
  • Page 21: Chapter -7: Switching On The Machine And Selecting A Programme

    CHAPTER -6: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Selection of programme and Starting of the Machine 11 12 13 14 9 10 15 16 17 1- On/Off 16- Rinse Aid Level Warning Indicator 2- Door Handle 17- Child Lock Indicator 3- Confirmation Button 18- Delay Indicator 4- Option Button...
  • Page 22 CHAPTER -6: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME BUTTONS Power On/Off Button (1) When you press the on/off button, the machine is turned on and the display shows the last used programme; in the off position, the LEDs on the display are off. Door Handle (2) Please use the door handle to open-close the door of your machine.
  • Page 23: Programme Selection Of Programme And Starting Of The Machine

    CHAPTER -6: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Programme Selection of programme and Starting of the Machine 1- Press Power On/Off switch. Please note: Select your washing programme appropriate for your dishes with the help of the programme items page in the user guide.
  • Page 24: Programme Follow-up

    CHAPTER -6: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Programme Follow-up You can follow the progress by the help of the programme follow-up symbols on the display.( 22 - a,b,c,d). As the washing proceeds, the Washing and Drying symbols will be illuminated respectively . When the drying symbol is on, the machine will remain silent for about 40-50 minutes.
  • Page 25 CHAPTER -6: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Adding Additional Functions to the Programme You may change the programme according to your preferences by adding additional functions to the washing programme. The washing programmes have been designed so as to obtain the best cleaning considering the type of soil, amount of soil and properties of the washing materials.
  • Page 26: In Order To Add Additional Functions To The Programme

    CHAPTER -6: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME In order to add additional functions to the programme; 1- Select the appropriate washing programme for your dishes using the up/down buttons(7, 8) after pressing the option button. 2- Enter the additional functions menu (4) by pressing the option button. After selecting the additional function using up/down buttons (7, 8), illuminate the additional function indicators (9-10-11-12-13-14) by pressing the confirmation button.
  • Page 27 CHAPTER -6: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Settings Menu In order to enter the Settings Menu, hold the option and delay buttons for 3 seconds. The display will show (“Keep Pressing ..X”) to let you know for how many more seconds you have to hold the button. When this number reaches zero, you will see the Menu settings on the display.
  • Page 28 CHAPTER -6: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Child Lock: You may prevent others from modifying your settings while the machine is in operation. After starting the programme, press the up selection button (7) and down selection button (8) at the same time for 3 seconds. This screen will inform you as to for how many seconds you need to hold the buttons by “Keep Pressing..X”.
  • Page 29 CHAPTER -6: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME When above warning is seen; 1- Make sure that the water is not cut 2- Make sure that the hydrant is open 3- If both are true, call a qualified technician. Whenever an error which you cannot fix occurs, the above warning will be displayed.
  • Page 30: Chapter-8: Maintenance And Cleaning

    CHAPTER -8: MAINTENANCE AND CLEANING Cleaning the machine regularly prolongs the machine’s service life. Oil and limescale may accumulate in the machine’s washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, run the machine at high temperature.
  • Page 31: Chapter-9: Failure Codes And What To Do İn Case Of Failure

    If the lamps “Wash/Dry” and “End” keep flashing • The water overflow alarm is active • Turn off your tap and contact the Sharp help desk. If the control lamps won’t go out after a wash operation Check if the Power On/Off button is released.
  • Page 32: Chapter-10: Practical And Useful Information

    CHAPTER -10: PRACTICAL AND USEFUL INFORMATION If there are whitish stains on the dishes • insufficient detergent is being used • Rinse aid dosage setting at a very low level. • No special salt is being used despite the high degree of water hardness. •...
  • Page 33 DISPOSAL OF YOUR OLD MACHINE This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to waste collection places recycling electrical and electronic equipment. You will help avoid damage to the environment and risks to public health. Recycling materials will help natural resources to be preserved.
  • Page 34 Register your product here WWW.SHARPHOMEAPPLIANCES.COM, by registering with Sharp you become part of our For Life promise to always be there for you and your appliance. %100 recycleable paper 52252609 R35 EN-34...
