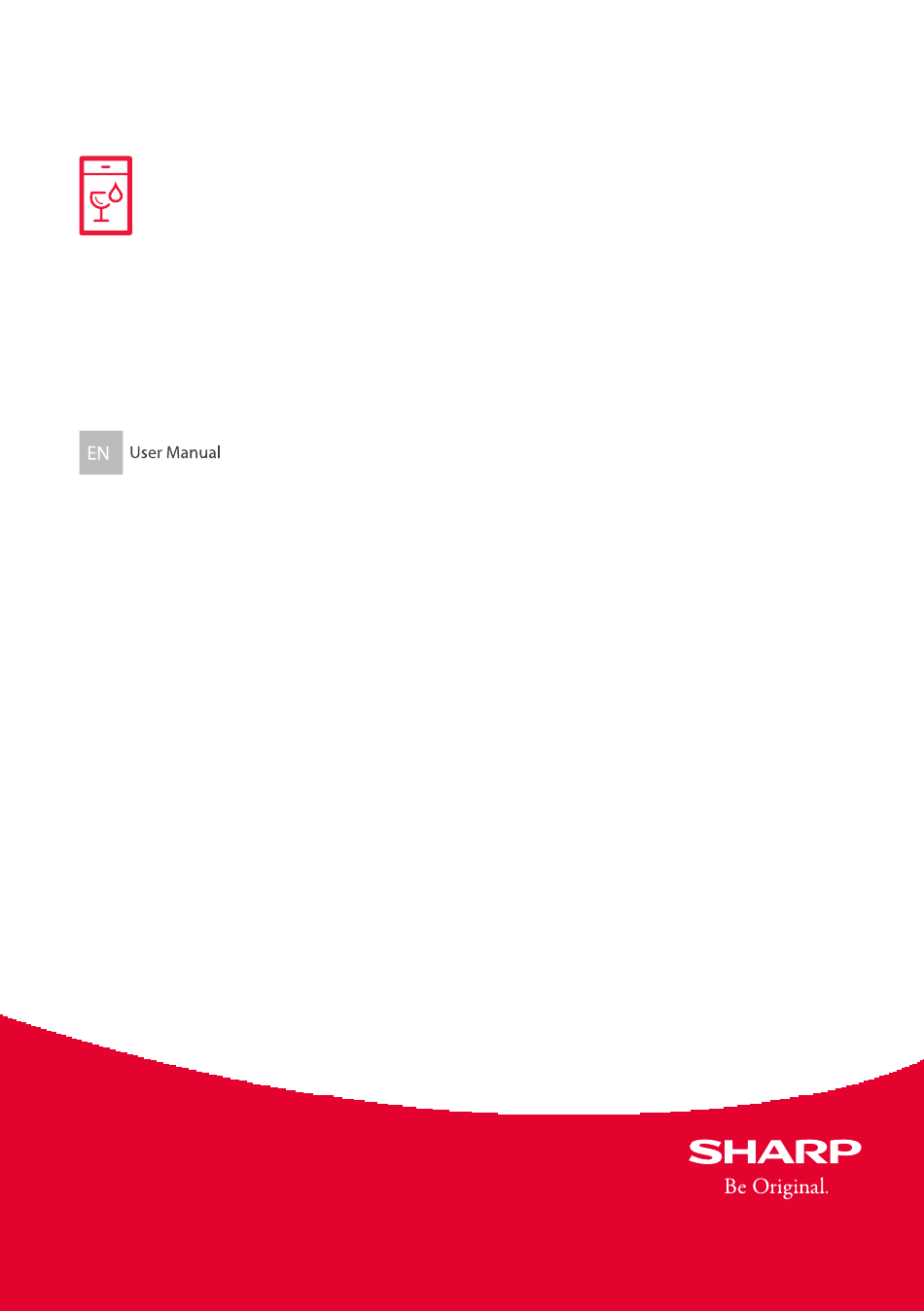

- Page 1 Home Appliances QW-GD52I472X-EN Dishwasher EN-1...
- Page 3 CONTENTS CHAPTER-1: EXPLANATION OF PRODUCT Technical specifications Conformity with the standards and Test data CHAPTER-2: SAFETY INFORMATION AND RECOMMENDATIONS Recycling Safety information Recommendations Items not suitable for dishwashing CHAPTER-3: INSTALLING THE MACHINE Positioning the machine Water connections Water inlet hose Water outlet hose Electrical connection Prior to using the machine...
- Page 4 CHAPTER -1: EXPLANATION OF PRODUCT 1. Upper basket with racks 7. Control panel 2. Upper spray arm 8. Detergent and rinse- 3. Lower basket aid dispenser 4. Lower spray arm 9. Salt dispenser 5. Filters 10. Upper basket track latch 6.
- Page 5 CHAPTER -1: TECHNICAL SPECIFICATIONS Technical specifications Capacity 15 place settings Height 820 mm - 870 mm Width 598 mm Depth 550 mm Net Weight 38 kg Electricity input 220-240 V, 50 Hz Total Power 1900 W Heating Power 1800 W Pump Power 100 W Drain Pump Power...
- Page 6 CHAPTER -2: SAFETY INFORMATION AND RECOMMENDATIONS SAFETY INFORMATION AND RECOMMENDATIONS Recycling • The recyclable materials are used in certain components and packaging. • Plastic parts are marked with international abbreviations: (>PE< , >PS< , >POM<, >PP<, ) • Cardboard parts have been produced from recycled paper which should be disposed of into waste paper collection containers for recycling.
- Page 7 • Do not leave the door open, to avoid accidents. • Place knives and other sharp-ended objects in the cutlery basket in blade- down position. • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or competent technican in order to prevent a hazard.
- Page 8 CHAPTER -3: INSTALLING THE MACHINE Recommendations • For energy and water saving, remove coarse residues on your dishes before placing the dishes into the machine. Start your machine after having fully loaded it. • Use the pre-wash programme only whenever necessary. •...
- Page 9 CHAPTER -3: INSTALLING THE MACHINE If the door of the machine does not close properly, check if the machine is stable on the floor on which it stands; if not, adjust the feet and ensure its stable position. Water connection İndoor plumbing must be suitable for installing a dishwasher.
- Page 10 CHAPTER -3: INSTALLING THE MACHINE Warning: When a drain hose longer than 4 m is used, the dishes may remain dirty. In such a case, our company will not accept liability. Electrical connection The grounded plug of your machine should be connected to an grounded outlet supplied by a suitable voltage and current.
- Page 11 CHAPTER -4: PREPARING THE MACHINE FOR USE Prior to using the machine for the first time • Check whether the electricity and supply water specifications match the values indicated by the installation instructions for the machine. • Remove all packaging materials inside the machine. •...
- Page 12 CHAPTER -4: PREPARING THE MACHINE FOR USE Adjusting salt consumption Water German French British Hardness Level Indicator hardness hardness hardness hardness level level dH level dF level dE L1 is seen on display. 6-11 10-20 7-14 L2 is seen on display. 12-17 21-30 15-21...
- Page 13 CHAPTER -4: PREPARING THE MACHINE FOR USE Combined detergents Combined detergents may include various properties in them. Before using a detergent, please read and follow the instructions well. Generally, combined detergents produce sufficient results only under certain conditions. Points to consider when using these types of products: •...
- Page 14 The upper basket is for thin and narrow items. You are recommended to use the cutlery grid in order to obtain the best result. To avoid any possible injuries, place long-handle and sharp-pointed knives with their sharp points facing down or horizontally on the baskets.
- Page 15 The Upper Cutlery Basket is composed of two pieces; if you need to make space for the dishes in the upper bas- ket, you can take out the left or right part of the upper cutlery basket in order to obtain more space. Warning: Knives and other sharp objects must be placed horizontally in the cutlery basket. EN-15...
- Page 16 CHAPTER-5: LOADING YOUR DISHWASHER Alternative basket loads Lower Basket Top basket Incorrrect loads Important Note for Test Laboratories For detailed information on performance tests, please contact following address: “dishwasher@standardtest.info” . In your email, please provide the model name and serial number (20 digits) which you can find on the appliance door.
- Page 17 CHAPTER -6: PROGRAMME DESCRIPTIONS Programme items Programme No • v Programme Quickwash- Quick 30’ 40°C names and (P1) (P2) (reference) (P3) temperatures Type of food Pre-wash Coffee, milk, Coffee, milk, tea, cold waste to rinse and tea, cold meats, meats, vegetables , loosen residue vegetables, not not kept for long...
- Page 18 CHAPTER -6: PROGRAMME DESCRIPTIONS Programme items Programme Programme Express 50’ Hygiene 60°C (P6) Autu Delicate Auto Normal Auto intensive names and 65°C ( P5) 30-50°C 50-60°C 60-70°C temperatures Type of food Soups, sauces, Dishes with Old soup,sauces pastries egg,rice waste pasta, eggs, dense dirt waiting potato and fried foods...
- Page 19 CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME 1.) Power On/Off Touch Button After the Power On/Off touch is pressed, two dashes appear in the program display, until touching any button. Touch the ‘’On/Off touch button’’ with your fingertip for 1 sec to turn the machine on or off.
- Page 20 CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Note: When a program that is incompatible with the extra silent & fast option is selected, when the button is pressed a buzzer sound is heard which indicates that the selected option is not available. 7.) Tablet Detergent Touch Button ( 3 in 1 button ) Press the Tablet detergent touch button when you use combined detergents that include salt and rinse aid.
- Page 21 CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Cancelling and resetting a program To cancel a program currently in progress or in a standby position. 1- Open the door of the machine. The last selected program will appear on the display (3). 2- Press and hold the program touch button (2) for 3 seconds.
- Page 22 CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Buzzer sound set up Setting up the buzzer. 1- Press the power On/Off touch button”.(1) (if it is in OFF position). 2- Press and hold the “Delay ” (4) and “Half load ” (6) touch buttons for 3 seconds at the same time to set the volume level.
- Page 23 CHAPTER -8: MAINTENANCE AND CLEANING Cleaning the machine in regular intervals prolongs the machines service life. Oil and lime may accumulate in the machines washing section. In the event of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, run the machine at high temperature.
- Page 24 CHAPTER -9: FAILURE CODES AND WHAT TO DO IN CASE OF FAILURE ERROR ERROR CONTROL CODE DESCRIPTION • Make sure the water input tap is totally open and that there is no water cut. Inadequate water • Close the water input tap, separate the water input hose from the supply tap and clean the filter at the connection end of the hose.
- Page 25 CHAPTER -10: PRACTICAL AND USEFUL INFORMATION If there are whitish stains on the dishes • insufficient detergent is being used • Rinse aid dosage setting at a very low level. • No special salt is being used despite the high degree of water hardness. •...
- Page 26 DISPOSAL OF YOUR OLD MACHINE This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste collection places recycling electrical and electronic equipment. You will contribute to avoid potential negative results regarding environment and human health.
- Page 27 Service & Support Visit Our Website sharphomeappliances.com EN-27 52253825 R35...
