Summary of Contents for Sharp QW-GD53I443X-DE
-
Page 3: Table Of Contents
CONTENTS CHAPTER-1: EXPLANATION OF PRODUCT Technical specifications Conformity with the standards and test data CHAPTER-2: SAFETY INFORMATION AND RECOMMENDATIONS Recycling Safety information Recommendations Items not suitable for dishwashing CHAPTER-3: INSTALLING THE MACHINE Positioning the machine Water connections Water inlet hose Water outlet hose Electrical connection Prior to using the machine... -
Page 4: Chapter-1: Explanation Of Product

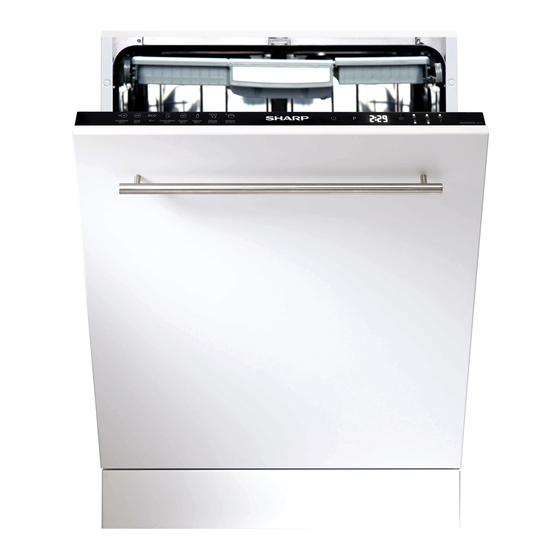

CHAPTER -1: EXPLANATION OF PRODUCT 7. Control Panel 1. Upper basket with racks 8. Detergent and rinse- 2. Upper spray arm aid dispenser 3. Lower basket 9. Salt dispenser 4. Lower spray arm 10. Upper basket track latch 5. Filters 11. -
Page 5: Technical Specifications
CHAPTER -1: TECHNICAL SPECIFICATIONS Technical specifications Capacity 15 place settings Height 820 mm - 870 mm Width 598 mm Depth 550 mm Net Weight 38 kg Electricity input 220-240 V, 50 Hz Total Power 1900 W Heating Power 1800 W Pump Power 100 W Drain Pump Power... -
Page 6: Chapter-2: Safety Information And Recommendations
CHAPTER -2: SAFETY INFORMATION AND RECOMMENDATIONS Recycling • Recyclable materials are used in certain components and packaging. • Plastic parts are marked with international abbreviations: (>PE< , >PS< , >POM<, >PP<, ) • Cardboard parts have been produced from recycled paper which should be disposed of into waste paper collection containers for recycling. - Page 7 • Place knives and other sharp-ended objects in the cutlery basket in blade- down position. • If the supply cord is damaged, it must be replaced by SHARP, or its service agent. • If EnergySave option is selected as “Yes”, the door will be opened at the end of the program.
-
Page 8: Recommendations
CHAPTER -2: SAFETY INFORMATION AND RECOMMENDATIONS Recommendations • For energy and water saving, remove coarse residues on your dishes before placing the dishes into the machine. Start your machine after having fully loaded it. • Use the pre-wash programme only when necessary. •... -
Page 9: Water Connections
CHAPTER -3: INSTALLING THE MACHINE Water connection Indoor plumbing must be suitable for installing a dishwasher. Also, we recommend that you fit a filter at the entrance of your property so as to avoid any damage to your machine because of contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to prevent such complaints as yellowing and formation of deposits after washing. -
Page 10: Electrical Connection
CHAPTER -3: INSTALLING THE MACHINE Warning: When a drain hose longer than 4 m is used, the dishes might remain dirty. In that case, SHARP will not accept responsibility. Electrical connection The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. -
Page 11: Prior To Using The Machine
CHAPTER -4: PREPARING THE MACHINE FOR USE Prior to using the machine for the first time • Check whether the electricity and supply water specifications match the values indicated by the installation instructions for the machine. • Remove all packaging materials inside the machine. •... -
Page 12: Adjusting Salt Consumption
CHAPTER -4: PREPARING THE MACHINE FOR USE Adjusting salt consumption Water German French British Hardness Level Indicator hardness hardness hardness hardness level level dH level dF level dE L1 is seen on display. 6-11 10-20 7-14 L2 is seen on display. 12-17 21-30 15-21... -
Page 13: Combined Detergent
CHAPTER -4: PREPARING THE MACHINE FOR USE Combined detergents Combined detergents may include various properties. Before using the detergent, read the instructions carefully. Generally combined detergents produce sufficent results under certain conditions only. Points to consider when using this type of products: •... -
Page 14: Chapter-5: Loading Your Dishwasher
To avoid any possible injuries, place long-handle and sharp-pointed knives with their sharp points facing down or horizontally on the baskets. Warning: Place your dishes into your machine in a way that they will not prevent the upper and lower spray arms from spinning. - Page 15 The Upper Cutlery Basket is composed of two pieces; if you need to make space for the dishes in the upper bas- ket, you can take out the left or right part of the upper cutlery basket in order to obtain more space. Warning: Knives and other sharp objects must be placed horizontally in the cutlery basket. EN-15...
-
Page 16: Alternative Basket Loads
CHAPTER-5: LOADING YOUR DISHWASHER Alternative basket loads Lower Basket Top basket Incorrrect loads Important Note for Test Laboratories For detailed information on performance tests, please contact following address: “dishwasher@standardtest.info” . In your email, please provide the model name and serial number (20 digits) which you can find on the appliance door. -
Page 17: Chapter -6: Programme Descriptions
CHAPTER -6: PROGRAMME DESCRIPTIONS Programme items Programme No Programme Prewash (P1) Quick 30’ Dual Wash names and 40°C( P2 ) (reference ) 60°C ( P4) temperatures 50°C ( P3) Type of food Pre-wash Coffee, milk, Coffee, milk, tea, cold Soups, sauces, waste to rinse and tea, cold meats,... - Page 18 CHAPTER -6: PROGRAMME DESCRIPTIONS Programme items Programme Programme Express 50’ Hygiene 60°C (P6) Auto Delicate Auto Intensive names and 65°C ( P5) 30-50°C(P7) 50-70°C(P8) temperatures Type of food Soups, sauces, Dishes with Automatically adjust the washing time with waste pasta, eggs, dense dirt waiting temperature and amount of water by determining pilaf, potato and...
-
Page 19: Chapter -7: Switching On The Machine And Selecting Aprogramme
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME (4) (5) (6) (7) (11) 1.) Power On/Off Touch Button After the Power On/Off touch is pressed, two dashes appear in the program display. Touch the ‘’On/Off touch but- ton’’ with your fingertip for 1 sec to turn the machine on or off. 2.) Program Touch Button Use the Program touch button to select a suitable program for your dishes. -
Page 20: Switching On The Machine
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME 7.) Extra Fast Touch Button This washes the dishes with more pressure, thus shortening the time of the selected program and provides more economical water usage. Note: This option can only be selected at the beginning of the program. 8.) Extra Silent Touch Button Washes the dishes with less pressure, thus provides more sensitive and silent washing. -
Page 21: Changing A Programme
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Changing a programme To change the program while a wash program is going. 1- Open the door and select a new program by pressing the Program touch button (2). 2- After closing the door, the newly selected new program start from the point where the original program reached, but with the new parameters (temperature, cycles) of the new program. - Page 22 CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Compatibility between options Options Half load Tablet Start delay Extra Fast Extra Silent Energy Save Half load Tablet Start delay Extra Fast Extra Silent Energy Save How to change from “ECO MODE” to “NORMAL MODE” for Inner Light option: 1- Open the dishwasher door and press the Power On/Off touch button.
-
Page 23: Chapter-8: Maintenance And Cleaning
CHAPTER -8: MAINTENANCE AND CLEANING Cleaning the machine regularly prolongs the machine’s service life. Oil and limescale may accumulate in the machine’s washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, run the machine at high temperature. -
Page 24: Chapter-9: Failure Codes And What To Do İn Case Of Failure
If the lamps “Wash/Dry” and “End” keep flashing • The water overflow alarm is active • Turn off your tap and contact the Sharp helpdesk. If the control lamps won’t go out after a wash operation Check if the Power On/Off button is released. -
Page 25: Chapter-10: Practical And Useful Information
CHAPTER -10: PRACTICAL AND USEFUL INFORMATION If there are whitish stains on the dishes • insufficient detergent is being used • Rinse aid dosage setting at a very low level. • No special salt is being used despite the high degree of water hardness. •... - Page 26 DISPOSAL OF YOUR OLD MACHINE This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to waste collection places recycling electrical and electronic equipment. You will help avoid damage to the environment and risks to public health. Recycling materials will help natural resources to be preserved.
- Page 27 52180345 R22 EN-27...
