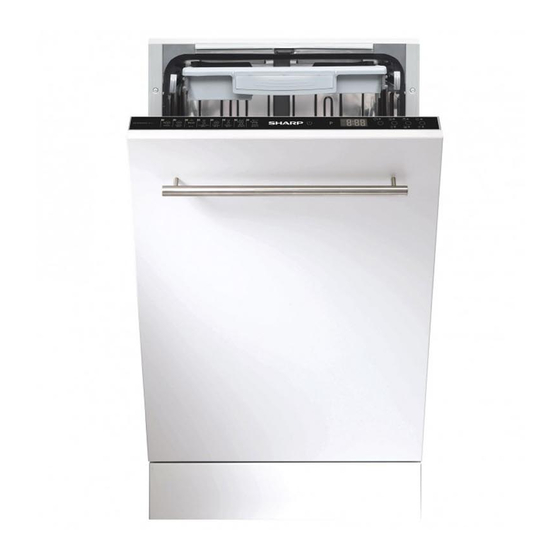

- Page 1 Home Appliances QW-GS53I443X-DE Dishwasher...
-
Page 3: Table Of Contents
CONTENTS CHAPTER-1: EXPLANATION OF PRODUCT Technical specifications Conformity with the standards and test data CHAPTER-2: SAFETY INFORMATION AND RECOMMENDATIONS Recycling Safety information Recommendations Items not suitable for dishwashing CHAPTER-3: INSTALLING THE MACHINE Positioning the machine Water connections Water inlet hose Water outlet hose Electrical connection Prior to using the machine... -
Page 4: Chapter-1: Explanation Of Product
CHAPTER -1: EXPLANATION OF PRODUCT 7. Control panel 1. Upper basket with racks 8. Detergent and rinse 2. Upper spray arm aid dispenser 3. Lower basket 9. Salt dispenser 4. Lower spray arm 10. Upper basket track latch 5. Filters 11. -
Page 5: Technical Specifications
CHAPTER -1: TECHNICAL SPECIFICATIONS Technical specifications Capacity 10 place settings Height 820 mm - 870 mm Width 450 mm Depth 550 mm Net Weight 32 kg Electricity input 220-240 V, 50 Hz Total Power 1900 W Heating Power 1800 W Pump Power 100 W Drain Pump Power... -
Page 6: Chapter-2: Safety Information And Recommendations
CHAPTER -2: SAFETY INFORMATION AND RECOMMENDATIONS SAFETY INFORMATION AND RECOMMENDATIONS Recycling • The recyclable materials are used in certain components and packaging. • Plastic parts are marked with international abbreviations: (>PE< , >PS< , >POM<, >PP<, ) • Cardboard parts have been produced from recycled paper which should be disposed of into waste paper collection containers for recycling. - Page 7 • Do not leave the door open, to avoid accidents. • Place knives and other sharp-ended objects in the cutlery basket in blade- down position. • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or competent technican in order to prevent a hazard.
-
Page 8: Recommendations
CHAPTER -2: SAFETY INFORMATION AND RECOMMENDATIONS Recommendations • For energy and water saving, remove coarse residues on your dishes before placing the dishes into the machine. Start your machine after having fully loaded it. • Use the pre-wash programme only whenever necessary. •... -
Page 9: Water Connections
CHAPTER -3: INSTALLING THE MACHINE If the door of the machine does not close properly, check if the machine is stable on the floor on which it stands; if not, adjust the feet and ensure its stable position. Water connection İndoor plumbing must be suitable for installing a dishwasher. -
Page 10: Electrical Connection
CHAPTER -3: INSTALLING THE MACHINE CHAPTER -3: INSTALLING THE MACHINE Warning: When a drain hose longer than 4 m is used, the dishes may remain dirty. In such a case, our company will not accept liability. Electrical connection The grounded plug of your machine should be connected to an grounded outlet supplied by a suitable voltage and current. -
Page 11: Chapter-4: Preparing The Machine For Use
CHAPTER -4: PREPARING THE MACHINE FOR USE Prior to using the machine for the first time • Check whether the electricity and supply water specifications match the values indicated by the installation instructions for the machine. • Remove all packaging materials inside the machine. •... -
Page 12: Adjusting Salt Consumption
CHAPTER -4: PREPARING THE MACHINE FOR USE CHAPTER -4: PREPARING THE MACHINE FOR USE Adjusting salt consumption Water German French British Hardness Level Indicator hardness hardness hardness hardness level level dH level dF level dE L1 is seen on display. 6-11 10-20 7-14... -
Page 13: Combined Detergent
CHAPTER -4: PREPARING THE MACHINE FOR USE CHAPTER -4: PREPARING THE MACHINE FOR USE Combined detergents Combined detergents may include various properties in them. Before using a detergent, please read and follow the instructions well. Generally, combined detergents produce sufficient results only under certain conditions. Points to consider when using these types of products: •... -
Page 14: Chapter-5: Loading Your Dishwasher
The upper basket is for thin and narrow items. You are recommended to use the cutlery basket in order to obtain the best result. To avoid any possible injuries, place long-handle and sharp-pointed knives with their sharp points facing down or horizontally on the baskets. - Page 15 CHAPTER-5: LOADING YOUR DISHWASHER CHAPTER-5: LOADING YOUR DISHWASHER Top basket height adjustment while it is full The basket height adjustment mechanism on the top basket of your machine is designed to let you adjust the height of your top basket upwards or downwards, without removing it from your machine when it is full, and create large spaces at the top or bottom area of your machine as needed.
- Page 16 Because it can easily be taken out of the machine, it allows your dishes to be taken out of the machine along with the basket after washing. Warning: Knives and other sharp objects must be placed horizontally in the cutlery basket. EN-16...
-
Page 17: Alternative Basket Loads
CHAPTER-5: LOADING YOUR DISHWASHER CHAPTER-5: LOADING YOUR DISHWASHER Alternative basket loads Lower Basket Top basket EN-17... - Page 18 CHAPTER-5: LOADING YOUR DISHWASHER CHAPTER-5: LOADING YOUR DISHWASHER Faulty loads ñ Important Note for Test Laboratories For detailed information on performance tests, please contact following address: “dishwasher@standardtest.info” . In your email, please provide the model name and serial number (20 digits) which you can find on the appliance door. EN-18...
-
Page 19: Chapter -6: Programme Descriptions
CHAPTER -6: PROGRAMME DESCRIPTIONS Programme items Programme No Programme Quickwash Quick 30’ 40°C Dual Wash names and 14’ (P1) (P2) (reference) (P3) 60°C (P4) temperatures Type of food Quickwash Coffee, milk, Coffee, milk, tea, cold Soups, sauces, waste to rinse and tea, cold meats, meats, vegetables , not pasta, eggs, pilaf,... - Page 20 CHAPTER -6: PROGRAMME DESCRIPTIONS CHAPTER -6: PROGRAMME DESCRIPTIONS Programme items Programme Programme Express 50’ Hygiene 60°C (P6) Auto Delicate Auto Intensive names and 65°C (P5) 30-50°C(P7) 50-70°C(P8) temperatures Type of food Soups, sauces, Dishes with Automatically adjust the washing time with waste pasta, eggs, dense dirt waiting...
-
Page 21: Chapter -7: Switching On The Machine And Selecting Aprogramme
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME (11) 1.) Power On/Off Touch Button After the Power On/Off touch is pressed, two dashes appear in the program display. Touch the ‘’On/Off touch but- ton’’ with your fingertip for 1 sec to turn the machine on or off. 2.) Program Touch Button Use the Program touch button to select a suitable program for your dishes. -
Page 22: Switching On The Machine
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME 7.) Extra Fast Touch Button This washes the dishes with more pressure, thus shortening the time of the selected program and provides more economical water usage. Note: This option can only be selected at the beginning of the program. 8.) Extra Silent Touch Button Washes the dishes with less pressure, thus provides more sensitive and silent washing. -
Page 23: Changing A Programme
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Changing a programme To change the program while a wash program is going. 1- Open the door and select a new program by pressing the Program touch button (2). 2- After closing the door, the newly selected new program start from the point where the original program reached, but with the new parameters (temperature, cycles) of the new program. - Page 24 CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Compatibility between options Options Half load Tablet Start delay Extra Fast Extra Silent Energy Save Half load Tablet Start delay Extra Fast Extra Silent Energy Save How to change from “ECO MODE” to “NORMAL MODE” for Inner Light option: 1- Open the dishwasher door and press the Power On/Off touch button.
-
Page 25: Chapter-8: Maintenance And Cleaning
CHAPTER -8: MAINTENANCE AND CLEANING Cleaning the machine in regular intervals prolongs the machines service life. Oil and lime may accumulate in the machines washing section. In the event of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, run the machine at high temperature. -
Page 26: Chapter-9: Failure Codes And What To Do İn Case Of Failure
If the lamps “Wash/Dry” and “End” keep flashing • The water overflow alarm is active • Turn off your tap and contact the Sharp help desk. If the control lamps won’t go out after a wash operation Check if the Power On/Off button is released. -
Page 27: Chapter-10: Practical And Useful Information
CHAPTER -10: PRACTICAL AND USEFUL INFORMATION If there are whitish stains on the dishes • insufficient detergent is being used • Rinse aid dosage setting at a very low level. • No special salt is being used despite the high degree of water hardness. •... - Page 28 DISPOSAL OF YOUR OLD MACHINE This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste collection places recycling electrical and electronic equipment. You will contribute to avoid potential negative results regarding environment and human health.
- Page 29 Service & Support Visit Our Website sharphomeappliances.com 52290597 R35...
