Instruction
Manual
It is important that you read through the
following use and care manual thoroughly
to familiarise yourself with the installation
and operation requirements of your
appliance to ensure optimum performance.
Always keep the instructions with your
appliance for future reference.
P R O D U C T

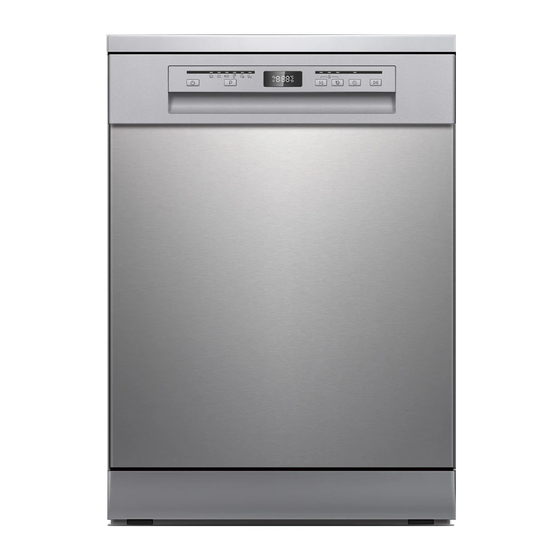

60cm Freestanding
Dishwasher
M O D E L / S
HZDW606CS
C AT E G O R Y N U M B E R
539.20.111
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Häfele HZDW606CS
Summary of Contents for Häfele HZDW606CS
- Page 1 Always keep the instructions with your appliance for future reference. P R O D U C T 60cm Freestanding Dishwasher M O D E L / S HZDW606CS C AT E G O R Y N U M B E R 539.20.111...
- Page 3 Contents Safety Instructions Your Dishwasher Quick Start Guide Control Panel Installation Instructions 11 Preparing & Loading Dishes 12 Loading Recommendations 13 Cutlery Rack Usage Tips 14 Rinse Aid & Detergent 16 Operation Instructions 19 Basket Tips 20 Cleaning & Maintenance 22 Troubleshooting 26 Technical Information...
- Page 4 Safety Instructions Warning! • S ome dishwasher detergents are strongly alkaline. When using your dishwasher , follow the precautions They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away listed below: from the dishwasher when the door is open. • C heck that the detergent powder is empty after • I nstallation and repair can only be carried out by a qualified technician. completion of the wash cycle. • T his appliance is only intended for use indoors only • ...
- Page 5 PRODUCT OVERVIEW IMPORTANT: Your Dishwasher To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Top spray arm Inner pipe Lower spray arm Filter assembly Dispenser upper spray arm Cup rack Cutlery rack Upper basket Lower basket...
- Page 6 Quick Start Guide QUICK USER GUIDE QUICK USER GUIDE QUICK USER GUIDE Please read the corresponding content in the instruction manual for detailed operating method. Please read the corresponding content on the instruction manual for detailed QUICK USER GUIDE QUICK USER GUIDE operating method. STEP 1: Please read the corresponding content on the instruction manual for detailed Please read the corresponding content on the instruction manual for detailed operating method.
- Page 7 Control Panel 1. Power button Press this button to turn on your dishwasher, the screen lights up. When pressing this button, corresponding indicator will be lit. 2. Program Select the appropriate washing program, the selected program indicator will be lit. 3. Half-load When you have about or less than 6 place setting dishware to wash, you can choose this function to save energy and water (It can only be used with Intensive, Normal, ECO, Glass and 90 min). 4. Extra Drying For better drying results (It can only be used with Intensive, Normal, ECO, Glass and 90 min). 5. Child lock This option allows you to lock the buttons on the control panel (except the Power button). To lock or unlock the buttons on the control panel, press and hold the Half-load & Extra drying buttons simultaneously for 3 seconds. When activated, the corresponding indicator will be lit. 6. Delay Press this button to set the delayed hours for washing. You can delay the start of washing up to 24 hours. One press on this button delays the start of washing by one hour. Display Display Display Display Display 7. Start / Pause To start the selected washing program or pause it when the dishwasher is in operation.
- Page 8 Installation Instructions INSTALLATION INSTRUCTION WARNING WARNING: Electrical Shock Hazard WATER SUPPLY AND DRAIN ELECTRICAL SHOCK HAZARD Disconnect electrical power before Cold water connection Disconnect electrical power before installing dishwasher. installing dishwasher. Connect the cold water supply hose to a threaded Failure to do so could result in death or Failure to do so could result in death ...
- Page 9 WARNING: How to drain excess water from hoses A hose that attaches to a sink spray can burst if it is If the sink is 1000 higher from the floor, the excess water installed on the same water line as the dishwasher. in hoses cannot be drained directly into the sink. It will be If your sink has one, it is recommended that the hose be necessary to drain excess water from hoses into a bowl disconnected and the hole plugged.
- Page 10 Position The Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.
- Page 11 Load hollow items such as Preparing & Loading Dishes downwards so that water c Dishes and items of cutlery To avoid damage, glasses s The upper basket is design glasses, coffee and tea cup • Consider buying utensils which are identified as • Long bladed knives stored in an upright position Long bladed knives stored dishwasher-proof.
- Page 12 Loading Recommendations LOADING THE BASKETS LOADING THE BASKETS ACCORDING TO AS/NZS 2007.1: ACCORDING TO AS/NZS 2007.1: Loading the baskets according to AS/NZS 2007.1: 1.Upper basket: 1. UPPER BASKET 1.Upper basket: Number Item Item Number Cups Cups Saucers Saucers Glasses Glasses 3.Cutlery basket: 2. LOWER BASKET Item Number Number Item...
- Page 13 Cutlery Rack Usage Tips Cutlery Rack Used Tips Lift the left basket up, adjust it to lower position, left basket is flat and right basket is sideling. Lift the right basket up, both left and right baskets are flat. Move the right basket from right to left, two basket are overlapping.
- Page 14 with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance. Display Rinse Aid & Detergent When to refill the rinse aid I I n n t t e e n n s s i i v v e e Filling The Rinse Aid Reservoir For heaviest soiled crockery, such as pots, pans, casserole dishes and dishes that have been sitting with dried food on...
- Page 15 Press down Add detergent into the larger cavity (A) for the main wash cycle . For better cleaning result, especially if you have very dirt items, pour a small amount of detergent onto the door. The additional detergent will activate during the pre-wash phase.
- Page 16 PROGRAMMING THE DISHWASHER Operation Instructions Wash Cycle Table WASH CYCLE TABLE The table below shows which programs are best for the levels of food residue The table below shows which programs are best for the levels of food residue on on them and how much detergent is needed.
- Page 17 STARTING A CYCLE WASH ADDING A DISH MID-CYCLE 1. Draw out the lower and upper basket, load the dishes A forgotten dish can be added any time before the and push them back. It is recommended to load the detergent dispenser opens. If this is the case, follow the Forget To Add A Dish? lower basket first, then the upper one. instructions below: 2. Pour in the detergent. 1. Press the Start/Pause button to pause the washing. A forgotten dish can be added any time before the detergent dispenser opens.
- Page 18 THIS PAGE IS INTENTIONALLY LEFT BLANK...
- Page 19 Before using your dishwasher : Basket Tips Inside Outside 1. Loading the basket 2. Fill the rinse aid dispenser (Please check the section 1 of PART Ⅱ: Special Version) 3. Fill in detergent (Please check the section 1 of PART Ⅱ: Special Version) ISHWASHER ADJUSTING THE UPPER BASKET USING YOUR DISHWASHER...
- Page 20 Cleaning & Maintenance EXTERNAL CARE STEP 2: Coarse filter Coarse filter The door and the door seal Clean the door seals regularly with a soft damp cloth to Main filter Main filter Coarse filter Coarse filter remove food deposits. When the dishwasher is being Main filter Main filter loaded, food and drink residues may drip onto the sides Fine filter Open...
- Page 21 SPRAY ARMS CARING FOR THE DISHWASHER It is necessary to clean the spray arms regularly for hard Spray arms Frost precaution water chemicals will clog the spray arm jets and bearings. It is necessary to clean the spray arms regularly for hard water chemicals will clog the Please take frost protection measures on the dishwasher spray arm jets and bearings.
- Page 22 Troubleshooting OPERATION IN CASE OF EMERGENCY In the event of an emergency you should: • Switch off the appliance using the Power button • Switch the clothes dryer off at the power point and unplug the unit. If the power point isn’t accessible, switch the relevant circuit off at your fuse box/switch board. • Call our support team on 1300 334 357. ERROR CODES If there is a malfunction, the dishwasher will display error codes to identify these. Error Code Description Cause Faucets is not opened, or water intake is Longer inlet time restricted, or water pressure is too low. Not reaching required Malfunction of heating element. temperature. Overflow. Some element of dishwasher leaks. Failure of communication Open circuit or break between main PCB with wiring for the communication.
- Page 23 Issue Possible cause What to do Suds in the tub • Wrong detergent. • Use only the special dishwasher detergent to avoid • Spilled rinse-aid. suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 gallon of cold water to the bottom of the dishwasher. Close the dishwasher door, then select any cycle. Initially, the dishwasher will drain out the water. Open the door after draining stage is complete and check if the suds have disappeared. Repeat if necessary. • Always wipe up rinse-aid spills immediately. Stained tub interior Detergent with colourant may Make sure that the detergent has no colourant. have been used.
- Page 24 THIS PAGE IS INTENTIONALLY LEFT BLANK...
- Page 25 FURTHER PROBLEM SOLVING CONTINUED Issue Possible cause What to do The dishes aren’t • Improper loading • Load the dishwasher as suggested in the directions. drying • Too little rinse-aid • Increase the amount of rinse-aid/refill the rinse-aid • Dishes are removed too soon dispenser. • Wrong program has been • Do not empty your dishwasher immediately after selected.
- Page 26 Technical Information TECHNICAL INFORMATION DIMENSIONS Height (H) 845mm Width (W) 598mm Depth (D1) 600mm (with the door closed) Depth (D2) 1175mm (with the door opened 90°) RATING LABEL...
- Page 27 Product Specification TECHNICAL SPECIFICATIONS Häfele Manufacturer Milano Type/Description HZDW606CS Standard place settings Energy efficiency class Water consumption class Standard cleaning cycle Energy consumption of the standard cleaning cycle 0.75 kWh Water consumption of the standard cleaning cycle 1 . liter...
- Page 28 E2447...
