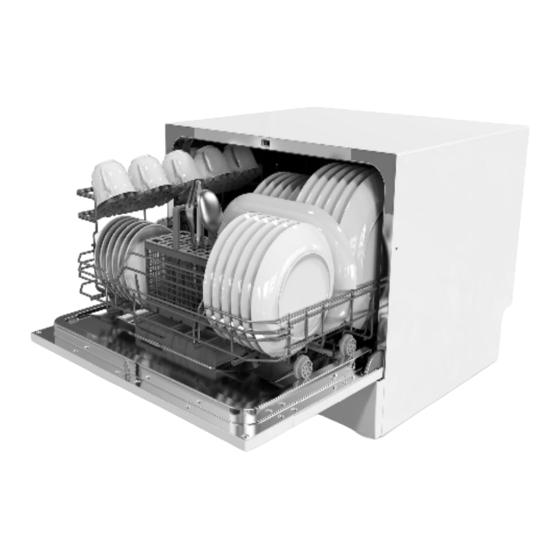

- Page 1 HDW-T50A 538.21.190...
- Page 2 For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Press the Power switch button to switch on the appliance, Open the door. With each wash cycle. Compartment Fill the detergent dispenser For programmes with pre-wash only. (Follow the user instructions!) Check the rinse aid level Electric indicator on control panel (if provided).
-
Page 3: Table Of Contents
Dear Customer, Please carefully read this manual before using the dishwasher, it will help you to use and maintain the Control Panel...........3 dishwasher properly. Dishwasher Features........3 Keep it to refer to it at a later date. Pass it on to any subsequent owner of the appliance. This manual contains sections on safety Instructions, 、... - Page 4 When using your dishwasher, follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.
- Page 5 Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
-
Page 6: Control Panel
Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e.g. sheet wrapping material for polystyrene, e.g. padding material polyoxymethylene, e.g. plastic clips polypropylene, e.g. Salt filler Acrylonitrile Butadiene Styrene, e.g. - Page 7 To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Power Button: To turn on/off the power supply. Water faucet indicator. Salt Warning Light : To be on when the softener Program indicator light needs to be refilled..
- Page 8 If your model have water softener, you may skip this section. Always use salt intended for use with dishwasher. The salt container is located beneath the basket and should be filled as follows: Attention! Only use salt specifically designed for use in dishwashers! All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener.
- Page 9 Step 2: select a certain level of salt consumption Press the Start/pause button to select the proper set according to your local environment, the sets will change in the following sequence: H1->H2->H3->H4->H5->H6; Step 3: Exit the status of salt adjustment Without any operation in five seconds, the machine will exit from set mode, the machine is into standby status There are 6 levels of salt consumption in all.It is recommended to select the level according to below table: Water Hardness level...
- Page 10 Function of Rinse Aid Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying. Attention! Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g.
- Page 11 Normally new pulverised detergent is without phosphate, thus he water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when ° the hardness of water is only 6 dH. If detergents without phosphate were used in case of hard water often white spots appear at dishes and glasses.
- Page 12 Dishwasher detergent is corrosive! Take care to keep it out of reach of children. Proper Use of Detergent Only use detergent specifically made for use in dishwashers. Keep your detergent fresh and dry. Don't put powder detergent into the dispenser until you're ready to wash dishes. Fill in detergent dispenser Fill the detergent dispenser with detergent.
-
Page 13: Attention Before Or After Loading The Dishwasher Baskets
Attention before or after loading the Dishwasher Baskets Attention before or after loading the Dishwasher Baskets (For the best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model.) Scrape off any large food paritcles. - Page 14 Position the dishes and cookware so that they do not get moved by the spray of water. Forks Soup spoons 3 Dessert spoons Teaspoons Knives Serving spoons 7 Gravy ladles Serving forks Do not let any item extend through bottom. Always load sharp utensils with the sharp point down!
- Page 15 ℃ Pre-wash 50 ℃ Wash (70 For heaviest soiled crockery, Rinse 、 and normally soiled pots 3/15g Rinse 、 pans dishes etc with dried 3in1 Intensive ℃ Rinse (70 on soiling. Drying Pre-wash For normally soiled loads, ℃ Wash (60 such as pots, plates, 3/15g Rinse...
- Page 16 Premise: You can modify the washing program, If the dishwasher just worked for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. in this case, the detergent dispenser must be refilled (see the section entitled "...
- Page 17 The filter prevent larger remnants of food or other objects from getting inside the pump. The filter system consists of a coarse filter, a flat (Main filter) and a micro filter (fine filter). Main filter Food and soil particles trapped by this filter are pulverized by a special jet on the spray arm and washed down to drain.
- Page 18 Notes: - Inspect the filters for blocking after every time the dishwasher has been used. - By unscrewing the coarse filter, you can remove the filter system.Remove any food remnants and clean the filters under running water. The entire filter assembly should be cleaned once a week. Cleaning The Filter To clean the coarse filter and the fine filter, use a cleaning brush.
- Page 19 Cleaning the Spray Arms The spray arms can be easily removed for periodic cleaning of the nozzles to prevent possible clogging. Wash them under running water and carefully replace them in their seats, checking that their rotary movement is in no way impeded. Grasp the middle of the spray arm, pull it upwards to remove it.
- Page 20 Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation. For personal safety: Do not use an extension cord or an adapter plug with this appliance.
- Page 21 Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making sure to avoid bending or crimping it. The free end of the hose must be at a height lower than 60cm and must not be immersed into water to avoid the backflow of it.
- Page 22 How to Drain Excess Water From Hoses If the sink is more than1000 mm higher than the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.
- Page 23 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker tripped. appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is closed securely. turned on.
-
Page 24: Wash Cycle Table
The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table . " Not enough detergent Use more detergent, or change your detergent. was dispensed. - Page 25 Height : 438mm Width : 550mm Depth : 500mm Voltage connected Load : see rating label Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 6 Place settings...
