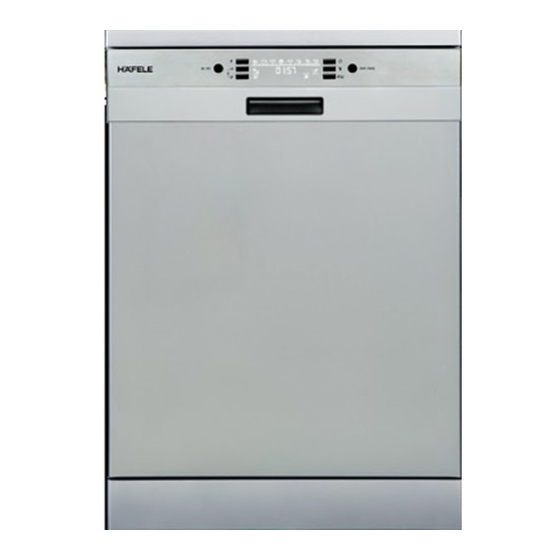

Dishwasher / User Manual
HDW-HI60C

Advertisement

Table of Contents
loading

Related Manuals for Häfele HDW-HI60C

Summary of Contents for Häfele HDW-HI60C

  • Page 1 Dishwasher / User Manual HDW-HI60C...
  • Page 2 Thank you for choosing this product. This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.

  • Page 3: Table Of Contents

    CONTENTS 1.SAFETY INSTRUCTIONS ....................1 1.1. General Safety Warnings ....................1 1.2. Installation Warnings .....................1 1.3. During Use........................2 2.INSTALLATION ......................... 6 2.1. Machine Positioning .....................6 2.2. Water Connection ......................6 2.3. Water Inlet Hose ......................6 2.4. Drain Hose........................6 2.5. Electrical Connection ....................7 2.6.
  • Page 4 8.CLEANING AND MAINTENANCE ................. 22 8.1. Cleaning the Machine and Filters ................22 8.2. Spray Arms ........................22 9.TROUBLESHOOTING ....................23 10.PRACTICAL INFORMATION ..................25 11.THE PRODUCT FICHE ....................26...

  • Page 5: Safety Instructions

    1. SAFETY INSTRUCTIONS 1.1. General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

  • Page 6: Installation Warnings

    1.2. Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine. Unplug the machine before installation. Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.
  • Page 7 • it for other purposes. Commercial use will void the guarantee. Do not stand, sit or place loads on the open door of the dishwasher. Only use detergents and rinse aids produced specifically for dishwashers. Our company is not responsible for any damage that may occur due to misuse.
  • Page 8 be performed by an authorised service company, otherwise the warranty will be void. Before repair work, the machine should be disconnected from the mains. Do not pull the cable to unplug the machine. Switch off the water tap. Operation at a low voltage will cause a decline in performance levels.
  • Page 9 CE Declaration of Conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old machine The symbol on the product or on its packaging indicates that this product may not be treated as household waste.

  • Page 10: Installation

    2. INSTALLATION WARNING: Run water through the new hose before connecting. 2.1. Machine positioning When positioning the machine, place it in WARNING: Connect the hose directly an area where dishes can be easily loaded to the water inlet tap. The pressure and unloaded.

  • Page 11: Electrical Connection

    2.5. Electrical connection WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection. The earthed plug of the machine must be connected to an earthed outlet supplied by suitable voltage and current.

  • Page 12: Technical Specifications

    3. TECHNICAL SPECIFICATIONS 3.2. Technical specifications 15 place Capacity settings Dimensions Height 820-870(mm) Width 598(mm) Depth 570(mm Net weight 41 kg Operating 220-240V 50 voltage / (Hz) frequency Total 10(A) current Total power 1900(W) 3.1. General appearance 1. Upper basket with racks Maximum: 2.

  • Page 13: Before Using The Appliance

    4. BEFORE USING a short washing program to protect your machine against corrosion. THE APPLIANCE 4.1. Preparing your Dishwasher for first use • Check whether the electricity and supply water specifications match the values indicated in the installation instructions for the machine. • Remove all packaging materials inside the machine.

  • Page 14: Test Strip

    4.3. Test Strip Run water Keep the Shake the Wait Set the hardness level of through tap strip in strip. (1min.) your machine. (1min.) water (1sec) NOTE: Level is set 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

  • Page 15: Filling The Detergent

    4.8. Filling the detergent The factory setting is “3”. Push the latch to open the dispenser and If the dishes are not drying properly or are pour in the detergent. spotted, increase the level. If blue stains form on your dishes, decrease level. To do Close the lid and press it until it locks in this, remove the cap and rotate the indicator place.

  • Page 16: Upper Basket

    Upper Basket The upper basket includes a mechanism which enables the height of the basket to be adjusted up (1) or down (2) without having to remove the basket. Hold the basket on both sides and pull it up or push it down, ensuring both sides of the upper basket are in the same position.
  • Page 17 Four Folding Racks basket, after washing. (15 pc) The folding racks allow easier placement of larger items, such as pots and pans. Each section can be folded separately. The racks can be raised up, or folded down, as shown in the images. The upper cutlery basket is composed of two pieces that can be separately removed.

  • Page 18: Alternative Basket Loads

    5.3. Alternative Basket Loads Lower Basket Top basket Incorrect loads EN - 14...

  • Page 19: Programme Table

    6. PROGRAMME TABLE Detergent A: 5cm³ Duration Programme Description B1: 15cm³ (min) B2: 25cm³ Fast programme intended for recently used dishes which are lightly Mini 14’ soiled. Suitable for 4 place settings. Automatic programme for delicate dishes which are not heavily Auto Delicate 79-91 soiled.

  • Page 20: The Control Panel

    7.THE CONTROL PANEL 18. Energy Save 19. Extra Silent symbol 3 4 5 6 7 8 Starting the Machine and Selecting a Programme Press the Power On/Off button (1), the Programme display (9) will show the most recently selected programme. Select the programme most suitable for your dishes using the Programme button (4).

  • Page 21: Cancelling A Programme

    programme. 7.2.Cancelling a Programme Press the Start/Standby button (2) to start Follow the steps below to cancel a the selected programme. programme while in operation. The display (14) will show the symbols • Press and hold the Start/Standby button corresponding to the status of the (2) for 3 seconds.

  • Page 22: Cleaning And Maintenance

    8. CLEANING AND the filters. Replace the filter insert, and MAINTENANCE rotate it clockwise (4). • Never use your Dishwasher without a Cleaning your Dishwasher is important filter. to maintain the machine’s service life. • Incorrect fitting of the filter will reduce Oil and lime may build up in your the washing effectiveness.

  • Page 23: Troubleshooting

    9. TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The programme does not start.
  • Page 24 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.

  • Page 25: Practical Information

    AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE POSSIBLE FAULT WHAT TO DO CODE Make sure the water inlet tap is open and water is flowing Separate the inlet hose from the tap and clean the filter of Insufficient water the hose.

  • Page 26: The Product Fiche

    11. THE PRODUCT FICHE Supplier's trade mark HAFELE Supplier's model HDW-HI60C Capacity of dishwasher The energy efficiency class A+++ Annual energy consumption in kWh per year (AEc) ( 280 Cycle )* Energy consumption (Et) (kWh per cycle) 0,84 Off-mode power consumption (W) (Po) 0,10 Left-on mode power consumption (W) (Pı)
  • Page 27 55555555...
