15 models - 15 kW
16.2 kW (Condensing)
18 models - 18 kW
19.4 kW (Condensing)
24 models - 24 kW
25.9 kW (Condensing)
28 models - 28 kW
30.3 kW (Condensing)
32 models - 32 kW
34.4 kW (Condensing)
3. It is designed for use on either Natural Gas (G20), or Propane (G31) as indicated by the suffix LPG in the model name. Two Propane models
are available, the Baxi Megaflo System 24 HE IE LPG & 28 HE IE LPG
4. The boiler incorporates a circulating pump and expansion vessel. It is suitable for use only on fully pumped sealed systems.

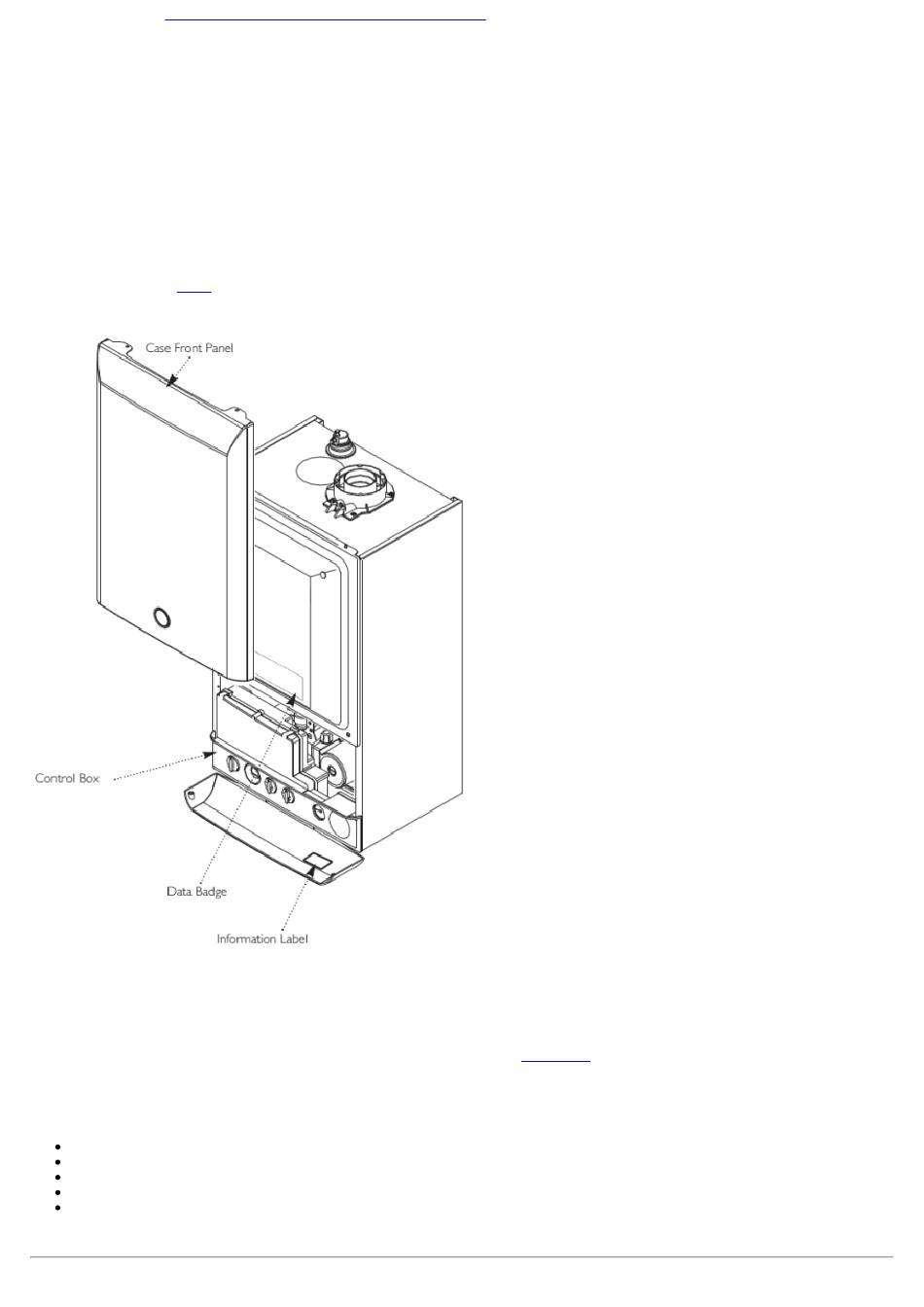

5. The boiler data badge gives details of the model and serial number, and is situated on the inner door panel. It is visible when the case front
panel is removed (Fig.
Fig. 1
6. The boiler model name and serial number are also shown on the information label on the rear of the lower door panel. This is for user
reference.
7. The boiler is intended to be installed in residential / commercial / light industrial E.M.C. environments on a governed meter supply only.
8. The boiler must be installed with one of the purpose designed flues such as the standard horizontal telescopic flue kit, part no. 5118069.
9. All systems must be thoroughly flushed and treated with inhibitor (see
1.2 Contents of Pack
The pack contains:-
Boiler
Wall Plate (including taps)
Set of Pipe Connections
Template & 'Quick Fit' Guide
Literature Pack
page 6
1).
section 6.1).
